P3.91-7.81
PRT
P3.91-7.8

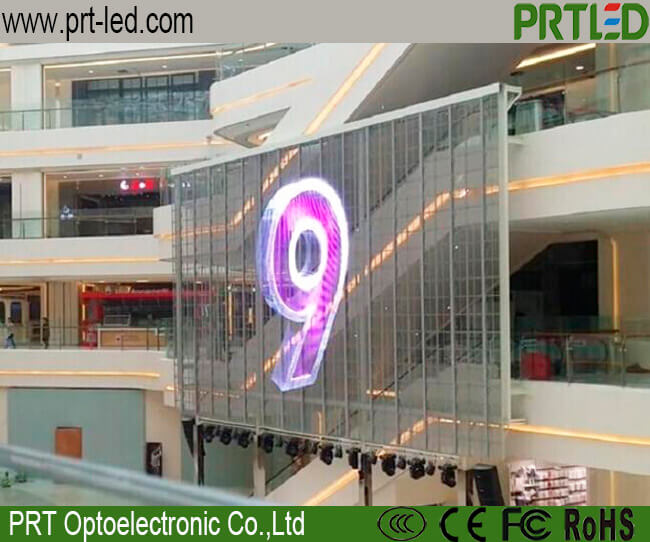

Full Color P3.9 P7.8 Transparent led video wall for shopping mall,station,airport commercial advertising
PRODUCT FEATURES
1. Screen size can be customized with no back beams,unique outlooking
2. Super slim thickness,the most thickness is only 65 mm
3. Lightweight, only with 15 kgs/sq.m
4. High transparency, up 70%,good light transmission
5. Ultra power saving, only with 1/3 power consumption of traditional screen
6. Strong and good transparent PC material with long life span
7. Controlled with wifi,4G/3G or USB,also can connect with computer to update display contents
8. Seamless spliced with evenness outlooking,look as a whole completed glass screen
9. Easy to combine small modules together and dismantle one by one
P3.9 SMD1921 Transparent LED Glass Screen Specification | |
Pixel pitch | 3.91mm x 7.81mm |
Pixel Configuration | 1R1G1B |
LED component | SMD1921 |
Size of module | 500mm x 62.5mm/500x130mm |
Resolution of module | 128 x 8dots/128 x 16dots |
Size of panel | 500mm x 1000mm /1000mm x1000 mm |
Thickness | 31mm |
Resolution of cabinet | 128x128 dots/ 256x128ots |
Material of Cabinet | Aluminum + PC |
Weight of Cabinet | 15kgs/sq.m |
Brightness | >2500cd/sq.m, 3500cd/sq.m |
Transparency | >75% |
Density | 32768dots/sq.m |
Best viewing angle | 140 /140 |
Pixel Configuration | 1R1G1B |
Best viewing distance | 5-100M |
Maximum power consumption | 450W/sq.m |
Average power consumption | 200W/sq.m |
Driving method | 1/16 scan, 1/8 scan |
Control method | Asynchronization/Synchronization |
Gray scale | 65536 |
Colors | 256*256*256 |
Color temperature | 3200-9300k |
Uniformity | 97% |
Working voltage | AC110V~240V±10% |
Working temperature | —20℃~+50℃±10% |
Working humidity | 10％ ～ 90％ |
MTBF | 10,000 hours |
Frame frequence | 47~63Hz |
Refresh frequence | >1920Hz |
Installation method | Hanging or stacking |
IP grade | IP45 |
Life Span | >50,000 hours |
Data transafer method | RJ45/DVI |
Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; |
Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
