Pixel 3mm
Video Display
1R,1G,1B
1/16 Scan
LED Video Display
IP43
576X576mm
192X192mm
SMD2121 Black
Flight Case or Wooden Case
Shenzhen
Full Color
3mm
111111dots/Sq.M
Win XP,Win 2000,Win7/8
Stage Performance, Advertising, Shopping Guide
CE, RoHS, CCC, FCC
Steel Iron/Aluminum
64X64dots
PRT
CE, FCC. ROHS, 3C
8528591090

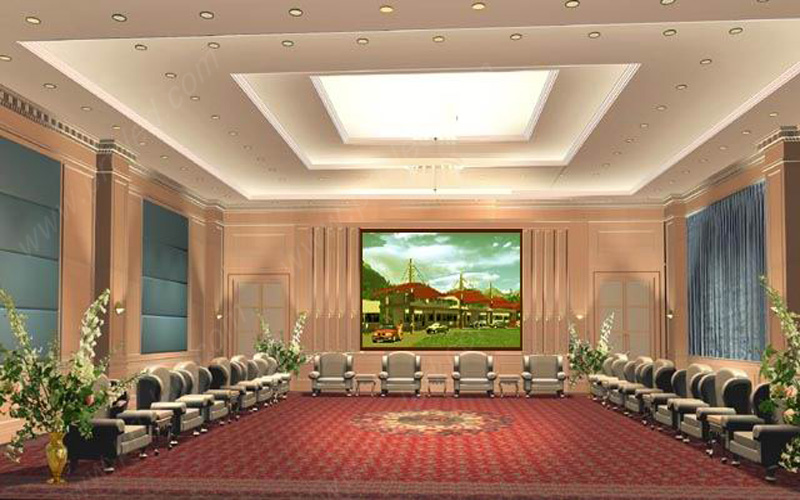

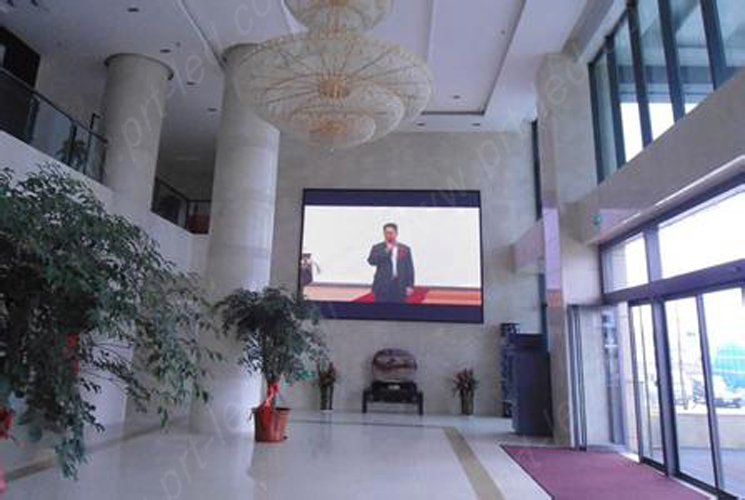

P3 full color led wall for indoor permanent installation with iron cabinet, or rental with die-casting aluminum cabients,stability and long life span,high definition,high contrast and good uniformity
Product Features:
1. SMD2121 black leds ensure the wide view angle,and high contrast, good performance
2. Stell Iron keep strong configuration,good stability,pulling resistance,shockproof, automatic heat dissipation, prolong the lifespan to more than 10 years
3. Quick and accurate installation location type, suitable for many different installation environment
4.With fast locks and aviation plugs,easy to install and dismantle,save much time and labour cost
5.Seamless splicing,good uniformity,good performance
6.Large scale production, mature processing technology confirm the good and stability quality
7.Accept customized to meet different request
Please see more pictures for your reference
customized cabinet configuration design
normal cabinet design with back doors
| P3 SMD2121 Indoor full Color LED Screen Specification | |
| Pixel pitch | 3mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD2121 black |
| Size of module | 192mm x 192mm |
| Resolution of module | 64x64 |
| Size of cabinet | 576mm x 576mm or 768x768mm |
| Resolution of cabinet | 192x192 |
| Material of Cabinet | Steel Iron or Aluminum |
| Weight of Cabinet | 15KGS/25kgs |
| Brightness | >1200cd/sq.m |
| Density | 111111dots/sq.m |
| Best viewing angle | 140 /140 |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | 3-50M |
| Maximum power consumption | 1200W/sq.m |
| Average power consumption | 640W/sq.m |
| Driving method | 1/16 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >3000Hz |
| IP grade | IP31 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
| Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
