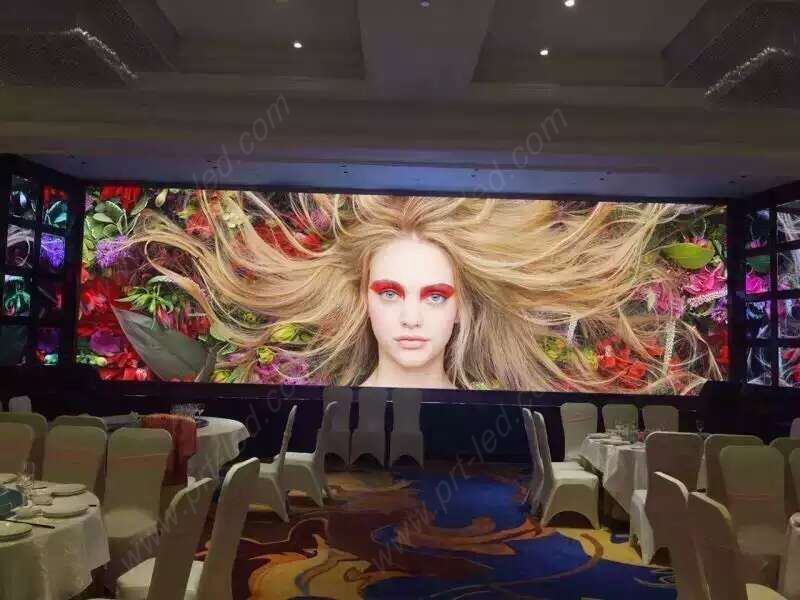

P1.56 Indoor LED Display panel with Full Color for indoor with cabinet size of 400x300mm die-casting Aluminum, seamless spliced,high contrast, perfect vision effect, like TV, wide used in TV studio, Concert, Mornitor room,supervise control
Specifications:
1. Ultra HD: up 409600pixels per square meters,like as HD TV screen with full color
2.Ultra slim cabinet: the thickness is only 65mm,with fashion configuration design
3.High strength: made with high quality Die-casting Aluminum cabinet, enhance the heat dissipation,and extend the cabinet's working life
4.Seamless splice: no space/gap between the cabinet,ensure the good informance
5.High refresh rate: with advanced technology and reliable parts ensure the high gray scale and high refresh rate
Advantages:
1.Support seamless splice for any sizes
2.Adjustable brightness, support 16Bit high gray scale,for images to be brightness and perfect details
3.High contrast ratio,fast response speed,high refresh rate, meet the high speed image display,and support 3D display
4.High efficiency heat dissipation, no fans no noise
5.Wide view angle, up to 140 degree, with same effection and no brightness difference
6.Long life span to 100000Hours, low brightness attenuation,good uniformity
7.With 2500-10000K color temperature for choosing, can meet the different request according to the different area, especially for some special request application,like as studio,virtual simulation,Medical Display etc, and popular used in monitor room,meeting room,Command room,message display etc.
| DESCRIPTION: | PH1.56 Indoor | ||
| No. | Parameter | Specification | |
| 1 | Pixel Pitch(mm) | 1.56 | |
| 2 | Pixel Density | 409600dots/m⊃2; | |
| 3 | LED Type | SMD1010 (black) | |
| 4 | LED Wave Length(nm) | R:620-625/G:517.5-520/B:465-467.5 | |
| 5 | LED Luminous Intensity(mcd) | R:100~130/G:120~156/B:20~26 | |
| 6 | Viewing Angle | 140° | |
| 7 | Brightness | 1000cd/m⊃2; | |
| 8 | Drive Method | 1/32 scan | |
| 9 | Driving IC | MBI5153 | |
| 10 | Color Depth | 13bit | |
| 11 | Refresh Rate(Hz) | 2000 | |
| 12 | Frame Rate(Hz) | ≥60 | |
| 13 | Brightness Adjustment | Manual/Auto/Program | |
| 14 | Module Size(mm) | 200×150 | |
| 15 | Module Resolution(dots) | 134×100 | |
| 16 | Cabinet Size(mm) | 400×300 | |
| 17 | Cabinet Display Resolution(dots) | 268×200 | |
| 18 | Cabinet Type and Material | Die-casting Aluminum | |
| 19 | Cabinet Weight(Kg) | 5.6kg | |
| 20 | Power Supply | 5.0V 60A | |
| 21 | Voltage(V) | AC 220V | |
| 22 | Avg. Power Consumption | 400W/m2 | |
| 23 | Max. Power Consumption | 900W/m2 | |
| 24 | Service Access | Back maintenance | |
| 25 | IP Grade | IP31 | |
| 26 | Operating Temp/Humidity | -20ºC~50ºC, 10~90%RH | |
| 27 | Storage Temp/Humidity | -40ºC~60ºC, 10~90%RH | |
| 28 | Lifetime(Normal Temp) | ≥50000H | |
| 29 | System Control | Nova/Linsn | |
| 30 | Compliant Standard | CCC,CE,RoHs | |
