Synchronous Broadcasting LED Score Board for Stadium Perimeter (P8, P10, P16)

Quantity:
  • P8
  • Indoor/Outdoor
  • as Request
  • 15625dots Per Sqm
  • Big
  • Iron/Aluminum
  • 256*128mm/320*160mm
  • Aluminum or Iron
  • PRT
  • CE, FCC, Rohs
  • 8528591090
  • Electronic
  • All Matches
  • IP65
  • Mount
  • 8mm
  • SMD3535
  • 32X16 Dots/40X20dots
  • 7000nits
  • Wooden Case
  • Shenzhen China
Outdoor P8 LED display score board for sport stadium perimeter to show the score of matches synchronously,also can for commercial advertising with images and videos

Product Features:

1. SMD led encapsulation technology confirm the wide view angle and good uniformity

2. High quality leds with high contrast,high brightness up to 6800nits,long view distance

3. Good Waterproof IP65, can be used under heavy rain weather and humid area

4. Strong die-casting or iron cabinets confirm strong durable configuration and stability,
equiped with fast lock and aviation plugs, convenient to install and dismantle,can be for rental use and permanent fixed install

5. High quality, meet the request of international standard of CE, FCC,RoHs

6. Long life span >100000hours, and 3 year warranty

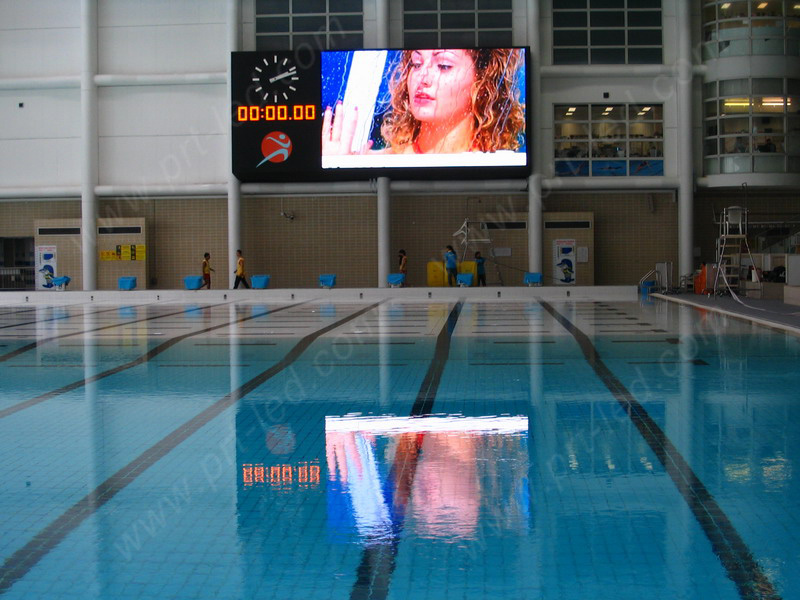

More pictures for reference:

Synchronous Broadcasting LED Score Board for Stadium Perimeter (P8, P10, P16)
Synchronous Broadcasting LED Score Board for Stadium Perimeter (P8, P10, P16)

Synchronous Broadcasting LED Score Board for Stadium Perimeter (P8, P10, P16)


Synchronous Broadcasting LED Score Board for Stadium Perimeter (P8, P10, P16)
Synchronous Broadcasting LED Score Board for Stadium Perimeter (P8, P10, P16)



P8 SMD Outdoor full Color LED Screen Specification
Pixel pitch 8mm
Size of module 320mm χ 160mm
Resolution of module 40 X 20dots
Size of cabinet 960mm X 960mm
Resolution of cabinet 120*120
Weight of Cabinet 40kgs for iron panel
Brightness >6800cd/sq.m
Density 15625dots/sq.m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 8-80M
Maximum power consumption <800W/sq.m
Driving method 1/5 scan
Control method Synchronization
Gray scale 16 bits
Colors 16.7million
Color temperature 6500k
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
MTBF >10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1800Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Systems operating platform WINDOWS(WIN95,WIN2000,WINXP,WIN7), and interfaces for secondary development
