Slim 640*640mm Die-Casting P10mm LED Outdoor Panels for Outdoor Rental

Quantity:
  • P10
  • IP65
  • 1R, 1G, 1B
  • 300W / m⊃2;
  • 1/4 Scan
  • Advertising,Stage Performance,Rental
  • SMD3535
  • 32X16dots
  • PRT
  • CE, FCC. ROHS, 3C
  • 8528591090
  • Full Color
  • 10mm
  • Video Display
  • 10000 dot / m⊃2;
  • LED Video Display
  • CE, RoHS, CCC, FCC
  • 320X160mm
  • 640X640mm
  • Flight Case or as Required
  • Shenzhen China
P10 outdoor full color led display for outdoor rental with die-casting panels

1.SMD led encapsulation confirm wide view angle up 140degree for vertical and horizontal

2.Slim Aluminum cabinet and small size ensure light weight, less than 12kgs each panel

3.Good waterproof IP65 for front and IP54 for rear,suit for outdoor rain weather

4. Rental cabinet design with fast locks and aviation plugs,easy to install and dismantle

5.Brightness up to 6000nits,and can be adjusted automatically according to different surrondings,

6.Packed with flight case for transport conveniently and good protection


We have several design panels with same size 640x640mm for selection based on different request from customers,and with a little different costs between them,also suit for outdoor P5,P6.67,P8.

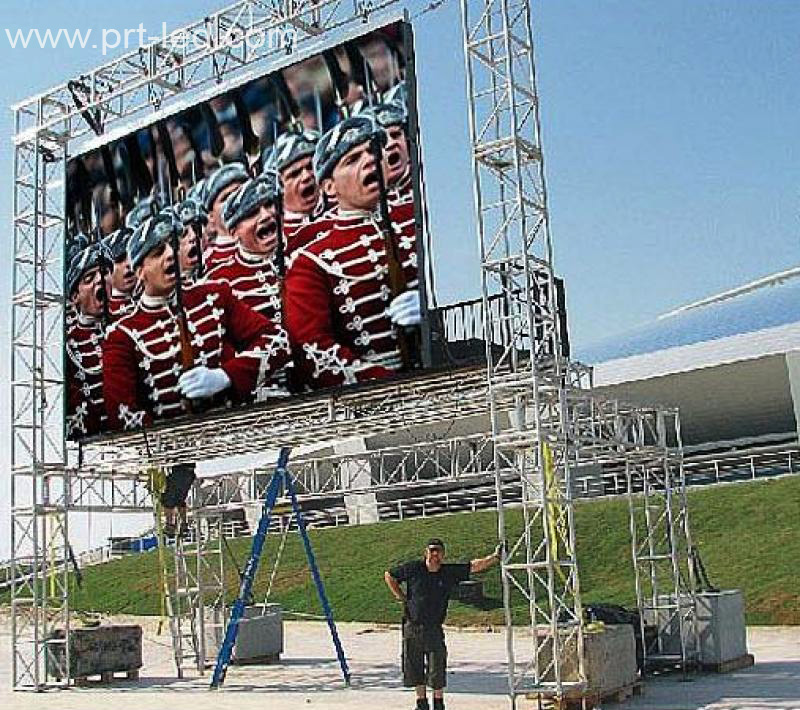

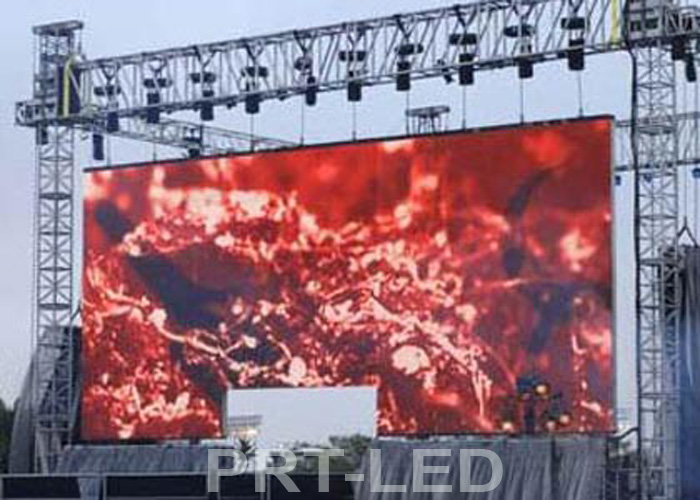

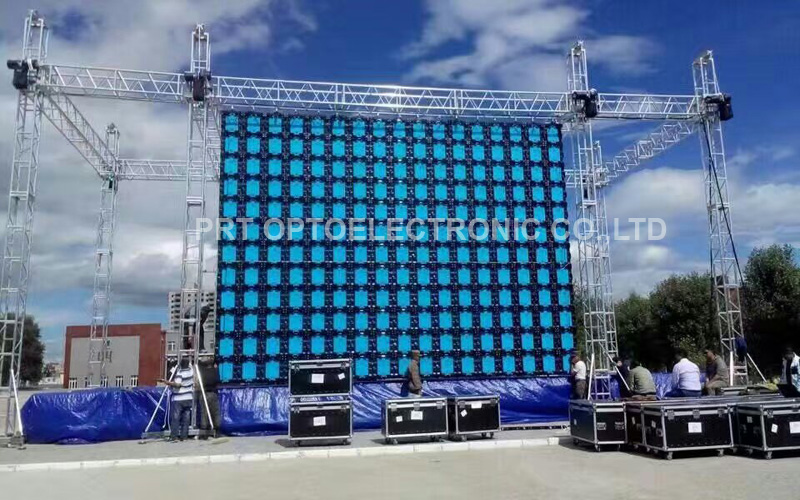

Please see more panels as following:

Slim 640*640mm Die-Casting P10mm LED Outdoor Panels for Outdoor Rental

Slim 640*640mm Die-Casting P10mm LED Outdoor Panels for Outdoor Rental Slim 640*640mm Die-Casting P10mm LED Outdoor Panels for Outdoor Rental
Slim 640*640mm Die-Casting P10mm LED Outdoor Panels for Outdoor Rental Slim 640*640mm Die-Casting P10mm LED Outdoor Panels for Outdoor Rental Slim 640*640mm Die-Casting P10mm LED Outdoor Panels for Outdoor Rental


P10mm Outdoor Rental full Color LED Screen Specification
Pixel pitch 10mm
Pixel Configuration 1R1G1B
LED component SMD3535
Size of module 320mm x 160mm
Resolution of module 32x16
Size of cabinet 640mm x 640mm x 65mm
Resolution of cabinet 64x64 dots
Material of Cabinet  Die-casting Aluminum/magnesium
Weight of Cabinet 13KGS/8kgs
Brightness >6000cd/sq.m
Density 10000dots/sq.m
Best viewing angle 140° /140°
Best viewing distance 10-100M
Maximum power consumption <800W/sq.m
Average power consumption <300W/sq.m
Driving method 1/2 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
