High Brightness Advertising Screen LED Video Wall of Outdoor SMD3535 P6, P5

Quantity:



Inquire Add to Basket

Model NO.:
P6
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Average Power Consumption:
350W / m⊃2;
Scanning Mode:
1/8 Scan
Application:
Advertising, Stage Performance, Rental
LED Encapsulation:
SMD3535
Module Resolution:
32X32dots
Trademark:
PRT
Specification:
CE, FCC. ROHS, 3C
HS Code:
8528591090
Tube Chip Color:
Full Color
Pixel Pitch:
6mm
Display Function:
Video Display
Pixel Density:
27777dots/Sq.M
Display Type:
LED Video Display
Certification:
CE, RoHS, CCC
Module Size:
192X192mm
Cabinet Size:
768X768mm
Transport Package:
Flight Case or Wooden Case
Origin:
Shenzhen China

Product Description

HD P6 Full Color LED Video Wall with high brightness and good waterproof for outdoor advertising

Product Features:

1.SMD3535 led encapsulation confirm wide view angle,good uniformity and lower power consumption

2. High brightness up to 6000nits per square meter, Good waterproof IP65,long life span up to 100000hours

3. High pixel density, High definition,Good uniformity,perfect vision effect

4.With Rental design Cabinet with fast locks and aviation plugs,easy and quick to assemble without tools in short time

5.Low power consumption, low noise created, low transportation costs

6.Can be with fixed installation or movalbe to meet different requests, for advertising,live broadcast, live meeting, banquet, party,stage or public etc, to display the contents what you want, connect with PC computer or network, also can remoto control with asynchronous system.

7.Widely used for commercial advertising,promotion display, stage background screen,mobile led video wall. traffic sign board,sports led display etc.

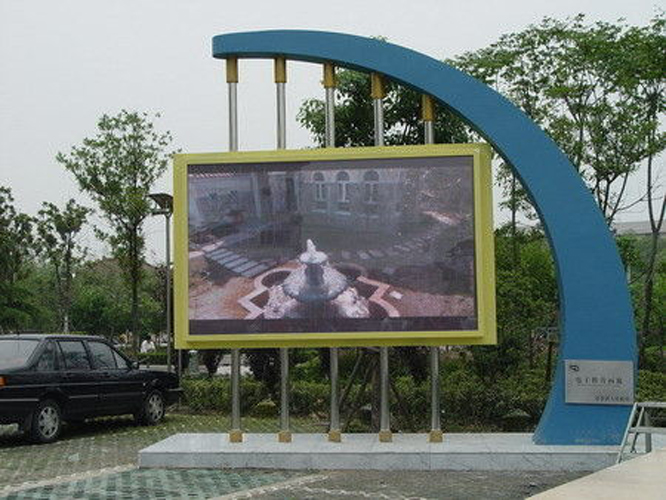

More pictures for reference:

High Brightness Advertising Screen LED Video Wall of Outdoor SMD3535 P6, P5

High Brightness Advertising Screen LED Video Wall of Outdoor SMD3535 P6, P5

P6 SMD3535 Outdoor full Color LED Screen Specification
Pixel pitch	6mm
Pixel Configuration	1R1G1B
LED component	SMD3535
Size of module	192x192mm
Resolution of module	64 x 64
Size of cabinet	768mm x 768mm x 150mm / 960 x 960x150mm
Resolution of cabinet	128x128/ 160x160
Material of Cabinet	Iron/ Aluminum
Weight of Cabinet	40kgs for iron cabinet
Brightness	>6000cd/m2
Density	27777dots/m2
Best viewing angle	140 /140
Pixel Configuration	1R1G1B
Best viewing distance	5-60M
Maximum power consumption	900W/m2
Average power consumption	560W/m2
Driving method	1/8 scan
Control method	Synchronization
Gray scale	65536
Colors	256256256
Color temperature	3200-9300k
Uniformity	97%
Working voltage	AC220V/110V±10%
Working temperature	-20ºC~+50ºC±10%
Working humidity	10% ~ 90%
MTBF	10,000 hours
Frame frequence	50/60Hz
Refresh frequence	>1920Hz
IP grade	IP65
Life Span	100,000 hours
Data transafer method	RJ45
Pratical standard	CCC TUV-CE ETL etc.
Effectivce Communication Distance(without relay)	Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM
Accepting signal with video processor	PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform	WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
