Outdoor Full Color Digital Display LED Billboard with 3.8V P10 Modules

Quantity:
  • P10

  • IP65

  • 1R, 1G, 1B

  • 100W

  • 1/4 Scan

  • Advertising, Stage Performance, Rental

  • DIP 346 (Epsitar)

  • >7500nits

  • PRT

  • CE, FCC. ROHS, 3C

  • 8528591090

  • Full Color

  • 10mm

  • Video Display

  • 10000 dot / m⊃2;

  • LED Video Display

  • CE, RoHS, CCC

  • 160X160mm

  • 3.8V

  • Wooden Case or as Required

  • Shenzhen China

2016 new products! P10 low power led display screen, above 50% energy-saving than traditional P10,
but still keep high brightness up to 7500nits,and competitive price

1.Lower power consumption,only need 3.8V and 7.65W for single module,the average power consumption is only 100W/sq.m and 350W/sq.m for max power consumption for screen,that is to say, a panel of 960x960mm only need two power supply

2.DIP led encapsulation confirm high brightness and good heat dissipation,meet to any weather

3.Good waterproof IP65 anti-corrosion,antifogging,long life span>100000Hours

4.Made with high quality Epistar leds keep high quality, low lighting decay, energy saving

5. Brightness can be adjusted automatically according to different surrondings,can be set to open and close the screen on fixed automatically

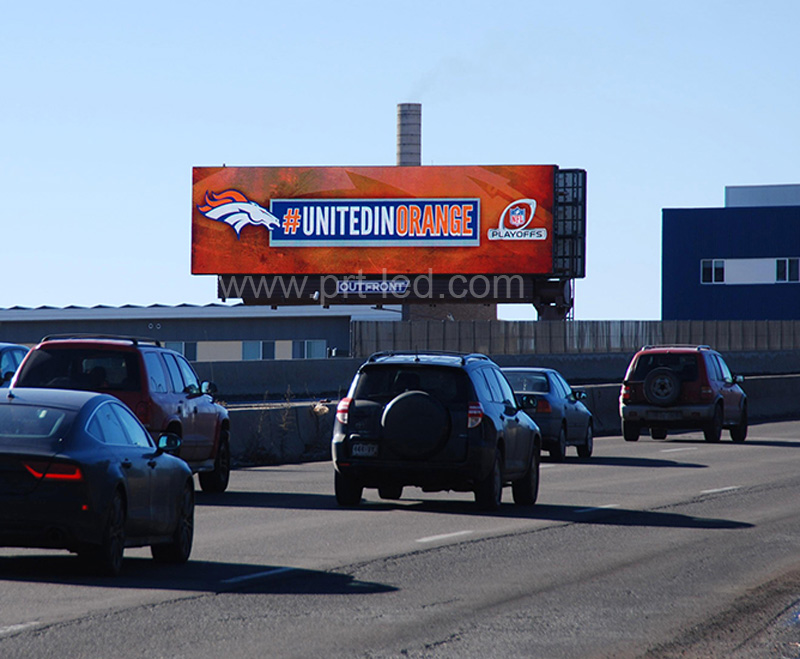

6. Can be fixed on the wall, on the street, on top of building,or be hung for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, antimation etc, connect with PC computer or network, also can remoto control with asynchronous system,like USB,wifi,3G/4G

7.Cabinet material can be choosed with aluminum or iron, and size can be customized according different projects

8.Widely used for mobile led display screen and rental led video wall to save energy and lighter weight


Parameters are only for reference,please contact us for details!
P10 Outdoor full Color LED Screen Specification
Pixel pitch 10mm
Pixel Configuration 1R1G1B
LED component DIP346(Epistar)
Size of module 160mm x 160mm
Resolution of module 16x16dots
Size of cabinet 960mmx 960mm x150mm
Resolution of cabinet 96x96dots
Material of Cabinet Iron with back doors
Weight of Cabinet <60KGS
Brightness >7500cd/sq.m
Density 10000dots/sq.m
Best viewing angle 110° /50°
Best viewing distance 10-150M
Maximum power consumption <350W/sq.m
Average power consumption <100W/sq.m
Driving method 1/4 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1800Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
