Cheap Cost Indoor P7.62 Full Color LED Digital Display with Slim Panels

Quantity:
  • P7.62

  • Video Display

  • 1R,1G,1B

  • 1/8 Scan

  • LED Video Display

  • IP43

  • 732X732mm

  • 244X122mm

  • PRT

  • CE, FCC. ROHS, 3C

  • 8528591090

  • Full Color

  • 7.62mm

  • 17,222 dots / m²

  • Win XP,Win 2000,Win7/8

  • Stage Performance, Advertising, Shopping Guide

  • CE, RoHS, CCC, FCC

  • Iron/Aluminum

  • 32X16dots

  • Flight Case or Wooden Case

  • Shenzhen

P7.62 Full Color LED Video Wall for Event/show Stage Background with slim and light weight panel without backdoor for indoor permanent fixed installation,cheap cost

Description:

1. Made with iron or aluminum alloy cabinets without backdoors wiht very light weight and cheaper cost,

2. Cabinet size of 732× 732× 60mm,easy to move and portable

3. Seamless splicing,No funs,no noise and good heat dissipation

5. High brightness, good display performance and cost performance

7. 2 years quality warranty,meet the international standards of CE, FCC, Rohs,CCC etc

8. Packed with flightcase or wooden case as request

9. Widely used in public advertising, theatre, live show, live meeting, banquet, stage background etc.


Please check more photoes as following:

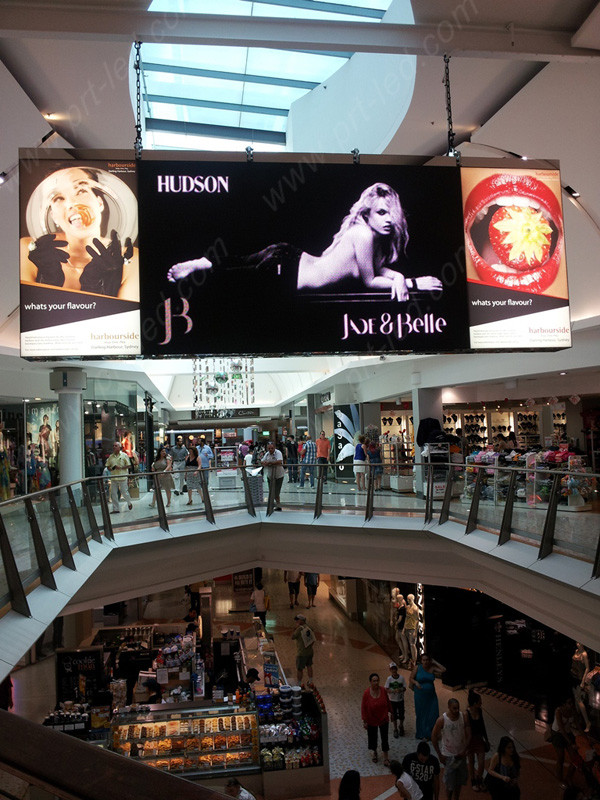

Cheap Cost Indoor P7.62 Full Color LED Digital Display with Slim Panels
Cheap Cost Indoor P7.62 Full Color LED Digital Display with Slim Panels
Cheap Cost Indoor P7.62 Full Color LED Digital Display with Slim Panels

Parameter for reference as following:
P7.62 SMD3528 Indoor full Color LED Screen Specification
Pixel pitch 7.62mm
Pixel Configuration 1R1G1B
LED component SMD3528
Size of module 244mm x 122mm
Resolution of module 32x16dots
Size of cabinet 732mm x 732mm x 80mm
Resolution of cabinet 96 x96dots
Material of Cabinet Iron or Aluminum alloy
Weight of Cabinet 15KGS
Brightness >1800cd/sq.m
Density 17222dots/sq.m
Best viewing angle 140° /140°
Pixel Configuration 1R1G1B
Best viewing distance 6-80M
Maximum power consumption 800W/sq.m
Average power consumption 300W/sq.m
Driving method 1/8 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1200Hz
IP grade IP31
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
