High Brightness Full Color Outdoor Advertising LED Display Screen for Roadside (P5, P6)

Quantity:
  • P5

  • IP65

  • 1R, 1G, 1B

  • 300W / m²

  • 1/8 Scan

  • Advertising

  • SMD2727

  • Iron/Aluminum

  • PRT

  • CE, FCC. ROHS, 3C

  • 8528591090

  • Full Color

  • 5mm

  • Video Display

  • 40000dots/Sq.M

  • LED Video Display

  • CE, RoHS, CCC, FCC

  • 160X160mm

  • IP65

  • Wooden Case or as Required

  • Shenzhen China

P5 Full Color advertising led screen for outdoor road side/highway,station with SMD2727 lamp ensure high contrast,high definition and good uniformity, high brightness and good waterproof. assembled with strong iron cabinet for permanent install and long life span

Product features:


1.With the best LED industrial waterproof and ultraviolet-proof SMD in 1 technology, confirm the super wide view angle and better enness surface and stability

2.RGB high gray processing to show any real color

3.Support point correction function, ensure the consistency of the color and the brightness during the usage

4.Accurate,shortcut flexile installation, can be applied to any different environment

5.With protection grade of IP65,suit to outdoor raining weather

6.With professional aviation plugs as connector,ensure the quality and safety

7. Complete series, accept customized, cabinet sizes can be customized as different request from projects

Product detail pictures for reference:

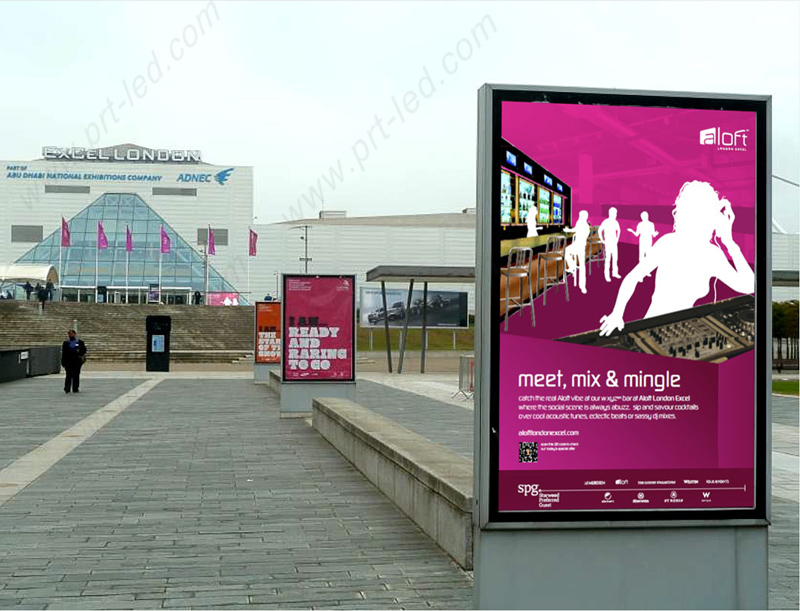

High Brightness Full Color Outdoor Advertising LED Display Screen for Roadside (P5, P6)

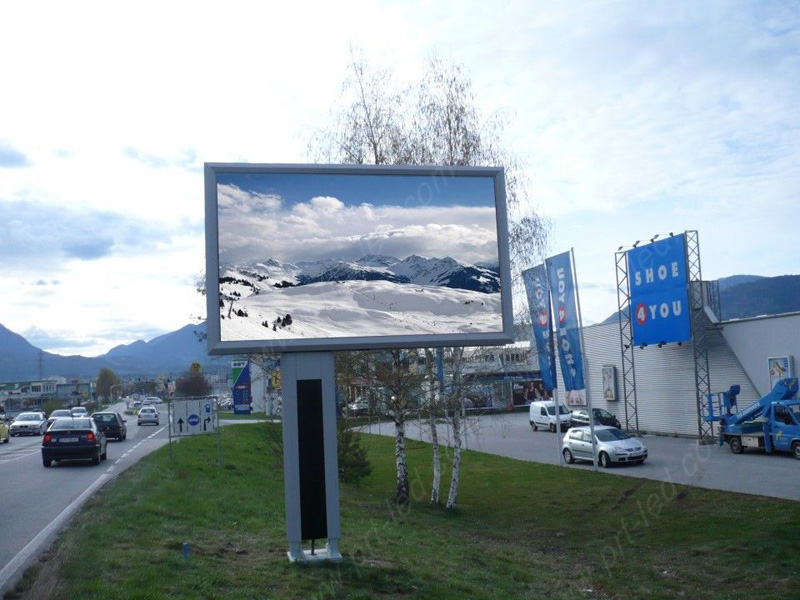

High Brightness Full Color Outdoor Advertising LED Display Screen for Roadside (P5, P6)
High Brightness Full Color Outdoor Advertising LED Display Screen for Roadside (P5, P6)
High Brightness Full Color Outdoor Advertising LED Display Screen for Roadside (P5, P6)

High Brightness Full Color Outdoor Advertising LED Display Screen for Roadside (P5, P6)


Related parameters for standard, if you have special request,please contact us!
P5 Outdoor full Color LED Screen Specification
Pixel pitch 5mm
Pixel Configuration 1R1G1B
LED component SMD2727
Size of module 160mm x 160mm
Resolution of module 32x32
Size of cabinet 800mm x 800mm x 150mm
Resolution of cabinet 160 x160
Material of Cabinet Iron/Aluminum
Weight of Cabinet 18.5KGS
Brightness >6000cd/sq.m
Density 27777dots/sq.m
Best viewing angle 140 /140
Best viewing distance 6-100M
Maximum power consumption <1200W/sq.m
Average power consumption <400W/sq.m
Driving method 1/8 scan
Control method Synchronization
Gray scale 65536
Colors 256 x 256 x 256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >2000Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
