Die-Casting P1.923 Indoor Full Color LED Display Panel with Front Access

P1.923 Indoor Full Color LED Display Panel with Front Access
Easy and quick to move the modules from panels
Strong configuration and light weight
Wide view angle and perfect display vision
Quantity:
  • P1.923

  • Video Display

  • 1R,1G,1B

  • 1/26 Scan

  • LED Video Display

  • IP43

  • Die-Casting Aluminum

  • 400X300mm

  • PRT

  • CE, FCC. ROHS, 3C

  • 8528591090

  • Full Color

  • 270400dots/Sq.M

  • Win XP,Win 2000.Win7 Nt

  • Stage Performance, Advertising, Shopping Guide

  • CE, RoHS, CCC, ETL

  • Black SMD1010

  • 200X300mm

  • Flight Case or Wooden Case

  • Shenzhen

Ultra HD P1.923 full color led display screen for indoor rental or permanent install, high contrast ratio,good performance, Ultra high definition and front maintenance available,new design on the market

Product Features:

1. Strong Aluminum material cabinet,keep strong configuration

2. Small panel size of 400×300mm for 16:9, can be used as a TV screen singly,perfect vision

3. High definition,high refresh rate,high gray scale,keep the good performance

4. Seamless splicing,good uniformity, no fans no noise

5. Small pixel is more popular in the market, widely used in video meeting, TV, monitor and message board with perfect display

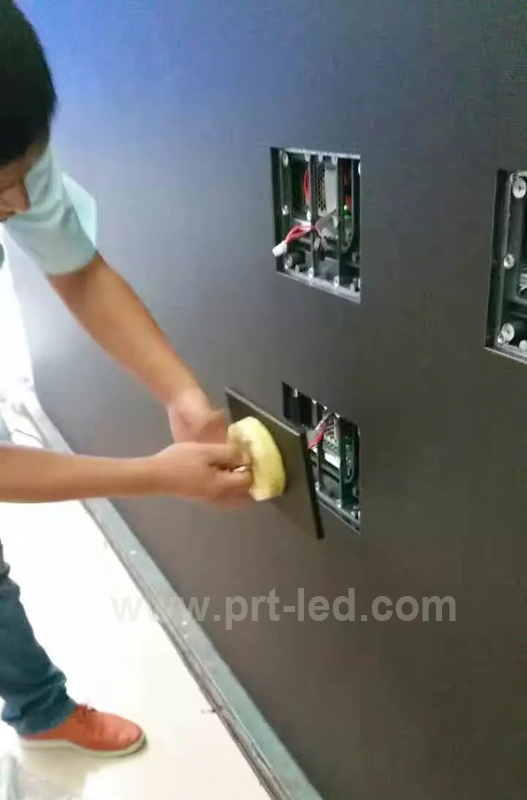

6. Front service help to save much space for installation and maintenance

Please see more pictures for your reference
Die-Casting P1.923 Indoor Full Color LED Display Panel with Front Access
Die-Casting P1.923 Indoor Full Color LED Display Panel with Front Access

Die-Casting P1.923 Indoor Full Color LED Display Panel with Front AccessDie-Casting P1.923 Indoor Full Color LED Display Panel with Front Access


No. Parameter Specification
1 Pixel Pitch(mm) 1.92
2 Pixel Density 270400pix/sq.m
3 LED Type SMD1010(nation star)
4 LED Wave Length(nm) R:620-625/G:517.5-520/B:465-467.5
5 LED Luminous Intensity(mcd) R:100~130/G:120~156/B:20~26
6 Viewing Angle H/V:140°/140°
7 Brightness 1000cd/m2
8 Drive Method 1/26 scan
9 Driving IC MBI5153+4067(black-out)
10 Color Depth 16bit
11 Refresh Rate(Hz) 2000
12 Frame Rate(Hz) 60
13 Brightness Adjustment Manual/Automatic/Remote
14 Module Size(mm) 200×150
15 Module Resolution(dots) 104×78
16 Cabinet Size(mm) 400×300
17 Cabinet Display Resolution(dots) 208×156
18 Cabinet Type and Material Die-casting Aluminum
19 Cabinet Weight(Kg) 5.6kg
20 Power Supply 5.0V 40A
21 Voltage(V) AC 220V
22 Avg. Power Consumption 350W/sq.m
23 Max. Power Consumption 850W/sq.m
24 Service Access Rear Access
25 IP Grade IP31
26 Operating Temp/Humidity -20ºC~50ºC, 10~90%RH
27 Storage Temp/Humidity -40ºC~60ºC, 10~90%RH
28 Lifetime(Normal Temp) 50000H
29 System Control Nova star
30 Compliant Standard CCC,CE
