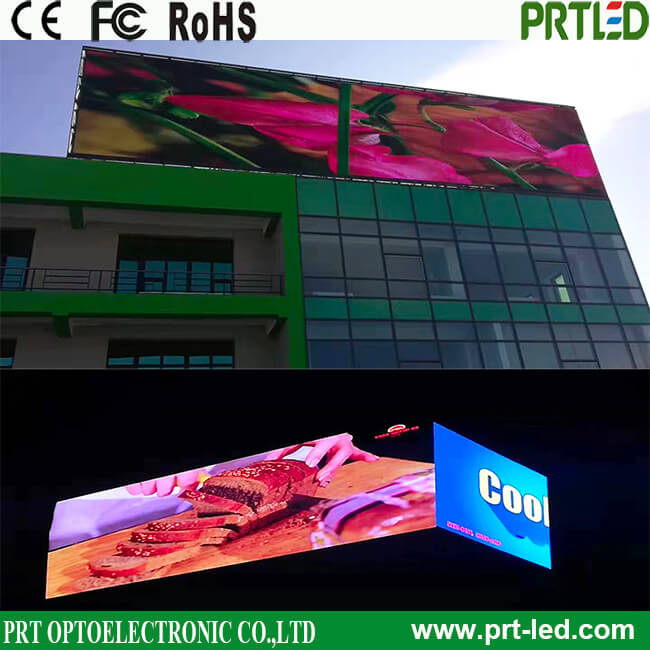

Modular Design Full Color Outdoor LED Screen with Good Waterproof (P10.4,P7.8,P5.2,P3.9)

1. Easy install, quick maintenance
2. IP65, for harsh humid and sandy conditions
3. Front or Rear service ability
4. EMC-B Certificate
Availability:
Quantity:
  • P10.4

  • PRTLED

  • 8528591090

Special modular design for easy installation and quick maintence,lower  maintenace cost

IP65 for both front and rear,suit for harsher sea conditions with high humidity and salinity

High contrast ratio and high reliability,provide two years warranty

Production technology compliant with EMC-B certificate

Outdoor Modular LED Screen

Model No.

P3.91

P5.2

P7.8

P10.41

Pixel Pitch

3.91mm

5.21mm

7.8mm

10.41mm

Pixel Density

(dots/sq.m)

65536

36864

16384

9216

LED component

SMD1921

SMD1921

SMD2727

SMD2727

Module Size

500 x 500 mm

 500 x 500 mm

500 x 500 mm

500 x 500 mm

Module Resolution

(dots)

128 x 128

96 x 96

64 x 64

48 x 48

Panel Size

500 x 500 mm

1000 x 1000 mm

500 x 500 mm

1000 x 1000 mm

500 x 500 mm

1000 x 1000 mm

500 x 500 mm

1000 x 1000 mm

Panel Weight

(Al frame)

26 kgs  /sq.m

26kgs / sq.m

26 kgs / sq.m

26kgs / sq.m

Brightness

5500nits

5500nits

5500nits

≥5500nits

Best viewing distance

4 m

5 m

8 m

 10 m

Maximum power consumption

600W/sq.m

600W/sq.m

600W/sq.m

600W/sq.m

Driving method

1/ 8

1/ 8

1/ 8

1/ 4

View angle

110º(H) / 110º(V)

Maintenance

Front & Rear

Control method

Synchronous/wireless control system

Working voltage

AC220V/110V±10%

Working temperature

—20~+50±10%

Working humidity

10  95

MTBF

10,000 hours

Frame Frequence

50/60Hz

Refresh Frequence

>1920Hz

IP grade

IP65

Effective Communication
Distance(without relay)

Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM

Accepting signal with video processor

PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.

Systems operating platform

WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
