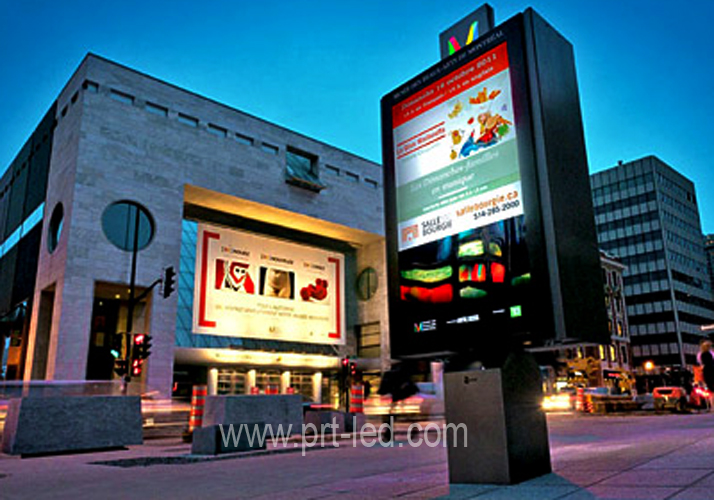

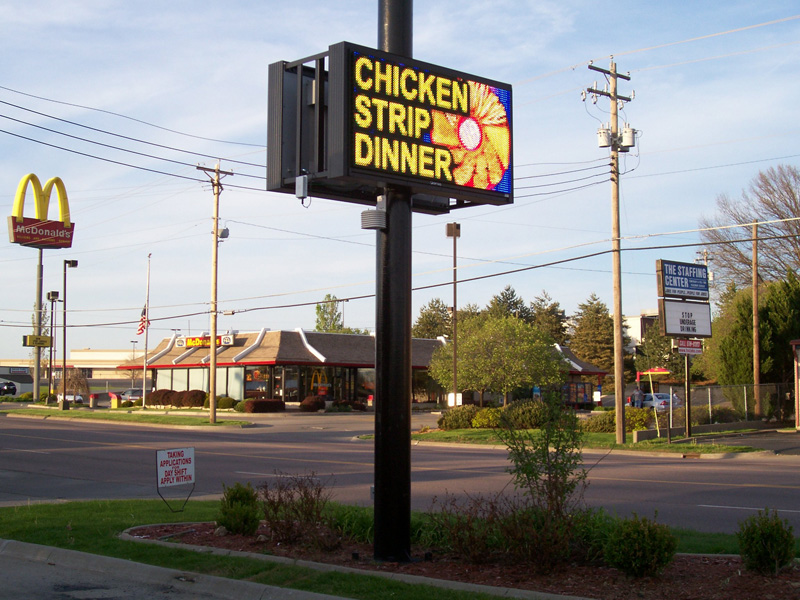

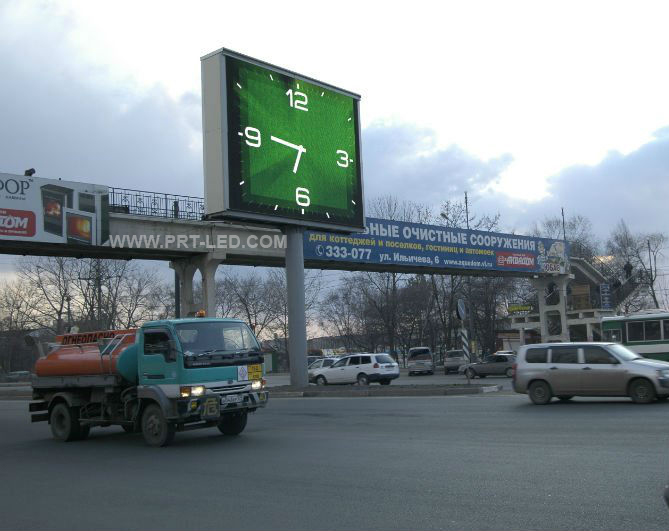

P6 High Resolution outdoor LED Displayer mounted on standing poles,new products instead of additional light box and flex banner, made with led modules and good waterproof, can be shown with dynamic video,long life time and good environment protection.
Product Advantages:
1. Intelligent control: with LAN, WIFI, 3G/4G intelligent management module inside, can control the screen as your convenient, change the display content as you want
2. Saving time and labor:once the screen is installed successfully, the advertising content can be changed at any time as request by wifi or 3G/4G network, don't like the traditional static billboards need to be dissambled frequently, save the working time and labor cost, and control the advertising contents easily.
3.High waterproof IP level: with front IP65 and back IP54, good waterproof, can be used outdoor understand any weather condition
4. Easy maintenance: Side open and back maintenance for option, and dot to dot maintenance, easy and quickly
5.SMD led encapsulation confirm the good uniformity and high definition
6. Can be done with single side or double sides
7.Widely used in Community, Walking street, School, Hospital, Road side, Park, Super market, Parking lot, Metro station, Hotel, Gas station, Automobile 4S shop, Tourist attraction, Bus station etc.
Outdoor P6 full color led display for pole |
Characteristics | Value | unit |
Pixel pitch | 6 | mm |
LED type | SMD2727 | |
Pixel density | 27777 | Dots/ |
Module size | 192x96 | mm |
Module resolution | 32x16 | dots |
Cabinet size | 768x1604 | mm |
Display size | 768x1344 | mm |
Cabinet resolution | 128x224 | dots |
Cabinet weight | 57 | Kgs |
Waterproof IP | 65 | degree |
Brightness | ≥5000 | CD/ |
View angle | 120° | degree |
Gray scale | 13 | Bit |
Display scale | 16.7 | Million |
Power consumption(Max.) | 900 | W/sq.m |
Power consumption(Avg.) | 300 | W/sq.m |
Refresh Frequency | ≥960 | Hz |
Operation Power | AC100~240 | V |
Operationg Temperature | -20~+50 | ºC |
Operating Humidity | 10~90% | RH |
Operating Life | 100,000 | Hours |
