High Resolution Outdoor P5 LED Light Panel with 640*640mm Die-Casting Aluminum

Quantity:
  • P5
  • IP65
  • 1R, 1G, 1B
  • 300W / m⊃2;
  • 1/8 Scan
  • Advertising
  • SMD2727
  • 800X800mm/640X640mm
  • IP65
  • Wooden Case or as Required
  • Shenzhen China
  • Full Color
  • 5mm
  • Video Display
  • 40000dots/Sq.M
  • LED Video Display
  • CE, RoHS, CCC, ETL
  • 160*160mm/320*160mm
  • Iron/Aluminum
  • PRT
  • CE, FCC. ROHS, 3C
  • 8528591090
P5 Full Color LED panel for outdoor rental display,with SMD2727 lamps, high contrast ration,high definition and good uniformity, high brightness and good waterproof. assembled with die-casitng aluminum cabinets for rental use

Product features:

1.With high quality leds ensure high brightness and good performance

2.SMD in 1 technology, confirm the super wide view angle and better evenness surface and stability

3.RGB high gray processing to show any real color,perfect vision

4.Support point correction function, ensure the consistency of the color and the brightness during the usage

5.Accurate,shortcut flexile installation, can be applied to any different environment

6.With protection grade of IP65,suit to any bad weather

7.With professional aviation plugs as connector,ensure the quality and safety

8. Complete series, accept customized, cabinet sizes can be customized based on different requests from different projects

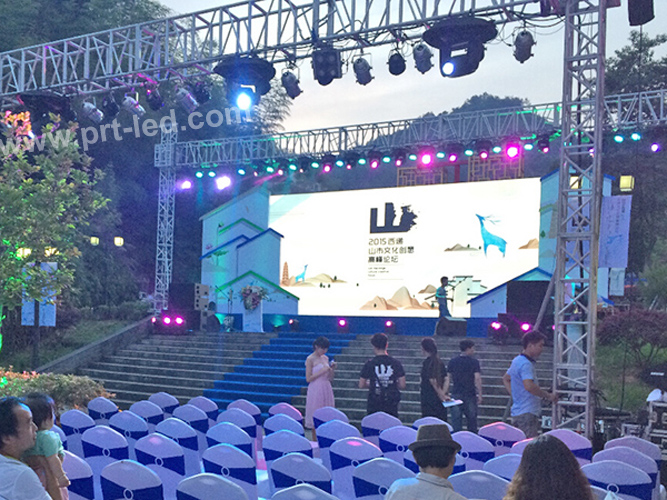

More pictures for reference:
High Resolution Outdoor P5 LED Light Panel with 640*640mm Die-Casting Aluminum High Resolution Outdoor P5 LED Light Panel with 640*640mm Die-Casting Aluminum
High Resolution Outdoor P5 LED Light Panel with 640*640mm Die-Casting Aluminum High Resolution Outdoor P5 LED Light Panel with 640*640mm Die-Casting Aluminum High Resolution Outdoor P5 LED Light Panel with 640*640mm Die-Casting Aluminum









P5 Outdoor full Color LED Screen Specification
Pixel pitch 5mm
Pixel Configuration 1R1G1B
LED component SMD2727
Size of module 320x160mm
Resolution of module 64x32dots
Size of cabinet 640mm x 640mm x 150mm
Resolution of cabinet 128x128dots
Material of Cabinet Die-casting aluminum
Weight of Cabinet 15kgs
Brightness >6000cd/sq.m
Density 40000dots/sq.m
Best viewing angle 140° /140°
Best viewing distance 4-60M
Maximum power consumption <1200W/sq.m
Average power consumption <400W/sq.m
Driving method 1/8 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1800Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
