Prt Factory Supply Advertising LED Display with High Quality (P5.95, P6.25)

Quantity:
  • P5.95
  • IP65
  • 1R, 1G, 1B
  • 300W / m⊃2;
  • 1/7 Scan
  • Advertising
  • SMD2727
  • Die-Casting Aluminum
  • IP65
  • PRT
  • CE, FCC. ROHS, 3C
  • 8528591090
  • Full Color
  • 5.95mm
  • Video Display
  • 28224dots/Sq.M
  • LED Video Display
  • CE, RoHS, CCC
  • 250X250mm
  • Synchronous
  • 500X1000mm
  • Wooden Case or as Required
  • Shenzhen China
P5.95 led display panel for outdoor or indoor video wall display, to be fixed or be hung on truss for advertising,size of 500x1000mm also can be with 500x500mm, light weight, high brightness,good stability


Product Features:

1.SMD 3 in 1 led encapsulation confirm wide view angle and lower power consumption

2. Good waterproof IP65, suit to any weather,anti-corrossion,long life span

3. Die-casting cabinet with slim thickness of 75mm ensure light weight, easy to pick up and move,
 better for rental use,

4. High brightness up to 6000nits, close view distance,good performance

5. Rental design cabinet with locks and aviation plugs, easy and quick to assemble without tools in short time, can be fixed install or hang on truss with flying bar

6. Dot to dot maintainance, quick maintain and save cost

7.No fans design, no noise caused, good environment protection

8. Widely used for stage, concert, show, banquet, wedding, public advertising etc.

9. This cabinet design also suit for outdoor P8.928,P6.25,P5.95,P4.81,P3.91,and with different prices

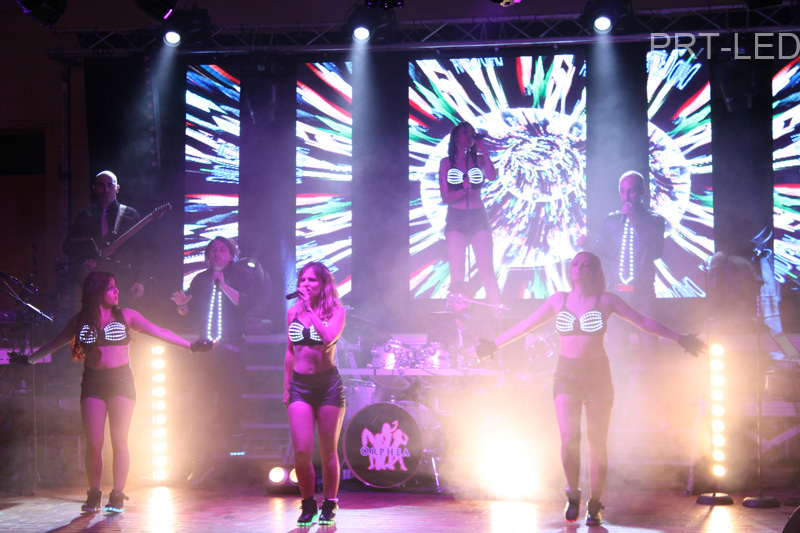

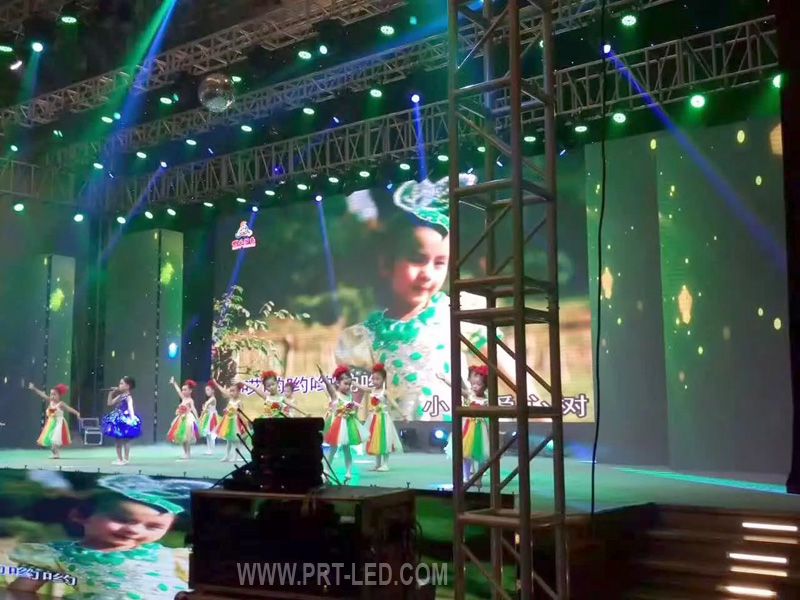

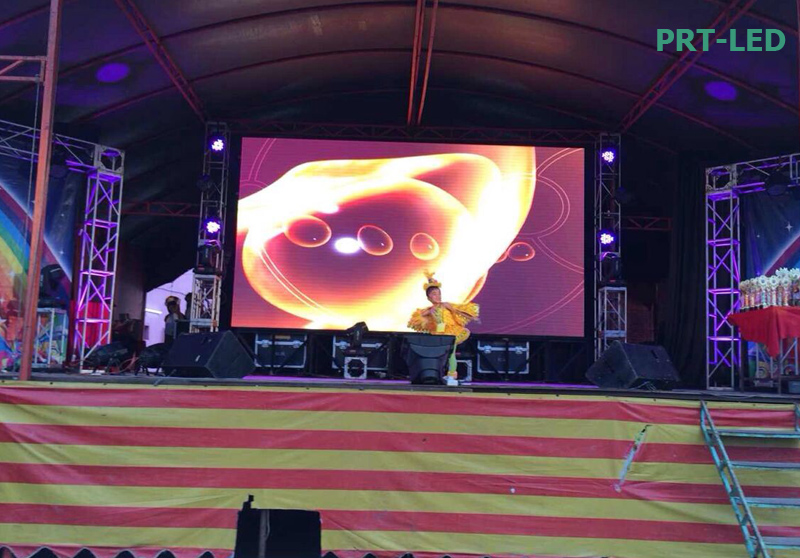

More cabinet pictures for reference as below:

Prt Factory Supply Advertising LED Display with High Quality (P5.95, P6.25)
Prt Factory Supply Advertising LED Display with High Quality (P5.95, P6.25)

Prt Factory Supply Advertising LED Display with High Quality (P5.95, P6.25)

Prt Factory Supply Advertising LED Display with High Quality (P5.95, P6.25)
Prt Factory Supply Advertising LED Display with High Quality (P5.95, P6.25)
Prt Factory Supply Advertising LED Display with High Quality (P5.95, P6.25)

Related parameters for reference,please contact us for details!


P5.95 Outdoor full Color LED Screen Specification
Pixel pitch 5.95mm
Pixel Configuration 1R1G1B
LED component SMD3535/SMD2727
Size of module 250mm x 250mm
Resolution of module 42x42
Size of cabinet 500x500mmx75mm /500 x 1000 x 75mm
Resolution of cabinet 84x84 for 500x500mm/84x168dots for 500x1000mm
Material of Cabinet Die-casting Aluminum/Aluminum profile
Weight of Cabinet 8kgs for 500x500mm/ 13KGS for 500x1000mm
Brightness >5500cd/sq.m
Density 28224dots/sq.m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 6-100M
Maximum power consumption 1000W/sq.m
Average power consumption 550W/sq.m
Driving method 1/7 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
