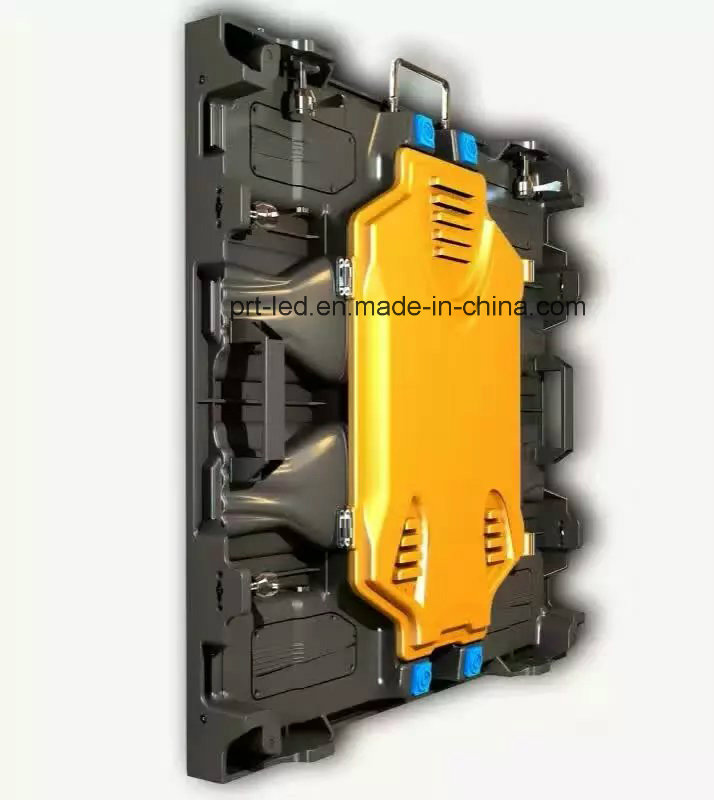

Light Weight 640X640mm Die-Casting LED Display Panel/Board for Rental (P5, P6.67, P8)

Quantity:



Inquire Add to Basket

Model NO.:
P5
Display Function:
Video Display
Pixel Configuration:
1R,1G,1B
Scanning Mode:
1/8 Scan
Display Type:
LED Video Display
IP Rating:
IP65
Cabinet Size:
640X640
Cabinet Material:
Die-Casting Aluminum
Trademark:
PRT
Specification:
CE, FCC. ROHS, 3C
HS Code:
8528591090
Tube Chip Color:
Full Color
Pixel Pitch:
5mm
Pixel Density:
40,000 dots / m²
System Operating Platform:
Win XP, Win 2000,Win7/8
Application:
Stage Performance, Advertising, Shopping Guide
Certification:
CE, RoHS, CCC, FCC
LED Type:
SMD2727
View Angle:
140 Degree for Horizontal and Vertical
Transport Package:
Flight Case or Wooden Case
Origin:
Shenzhen

Product Description

Die-casting board size of 640x640mm,light weight and thickness,for outdoor rental or fixed install,with high definition,high constrast 5000:1, with ,this kind of cabinet suit for indoor P5 and outdoor P5,P6.67,P8 and P10

Features

1.SMD 3 in 1 led encapsulation ensure wide view angle,140degree for vertical and horizontal

2.Dot-to-dot maintenance, easy and quick to maintain and save much labor cost and working time

3.Made with Die-casting Aluminum material,strong configuration and durability,long life time

4.Small panel size of 640×640mm,Super thin only with 65mm thickness

5.Light weight and portable,only with 13kgs per panel, and pack with road case,easy to move

6.Rental design with fast locks and aviation plugs, easy to install and dismantle within few minutes,to combine a whole screen with panels one by one randomly

More pictures for good understanding:

Light Weight 640X640mm Die-Casting LED Display Panel/Board for Rental (P5, P6.67, P8)

Light Weight 640X640mm Die-Casting LED Display Panel/Board for Rental (P5, P6.67, P8)

Parameters for reference, please contact usfor details, different request will cause different cost

Model No.	P5	P6.67	P8	P10
Pixel pitch	5mm	6.67mm	8mm	10mm
Led type	SMD2727	SMD3535	SMD3535	SMD3535
Resolution(dots/sq.m)	40000	22478	15625	10000
Brightness(Nits)	≥5500	≥5000	≥5000	≥5000
Drive mode	1/8	1/8	1/4	1/4
Module size(mm)	320×160	320×160	320×160	320×160
Panel size (mm)	640×640	640×640	640×640	640×640
Panel resolution(dots)	128×128	96×96	80X80	64X64
Cabinet weight(KGS)	15	14	13	13
Power consumption Max./Avg. (W/m2)	480/160	700/230	700/230	700/230
View angle(H/V)	160°/140°	160°/140°	160°/140°	160°/140°
Refresh rate(Hz)	≥1920	≥2000	≥2000	≥2000
Grey scale	16Bits	16Bits	16Bits	16Bits
Best view distance	4-30M	7-75M	8-75M	8-100M
Protection level(Front/Back)	IP65/54	IP65/IP54	IP65/IP54	IP65/IP54
Input Power (V)	110~240	110~240	110~240	110~240
Working Temperature	-20ºC~+50ºC	-20ºC~+50ºC	-20ºC~+50ºC	-20ºC~+50ºC
Working humidity	10% ~90%	10% ~90%	10% ~90%	10% ~90%
Control	Caste ≤100M, Fiber optical≤10000M
