P5-F1-B05
IP65
1R, 1G, 1B
300W / m²
1/8 Scan
Advertising
960X320mm
SMD2525
PRT
Shenzhen China
Full Color
5mm
Video Display
40000dots/Sq.M
LED Video Display
CE, RoHS, ETL
160X160mm
192X64dots
CE, FCC. ROHS, 3C
8528591090

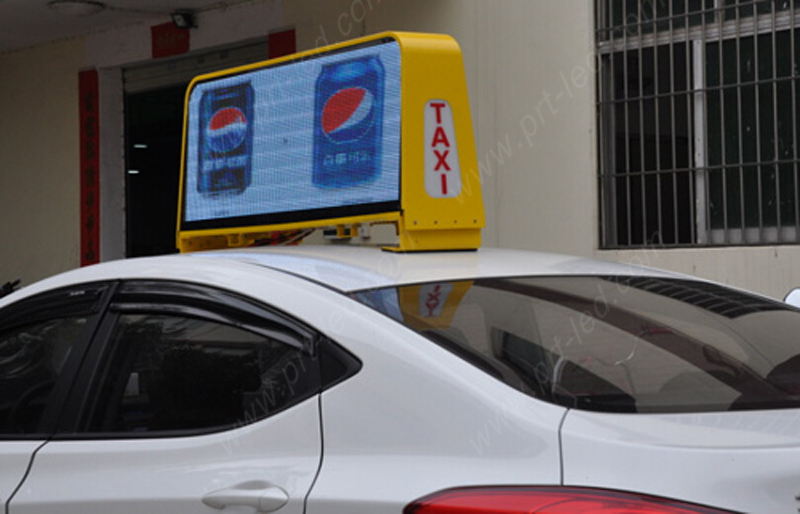

| Main technical Parameters for Taxi top led screen | |
| Item No. | P5-F1-B05 |
| Pixel Pitch | 5mm |
| Module size | 160x160 |
| Pixel density | 40000dots/sq.m |
| LED component | 1R1G1B |
| LED encapsulation | SMD2525 |
| Display screen size | 960x320mm |
| Cabinet resolution | 240x64 dots |
| Cabinet size | 985x444mm |
| Optimal Viewing Angle (H/V) | 140/140 |
| Brightness | >=5500cd/sq.m |
| Input Voltage | DC9~36V (or AC 110V/220V) |
| Output Voltage | 5V |
| Power consumption(Ave.) | 300W/sq.m |
| Memory amplify | Support USB flash disk to expand capacity of memory |
| Driving method | Asynchronous control |
| Refresh rate(Hz) | ≥400 -1000 |
| Protection grade | IP65 |
| Working temperature(ºC) | -30 ~ +70 |
| Support format | AVI, WMV, MOV, MPG, DAT, VOB, MP4, FLV, MPEG, MPV, MPA, VCD, SWF, RM, RMJ, ASF, BMP, JPG, GIF, WMF, ICO, SWF,etc. |
| Cabinet weight | 18kgs |
| Main technical Parameters for Taxi top led screen | |
| Item No. | P5-F1-B05 |
| Pixel Pitch | 5mm |
| Module size | 160x160 |
| Pixel density | 40000dots/sq.m |
| LED component | 1R1G1B |
| LED encapsulation | SMD2525 |
| Display screen size | 960x320mm |
| Cabinet resolution | 240x64 dots |
| Cabinet size | 985x444mm |
| Optimal Viewing Angle (H/V) | 140/140 |
| Brightness | >=5500cd/sq.m |
| Input Voltage | DC9~36V (or AC 110V/220V) |
| Output Voltage | 5V |
| Power consumption(Ave.) | 300W/sq.m |
| Memory amplify | Support USB flash disk to expand capacity of memory |
| Driving method | Asynchronous control |
| Refresh rate(Hz) | ≥400 -1000 |
| Protection grade | IP65 |
| Working temperature(ºC) | -30 ~ +70 |
| Support format | AVI, WMV, MOV, MPG, DAT, VOB, MP4, FLV, MPEG, MPV, MPA, VCD, SWF, RM, RMJ, ASF, BMP, JPG, GIF, WMF, ICO, SWF,etc. |
| Cabinet weight | 18kgs |
