P8 Full Color Outdoor LED Billboard for Message

Quantity:
  • P8-outdoor
  • IP65
  • 1R, 1G, 1B
  • 350W / m⊃2;
  • 1/5scan
  • Stage Performance, Advertising
  • SMD3535
  • 80X80dots
  • PRT
  • Shenzhen China
  • Full Color
  • 8mm
  • Video Display
  • 15625dots Per Sqm
  • LED Video Display
  • CE, RoHS, CCC, FCC
  • 320X320mm
  • 640X640mm
  • CE, FCC, Rohs
  • 8528591090

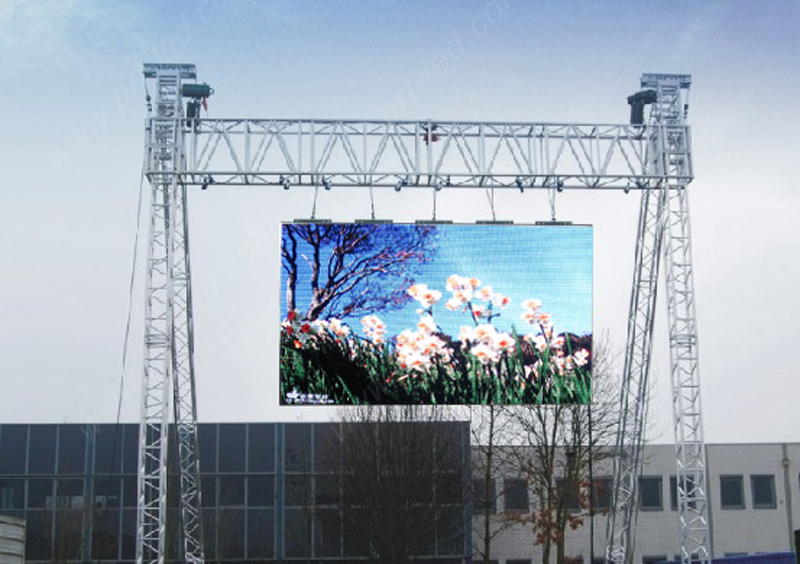

P8 Full Color Outdoor LED Billboard for advertisement with high brightness

Product Features:

1. SMD3535 led encapsulation confirm the wide view angle and good uniformity

2. Only with 60mm thickness, super slim, small panel size of 640X640mm

3. Made with Die-casting Aluminum, light weight and portable

4. High Definition and high brightness

5. Good Waterproof, good for outdoor rental

6. Suit for outdoor SMD P8, SMDP10, DIP P10, DIP P16

Outdoor P8 Full Color LED Display Main Parameters
Visual Characteristics Unit Value
Pixel Pitch mm 8.0
Pixel Density Dots/sq.m 15625
Pixel Configuration
SMD3535
Cabinet Resolution dots 80×80
Refresh Rate Hz ≥1920
View Angle(H/V) ° 140/140
Brightness nits ≥5500
Gray Scale Bit 16
IP Rating
65
Power Consumption(Max/Avg) W/sq.m 1200/400
Input Voltage(AC) V 110~240
Modular Characteristics
Cabinet Size(W×H×D) mm 640×640
Cabinet Material
Die-cast Aluminum
Cabinet Weight Kg 10
Module Size(W×H) mm 320×320
Environment
Operation Temperature ºC -10~+50
Operating Humidity
10%~90%
Driving Mode
1/5 Scan
Control Distance Cat 5E <100m,Single mode fiber<10Km
