Truck/Trailer Mounted SMD P10 Outdoor LED Moving Sign

  • P10-outdoor SMD
  • IP65
  • 1R, 1G, 1B
  • 350W / m⊃2;
  • 1/4 Scan
  • Advertising, Stage Performance, Rental
  • SMD3535
  • 32X16dots
  • PRT
  • CE, FCC. ROHS, 3C
  • 8528591090
  • Full Color
  • 10mm
  • Video Display
  • 10000 dot / m⊃2;
  • LED Video Display
  • CE, RoHS, CCC
  • 320X160mm
  • 960X960mm
  • Wooden Case or as Required
  • Shenzhen China
Truck/Trailer Mounted SMD P10 Outdoor LED Moving Sign for advertising with high definition,high brightness,good uniformity,good waterproof

Product Features:

1. SMD led encapsulation confirm wide view angle and high brightness,

2.Good waterproof IP65, long life span,low power consumption

3.High pixel density, Long view distance, High definition, Good uniformity

4. With Rental design Cabinet, easy and quick to assemble without tools in short time

5. Low power consumption, low noise created, low transportation costs, and low installation costs.

6. Widely used for commercial advertising, stage background, Traffic mention, sports broadcasting or scoreboard,recreation rental etc.

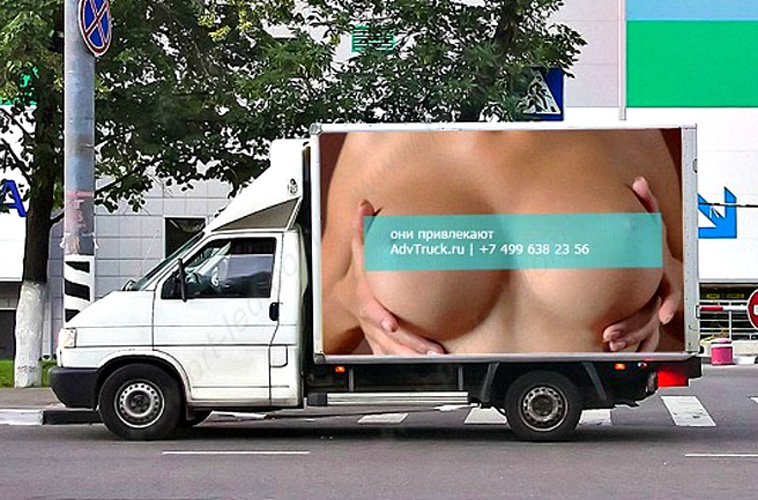

Truck/Trailer Mounted SMD P10 Outdoor LED Moving Sign

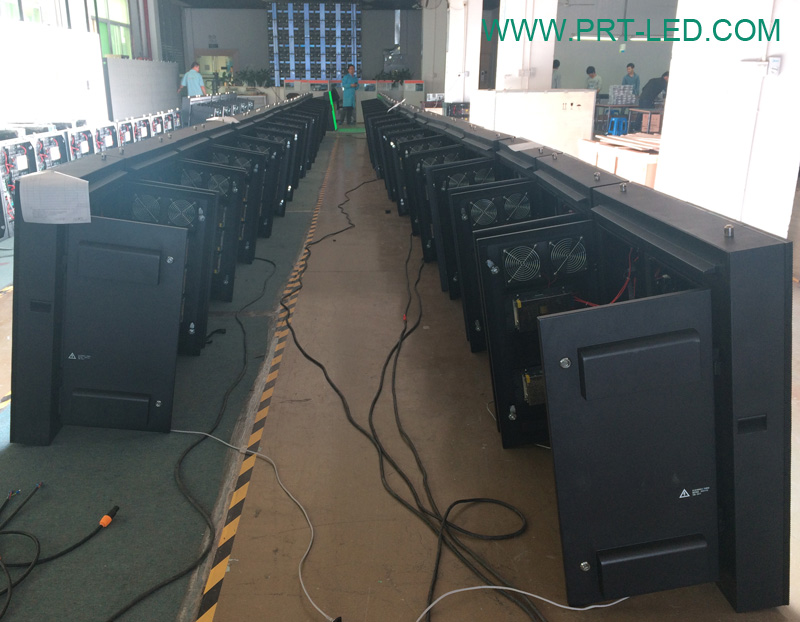

Truck/Trailer Mounted SMD P10 Outdoor LED Moving Sign

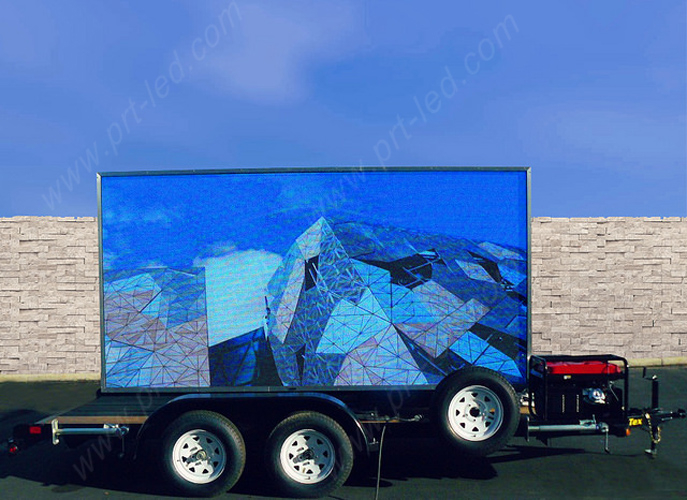

Truck/Trailer Mounted SMD P10 Outdoor LED Moving Sign
P10 Outdoor full Color LED Screen Specification
Pixel pitch 10mm
Pixel Configuration 1R1G1B
LED component SMD3535 black
Size of module 320mm x 160mm
Resolution of module 32x16
Size of cabinet 960mmx 960mm /1280mm x 960mm
Resolution of cabinet 96x96 / 128 x 96
Material of Cabinet Iron with back doors
Weight of Cabinet <60KGS
Brightness >7500cd/sq.m
Density 10000dots/sq.m
Best viewing angle 140 /140
Best viewing distance 10-150M
Maximum power consumption <800W/sq.m
Average power consumption <300W/sq.m
Driving method 1/2 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1800Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
