Waterproof P5 Outdoor LED Screen with 640X640mm Display Panel

Quantity:
  • P5

  • Video Display

  • 1R,1G,1B

  • 1/8 Scan

  • LED Video Display

  • IP65

  • 640X640mm

  • Die-Casting Aluminum

  • PRT

  • CE, FCC. ROHS, 3C

  • 8528591090

  • Full Color

  • 5mm

  • 40,000 dots / m⊃2;

  • Win XP, Win 2000,Win7/8

  • Stage Performance, Advertising, Shopping Guide

  • CE, RoHS, CCC, FCC

  • SMD2727

  • 140 Degree for Horizontal and Vertical

  • Flight Case or Wooden Case

  • Shenzhen

Outdoor P5 Full Color LED Display Screen with die-casting aluminum of 640x640mm panel,for outdoor advertising,for permanant fixed install or rental use.
also we have other panel design for selection and with different cost,please contact us for details


Features

1.SMD 3 in 1 led encapsulation ensure wide view angle,140degree for vertical and horizontal

2.Dot-to-dot maintenance, easy and quick to maintain and save much labor cost and working time

3.Made with Die-casting material,strong configuration and durability,long life time

4.Small panel size of 640×640mm,Super thin only with 65mm thickness

5.Light weight and portable,only with 13.50kgs per panel, and pack with road case,easy to move

6.Rental design with fast locks and aviation plugs, easy to install and dismantle within few minutes,to combine a whole screen with panels one by one randomly

More pictures for good understanding:

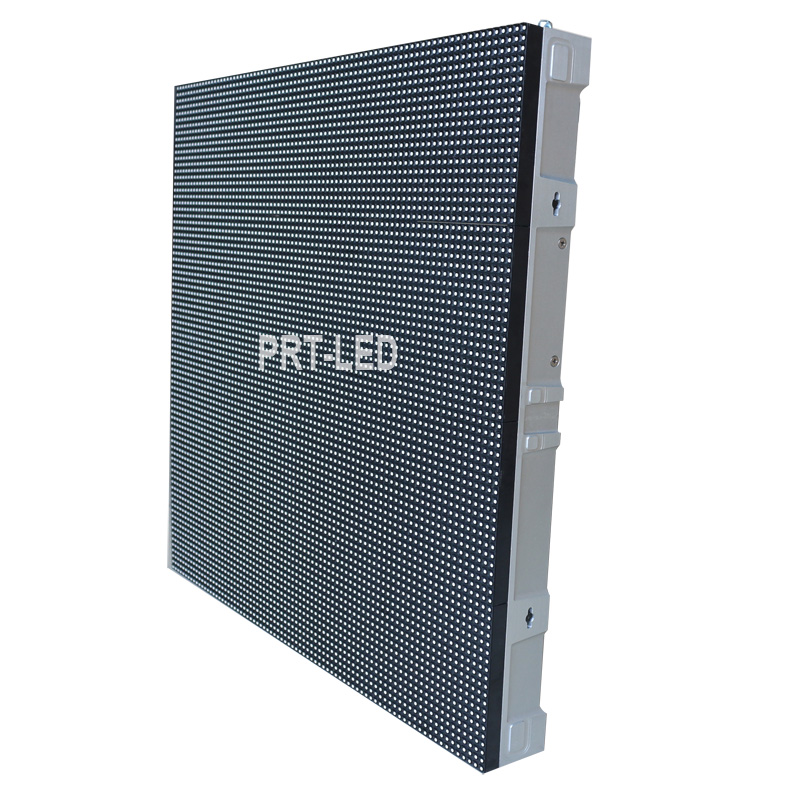

Waterproof P5 Outdoor LED Screen with 640X640mm Display Panel

Waterproof P5 Outdoor LED Screen with 640X640mm Display Panel

Waterproof P5 Outdoor LED Screen with 640X640mm Display Panel

Waterproof P5 Outdoor LED Screen with 640X640mm Display Panel
Waterproof P5 Outdoor LED Screen with 640X640mm Display Panel
Waterproof P5 Outdoor LED Screen with 640X640mm Display Panel

Parameters for reference, please contact usfor details, different request will cause different cost

P5 Outdoor full Color LED Screen Specification
Pixel pitch 5mm
Pixel Configuration 1R1G1B
LED component SMD2727
Size of module 320mm x 160mm
Resolution of module 64x32
Size of cabinet 640mm x 640mm x 65mm
Resolution of cabinet 128x128
Material of Cabinet Die-casting Aluminum
Weight of Cabinet 13.5KGS
Brightness >5500cd/sq.m
Density 27777dots/sq.m
Best viewing angle 140 /140
Best viewing distance 4-50M
Maximum power consumption <1000W/sq.m
Average power consumption <400W/sq.m
Driving method 1/8 scan
Control method Synchronization
Gray scale 65536
Colors 256 x 256 x 256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >2000Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
