250*250mm RGB Video Display LED Module of Indoor/Outdoor P3.91, P4.81, P6.25

Quantity:
  • P3.91-indoor
  • RGB
  • 1W
  • IP31
  • SMD2121 Black
  • 64X64dots
  • PRT
  • CE, FCC, Rohs
  • 8528591090
  • Diode
  • <0.3W
  • Epistar
  • Not Waterproof
  • 250X250mm
  • 1500CD/M2
  • Wooden Case
  • Shenzhen China
Full Color LED Display Module with size 250x250mm for Outdoor or indoor,mostly for rental design cabinet size 500x500mm or 500x1000mm

Product Features:

1.SMD2121 black body leds ensure high contrast ratio,high gray scale,good performance

2.SMD 3 IN 1 technology confirm wide view angle,light weight and low power consumption

3. High resolution modules and small pixel pitch makes closed view distance and high definition,good vision effect.

3. 250x250mm module size easy to assemble panel size 500x500mm or 500x1000mm for rental use or permanent fixed for advertising, suit for indoor and outdoor P3.91,P4.81,P6.25

4. Also can be assembled on a iron frame with magnets,don't need cabinets, easy to install and front access maintenance,save much cost for cabinets and transportation

5. Slim thickness, light weight,easy to move and transporting

6. Exquisite and tastful appearance due to structural wire layout

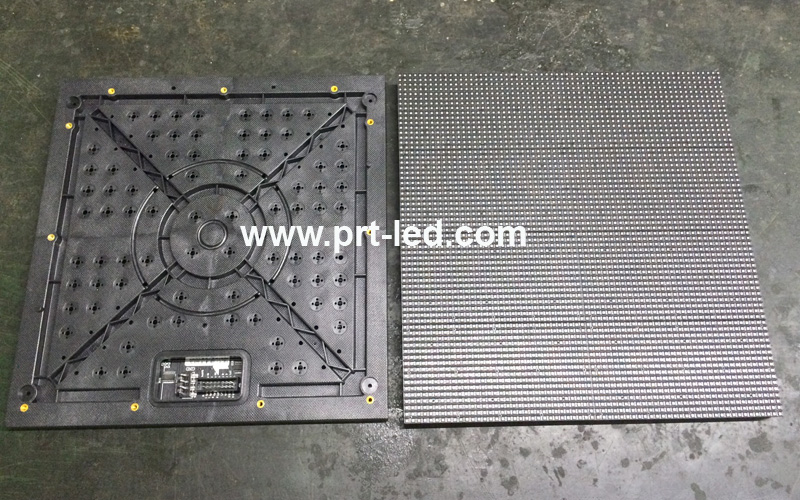

More pictures for reference:
250*250mm RGB Video Display LED Module of Indoor/Outdoor P3.91, P4.81, P6.25

250*250mm RGB Video Display LED Module of Indoor/Outdoor P3.91, P4.81, P6.25
250*250mm RGB Video Display LED Module of Indoor/Outdoor P3.91, P4.81, P6.25

250*250mm RGB Video Display LED Module of Indoor/Outdoor P3.91, P4.81, P6.25

250*250mm RGB Video Display LED Module of Indoor/Outdoor P3.91, P4.81, P6.25
250*250mm RGB Video Display LED Module of Indoor/Outdoor P3.91, P4.81, P6.25





P3.91 SMD2121 Indoor full Color LED Screen Specification
Pixel pitch 3.91mm
Pixel Configuration 1R1G1B
LED component SMD2121
Size of module 250mm x 250mm
Resolution of module 64x64
Size of cabinet 500x500mmx 70mm/ 500mm x 1000mm x 70mm
Resolution of cabinet 128x128 dots or 128x256dots
Material of Cabinet Die-casting Aluminum
Weight of Cabinet 8kgs/13KGS
Brightness >1500cd/sq.m
Density 65746dots/sq.m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 3-50M
Maximum power consumption 1200W/sq.m
Average power consumption 640W/sq.m
Driving method 1/16 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
