P3.91
Video Display
1R,1G,1B
1/16
LED Video Display
31
SMD2121 Black
64X64dots
PRT
CE, FCC, Rohs
8528591090
Full Color
3.91mm
65746dots/Sq.M
Win XP,Win 2000,Win7/8
Stage Performance, Advertising, Shopping Guide
CE, RoHS, CCC, FCC
250X250mm
1500CD/M2
Wooden Case
Shenzhen China
P3.91 SMD2121 Indoor full Color LED Screen Specification | ||||||
Pixel pitch | 3.91mm | |||||
Pixel Configuration | 1R1G1B | |||||
LED component | SMD2121 black | |||||

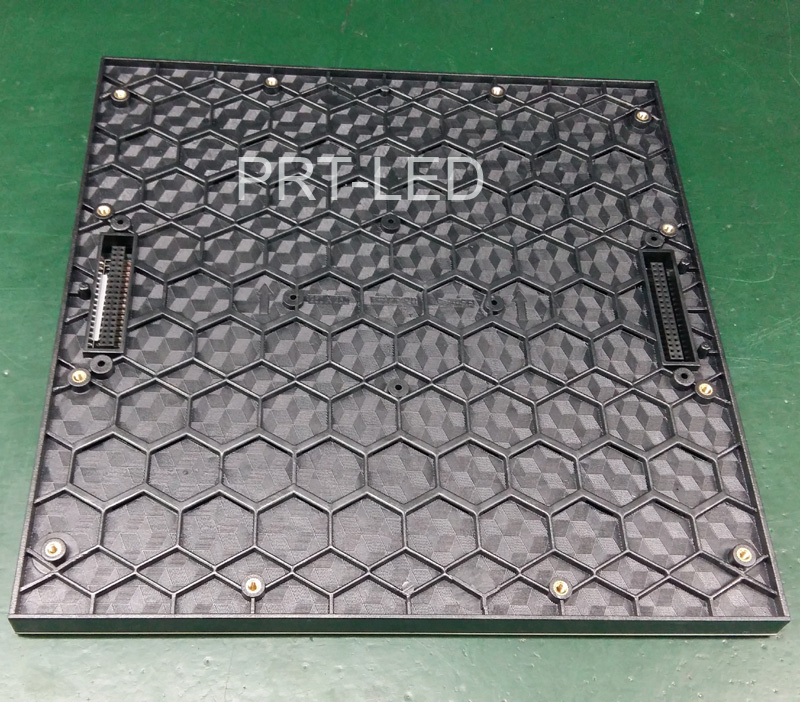

Size of module | 250mm*250mm | |||||
Resolution of module | 64x64 | |||||

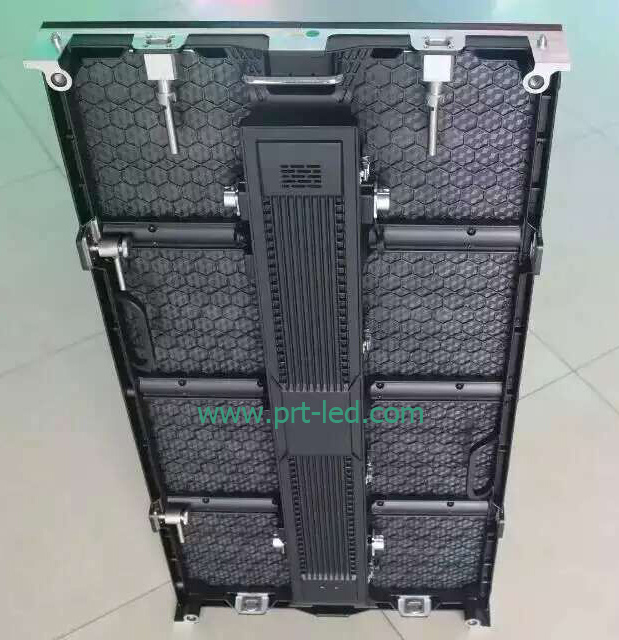

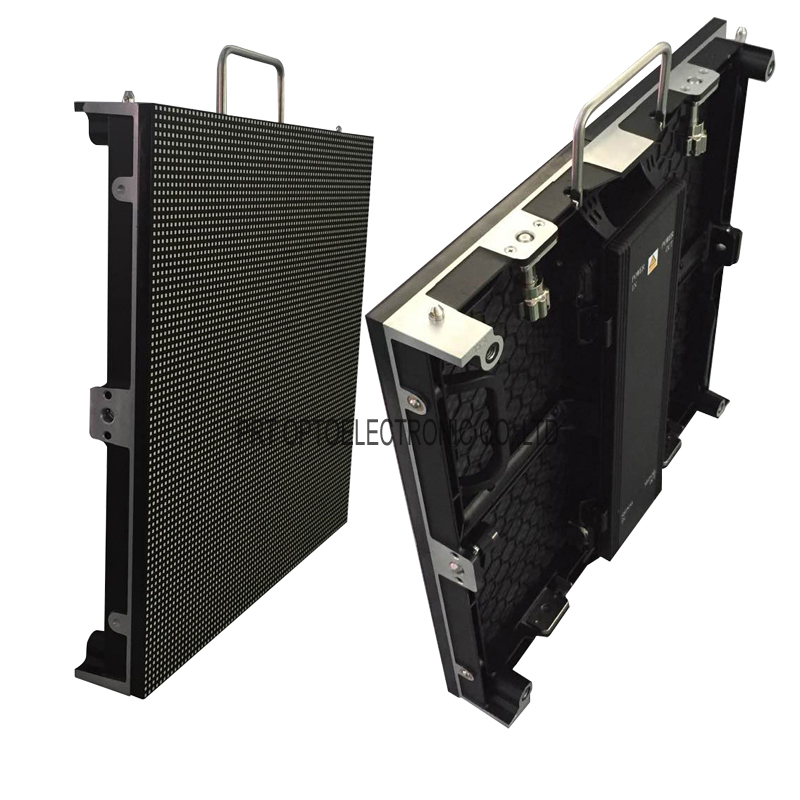

Size of cabinet | 500x500mmx 70mm/ 500mm x 1000mm x 70mm | |||||
Resolution of cabinet | 128x128 dots or 128x256dots | |||||
Material of Cabinet | Aluminum | |||||
Weight of Cabinet | 6.8kgs/13KGS | |||||
Brightness | >1500cd/sq.m | |||||
Density | 65746dots/sq.m | |||||
Best viewing angle | 140 /140 | |||||
Pixel Configuration | 1R1G1B | |||||
Best viewing distance | 3-50M | |||||
Maximum power consumption | 1200W/sq.m | |||||
Average power consumption | 640W/sq.m | |||||
Driving method | 1/16 scan | |||||
Control method | Synchronization | |||||
Gray scale | 65536 | |||||
Colors | 256*256*256 | |||||
Color temperature | 3200-9300k | |||||
Uniformity | 97% | |||||
Working voltage | AC220V/110V±10% | |||||
Working temperature | -20ºC~+50ºC±10% | |||||
Working humidity | 10% ~ 90% | |||||
MTBF | 10,000 hours | |||||
Frame frequence | 50/60Hz | |||||
Refresh frequence | >1920Hz | |||||
IP grade | IP31 | |||||
Life Span | 100,000 hours | |||||
Data transafer method | RJ45 | |||||
Pratical standard | CCC TUV-CE ETL etc. | |||||
Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM | |||||
Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. | |||||
Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
