HD P3 Indoor Full Color LED Display Module with 192mm X 192mm Panel

Quantity:
  • P3

  • RGB

  • 1W

  • IP31

  • Black

  • 192X192mm

  • PRT

  • CE, RoHs, FCC, CCC

  • 8528591090

  • Diode

  • <0.3W

  • Epistar

  • Not Waterproof

  • SMD2121

  • 64X64dots

  • Wooden Case or Paper Carton

  • Shenzhen China

HD P3 Indoor Full Color LED Module with high quality,high gray scal and high contrast ratio

Features:

1) High density,high definition,good uniformity confirm HD led video wall

2) SMD led encapsultion with wide view angle and closed view distance

3) Black led lamp body ensure high contrast ratio and high gray scale

4) Dot to dot maintain, easy and quick maintenance, save maintenance cost

5) Soft mask keep the lamps from impact

6) Can be assembled with cabinets or on rackes with magnets,for fixed install and rental use

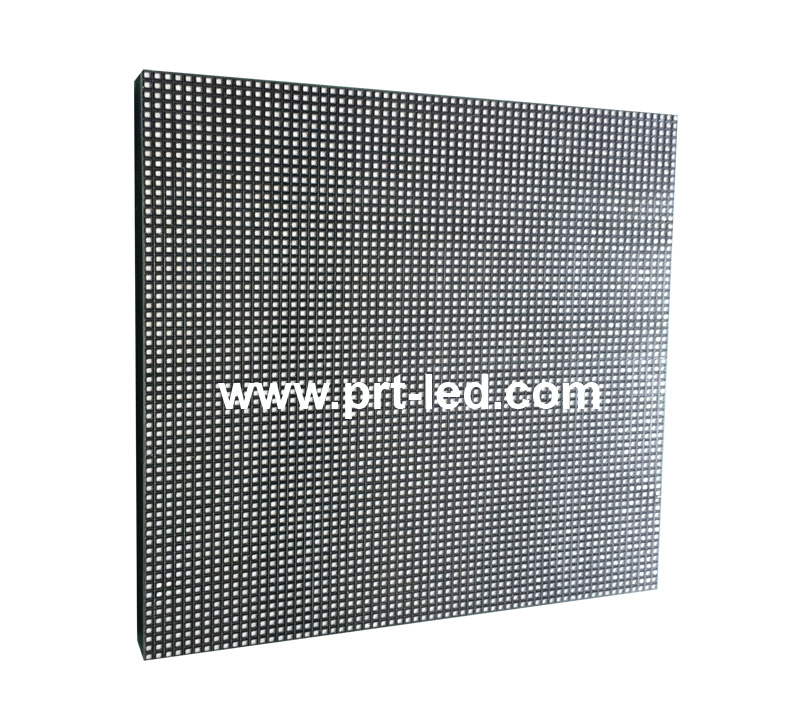

HD P3 Indoor Full Color LED Display Module with 192mm X 192mm Panel

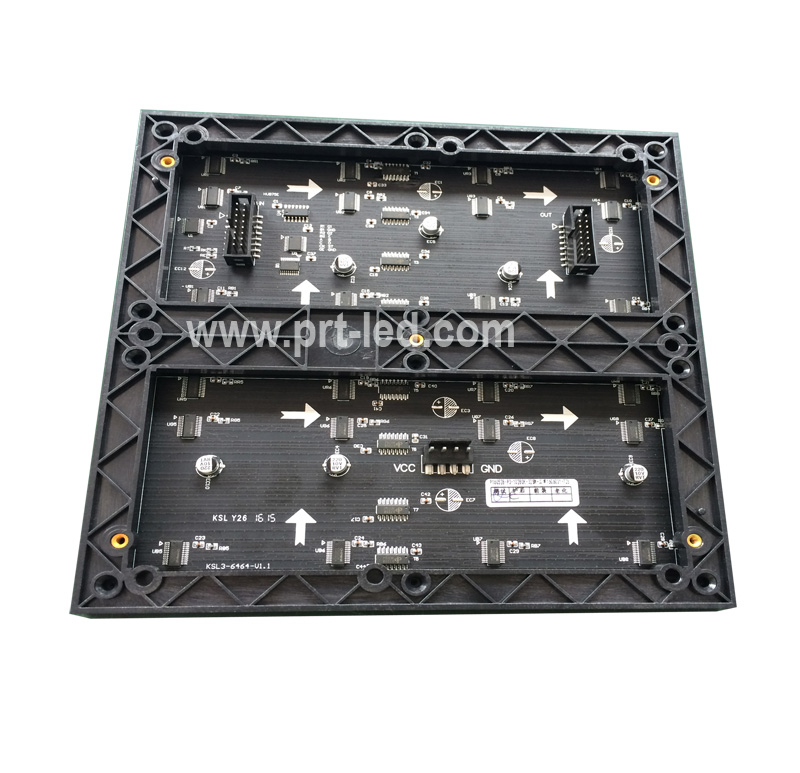

HD P3 Indoor Full Color LED Display Module with 192mm X 192mm Panel HD P3 Indoor Full Color LED Display Module with 192mm X 192mm Panel


P3 SMD2121 Indoor full Color LED Screen Specification
Pixel pitch 3mm
Pixel Configuration 1R1G1B
LED component SMD2121 black
Size of module 192mm x 192mm
Resolution of module 64x64dots
Size of cabinet 576mm x 576mm x 85mm
Resolution of cabinet 192x192dots
Material of Cabinet  Die-casting Aluminum/Iron
Weight of Cabinet 10KGS
Brightness >1800cd/m⊃2;
Density 111111dots/m⊃2;
Best viewing angle 160° /140°
Pixel Configuration 1R1G1B
Best viewing distance 3-50M
Maximum power consumption 1200W/m⊃2;
Average power consumption 640W/m⊃2;
Driving method 1/16 scan
Control method Synchronization
Gray scale Each color16384
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 5,000 hours
Frame frequence 50/60Hz
Refresh frequence >1500Hz
IP grade IP31
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
