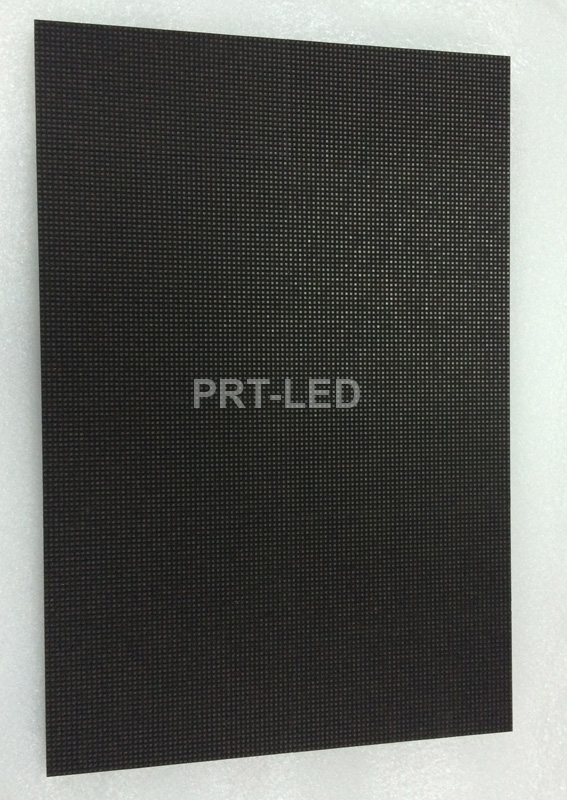

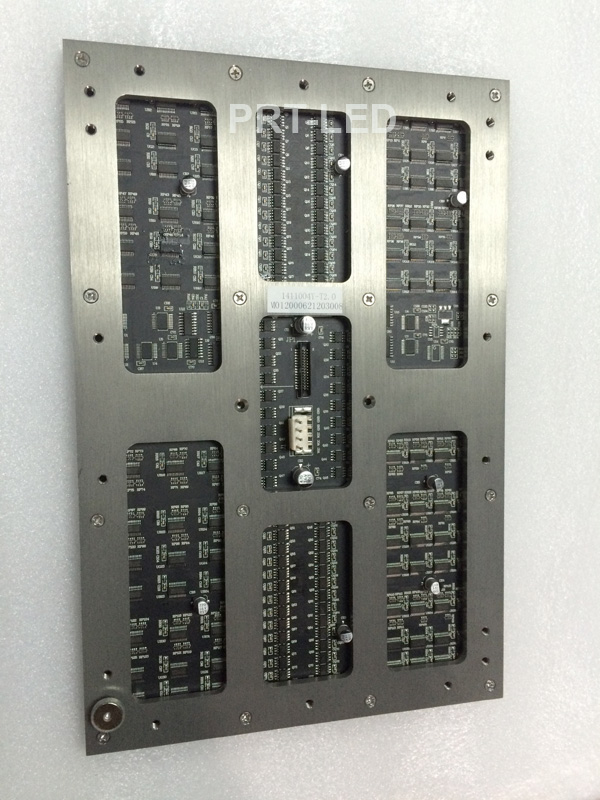

High Resolution 160000dots P2.5 Indoor Full Color LED Display Module (200*300mm)

Quantity:
  • P2.5
  • RGB
  • 15W
  • IP31
  • SMD2121black
  • 80*120dots
  • PRT
  • CE, RoHs, FCC, CCC
  • 8528591090
  • Diode
  • <0.3W
  • Epistar
  • Not Waterproof
  • 200*300mm
  • <1200
  • Wooden Case or Paper Carton
  • Shenzhen China
High Density P2.5 Full Color LED Display Module for indoor fixed or rental use, with high contrast ratio, high gray scale, high definition and reason price, sold very well on the market for small pixel pitch products

Features:

1. Small pixel pitch ensure high resolution with good vision effect,with closed view distance, friednly to eyes,

2. Black led lamp body, high contrast rate up to 4000:1, high definition up 1080P

3. Wide view angle with 160° for horizontal and 140° for vertical, no strobe,no image distortion and color cast from different angle

4. SMD LED encapsulated technology make slim thickness and good heat dissipation, energy-saving

5. Dot to dot maintain, easy and quick maintenance, save maintenance cost

6. Soft mask keep the lamps from impact,good protection

7. Can be assembled with different size's cabinets or on rackes with magnets

8. Widely used for led TV Screen, video wall, sign board,studio, broadcasting,meeting room etc.

More pictures for good understing:
1.Modules can be assembled with cabinets to be a led screen
High Resolution 160000dots P2.5 Indoor Full Color LED Display Module (200*300mm)

High Resolution 160000dots P2.5 Indoor Full Color LED Display Module (200*300mm)
High Resolution 160000dots P2.5 Indoor Full Color LED Display Module (200*300mm)
High Resolution 160000dots P2.5 Indoor Full Color LED Display Module (200*300mm)
2.Also can be fixed on a iron frame singly with magnets to be a led screen
High Resolution 160000dots P2.5 Indoor Full Color LED Display Module (200*300mm)
High Resolution 160000dots P2.5 Indoor Full Color LED Display Module (200*300mm)


Parameters for reference, different brand of LEDs and driving IC will cause different cost,please contact us for details:
P2.5 SMD1010 Indoor full Color LED Screen Specification
Pixel pitch 2.5mm
Pixel Configuration 1R1G1B
LED component SMD1010 black
Size of module 200mm x 300mm
Resolution of module 80x120
Size of cabinet 400mm x 300mm x 65mm
Resolution of cabinet 160x120
Material of Cabinet Die-casting Aluminum
Weight of Cabinet 6.5KGS
Brightness <1200cd/sq.m
Density 160000dots/sq.m
Best viewing angle 160 /140
Pixel Configuration 1R1G1B
Best viewing distance 2-30M
Maximum power consumption 1200W/sq.m
Average power consumption 640W/sq.m
Driving method 1/30 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >3000Hz
IP grade IP31
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
