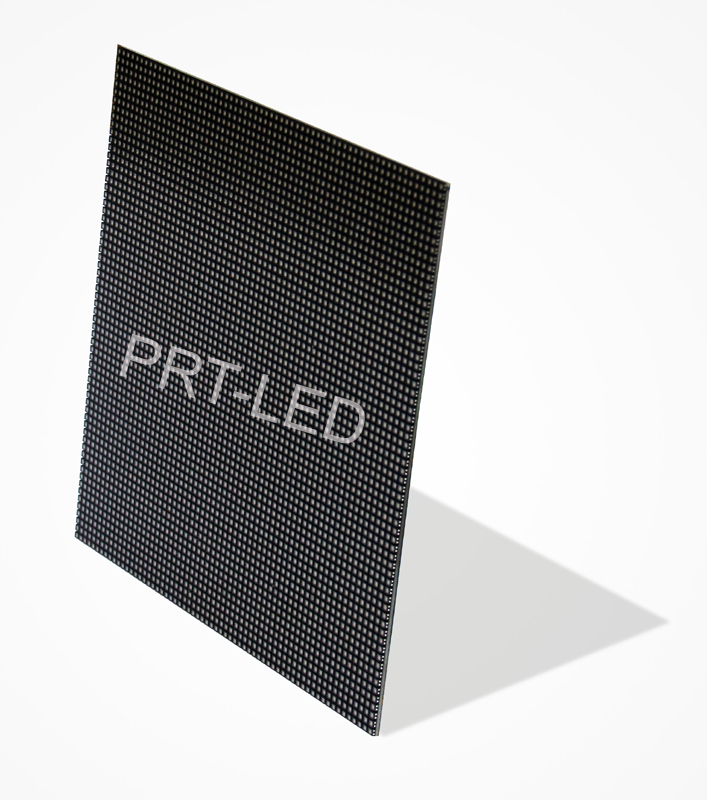

High Gray P2.5 Indoor Full Color Module for LED Video Wall

Quantity:
  • P2.5
  • Video Display
  • 1R,1G,1B
  • 1/32 Scan
  • LED Video Display
  • IP31
  • SMD2121black
  • 64X64dots
  • PRT
  • CE, RoHs, FCC, CCC
  • 8528591090
  • Full Color
  • 2.5mm
  • 160000dots/Sqm
  • Win XP, Win 2000, 98, Nt,Win7/8
  • Stage Performance, Advertising, Shopping Guide, Indoor Rental
  • CE, RoHS, CCC, FCC
  • 160X160mm
  • <1500CD/Sq.M
  • Wooden Case or Paper Carton
  • Shenzhen China
High Gray Scale P2.5 Full Color LED Module for indoor fixed or rental use, with high contrast ratio, high gray scale, high definition and reason price

Features:

1. Small pixel pitch ensure good vision effect for closed view distance, friednly to eyes,

2. Black led lamp body, high contrast rate, high definition up 1080P

3. Wide view angle with 160° for horizontal and 140° for vertical, no strobe,no image distortion and color cast from different angle

4. SMD LED encapsulated technology make slim thickness and good heat dissipation, energy-saving

5. Dot to dot maintain, easy and quick maintenance, save maintenance cost

6. Soft mask cover keep the lamps from impact,good protection

7. Can be assembled with different size's cabinets or on rackes with magnet

8. Widely used for led TV Screen, video wall, sign board,studio, broadcasting,meeting room etc.


More case pitcures:
High Gray P2.5 Indoor Full Color Module for LED Video Wall


High Gray P2.5 Indoor Full Color Module for LED Video Wall
High Gray P2.5 Indoor Full Color Module for LED Video Wall
High Gray P2.5 Indoor Full Color Module for LED Video Wall High Gray P2.5 Indoor Full Color Module for LED Video Wall


P2.5 SMD2121 Indoor full Color LED Screen Specification
Pixel pitch 2.5mm
Pixel Configuration 1R1G1B
LED component SMD2121 black
Size of module 160mm x 160mm
Resolution of module 64x64
Size of cabinet 480mm x 480mm x 65mm
Resolution of cabinet 192x192
Material of Cabinet Die-casting Aluminum
Weight of Cabinet 6.5KGS
Brightness >1200cd/sq.m
Density 160000dots/sq.m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 2-30M
Maximum power consumption 1200W/sq.m
Average power consumption 640W/sq.m
Driving method 1/32 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >3000Hz
IP grade IP31
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
