High Resolution LED SMD Indoor Module 250*250 with Full Color P3.91, P4.81

Quantity:



Inquire Add to Basket

Model NO.:
P4.81
Display Function:
Video Display
Pixel Configuration:
1R,1G,1B
Scanning Mode:
1/13
Display Type:
LED Video Display
IP Rating:
31
LED Style:
SMD2121 Black
Module Resolution:
52X52dots
Trademark:
PRT
Specification:
CE, FCC, Rohs
HS Code:
8528591090
Tube Chip Color:
Full Color
Pixel Pitch:
4.81mm
Pixel Density:
43264dots/Sq.M
System Operating Platform:
Win XP,Win 2000,Win7/8
Application:
Stage Performance, Advertising, Shopping Guide
Certification:
CE, RoHS, CCC, FCC
Module Size:
250X250mm
Brightness:
1500CD/M2
Transport Package:
Wooden Case
Origin:
Shenzhen China

Product Description

P4.81 Full Color LED Display Module with size 250x250mm for indoor rental or fixed permanen install,with cabinets or magnets ,high definition and high contrast,high gray scale

Product Features:

1. Black body leds ensure high contrast ration to 3000:1, high gray scale,good performance

2.SMD 3 IN 1 technology confirm wide view angle and light weight

3. 250x250mm module size easy to assemble panel size 500x500mm or 500x1000mm,better for different screen sizes,

4. Also can be assembled on a iron frame with magnets,don't need cabinets, easy to install and front access maintenance,save much cost for cabinets and transportation

5. Slim thickness, light weight,easy to move and transporting

6. Exquisite and tastful appearance due to structural wire layout

7. The mdule configuration design is available for P4.81, P5.68, P3.91,P6.25,P8.928 indoor and outdoor

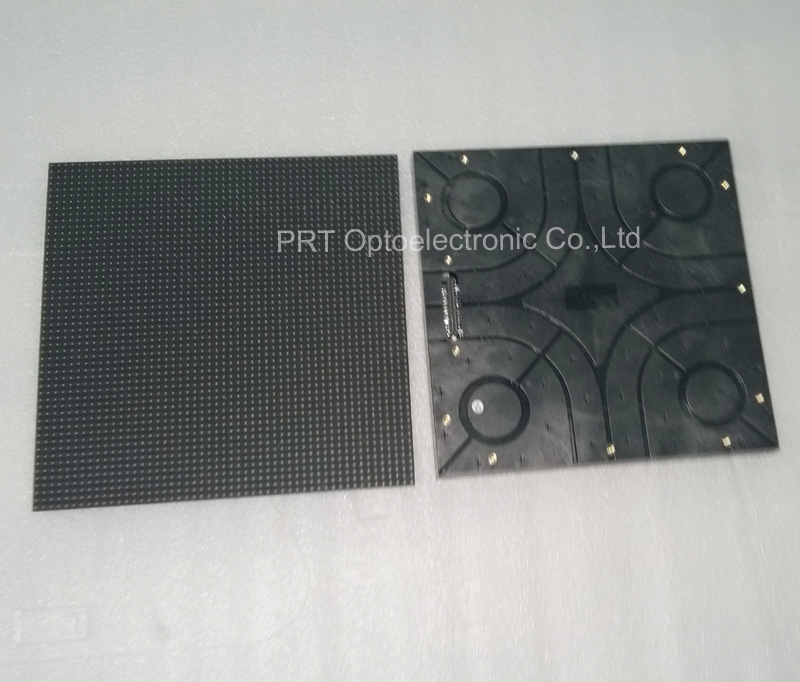

More pictures for reference:
High Resolution LED SMD Indoor Module 250*250 with Full Color P3.91, P4.81

High Resolution LED SMD Indoor Module 250*250 with Full Color P3.91, P4.81

P4.81 SMD2121 Indoor full Color LED Screen Specification
Pixel pitch			4.81mm
Pixel Configuration			1R1G1B
LED component			SMD2121 black
Size of module			250mm*250mm
Resolution of module			52x52
Size of cabinet			500x500mm/ 500mm x 1000mm
Resolution of cabinet			128x128 dots or 128x256dots
Material of Cabinet			Die-casting Aluminum/Aluminum profile
Weight of Cabinet			6.8kgs/13KGS
Brightness			>1500cd/sq.m
Density			43264dots/sq.m
Best viewing angle			140 /140
Pixel Configuration			1R1G1B
Best viewing distance			4-50M
Maximum power consumption			1100W/sq.m
Average power consumption			600W/sq.m
Driving method			1/16 scan
Control method			Synchronization
Gray scale			65536
Colors			256256256
Color temperature			3200-9300k
Uniformity			97%
Working voltage			AC220V/110V±10%
Working temperature			-20ºC~+50ºC±10%
Working humidity			10% ~ 90%
MTBF			10,000 hours
Frame frequence			50/60Hz
Refresh frequence			>1920Hz
IP grade			IP31
Life Span			100,000 hours
Data transafer method			RJ45
Pratical standard			CCC TUV-CE ETL etc.
Effectivce Communication Distance(without relay)			Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM
Accepting signal with video processor			PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform			WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
