Magnetic Front Design LED Display Modules of Indoor/Outdoor P3.91/P4.81/P6.25

Quantity:
  • P3.91
  • Video Display
  • 1R,1G,1B
  • 1/16 Scan
  • LED Video Display
  • IP31
  • SMD2121 Black
  • 64X64dots
  • Die-Casting Aluminum
  • Flight Case or Wooden Case
  • Shenzhen China
  • Full Color
  • 3.91mm
  • 65746dots/Sq.M
  • Win XP,Win 2000,98,Nt
  • Stage Performance, Advertising, Shopping Guide
  • CE, RoHS, CCC, FCC
  • 250X250mm
  • 500X500mm
  • PRT
  • CE, FCC, Rohs
  • 8528591090
P3.91 Full Color LED Display panel with size 500x500mm front access cabinets for indoor fix installation or rental use,with magnetic front design modules

Product Features:

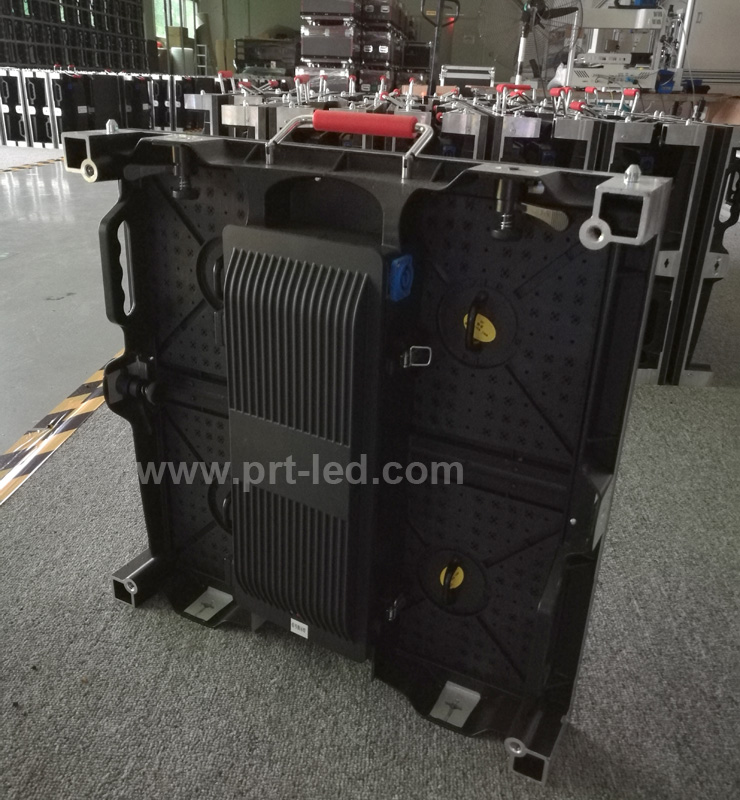

1. Made with same module size of traditional 250x250mm size,only some different for the external members, and with a handle at the back of module,for take the module out of the cabinets

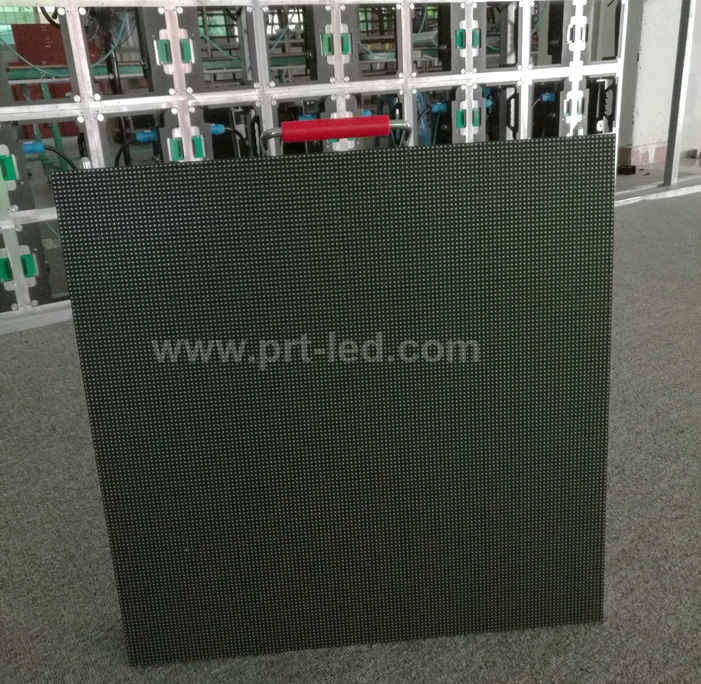

2.Same cabinets configuration design as normally, only with magnetic front design,adhere the modules on tightly with magnets,easy and fast to install and dismantle with a simple push
,save up 50% time for assemble and disassemble

3.Same cabinets can be reused for different pixel pitch products with same module size,it is convenient to change your screen and save much cost for cabinets,only need to change modules if you want to get a new screen

4. The 3 in 1 intergrated back of power supply,receving card and HUB board makes replacement simply,with simple plug

5. Unique muting and fan free design seems much more environment

6. Exquisite and tasteful appearance due to structural wire layout

7. The configuration design is available for P4.81,P3.91,P6.25 outdoor and indoor modules

More pictures for reference:
Magnetic Front Design LED Display Modules of Indoor/Outdoor P3.91/P4.81/P6.25

Magnetic Front Design LED Display Modules of Indoor/Outdoor P3.91/P4.81/P6.25

Magnetic Front Design LED Display Modules of Indoor/Outdoor P3.91/P4.81/P6.25 Magnetic Front Design LED Display Modules of Indoor/Outdoor P3.91/P4.81/P6.25

Magnetic Front Design LED Display Modules of Indoor/Outdoor P3.91/P4.81/P6.25

Magnetic Front Design LED Display Modules of Indoor/Outdoor P3.91/P4.81/P6.25


Notes:parameter as below are only for reference,different requests for driving IC,power supply and led type will cause cost,please contact us for the details,or tell us your detail requirements,we will answer whin 24 hours
P3.91 SMD2121 Indoor full Color LED Screen Specification
Pixel pitch 3.91mm
Pixel Configuration 1R1G1B
LED component SMD2121 black
Size of module 250mm x 250mm
Resolution of module 64x64dots
Size of cabinet 500x500mm/500mm x 1000mm x 75mm
Resolution of cabinet 128x128/128x256 dots
Material of Cabinet Die-casting Aluminum/Aluminum
Weight of Cabinet 8kgs/14kgs
Brightness >1600cd/sq.m
Density 65746dots/sq.m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 3-50M
Maximum power consumption 1200W/sq.m
Average power consumption 640W/sq.m
Driving method 1/16 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP31
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
