P2.5
PRTLED
8528591090

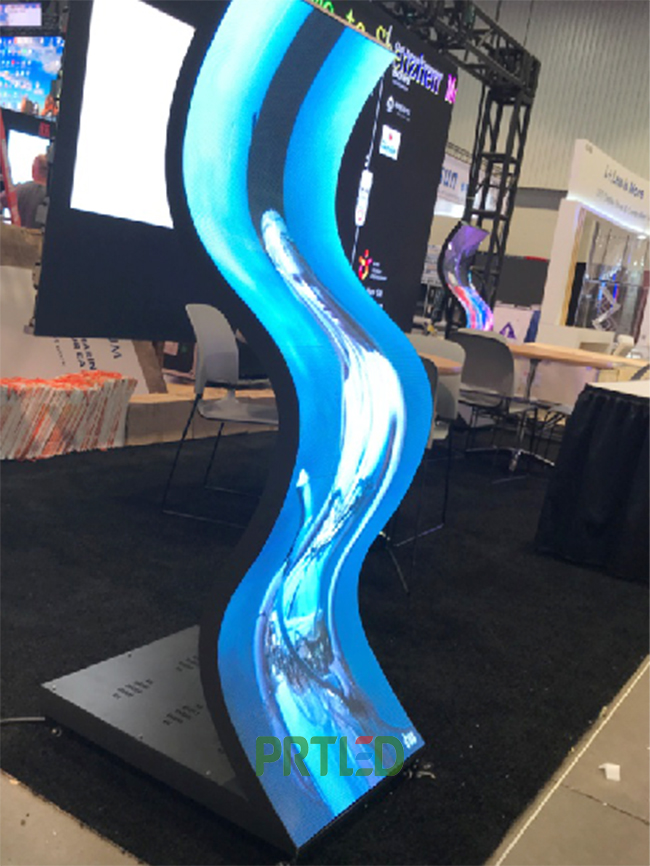

Soft/ flexible full Color LED Display Module for indoor use,with magnets for different curved shaped led screens
Features:
1. Small pixel pitch ensure good vision effect for closed view distance, friednly to eyes,
2. Black led lamp body, high contrast rate, high definition up 1080P
3. Wide view angle with 160° for horizontal and 140° for vertical, no strobe,no image distortion and color cast from different angle
4. SMD LED encapsulated technology make slim thickness and good heat dissipation, energy-saving
5. Dot to dot maintain, easy and quick maintenance, save maintenance cost
6. Small module size is easy for different screen sizes,Cylindrical screens with different diameters
7. Modules with magnetics combined for different shaped screens seamlessly
8. Widely used for different curved,Cylindrical screens with different screens as request
We have different pixel pitch for this kind of soft led modules
| Product | P1.25 | P1.579 | P1.667 | P1.875 | P2 | P2.5 | P3 | P4 |
| LED component | 1R1G1B(full color) | |||||||
| Led type | SMD1010 | SMD1010/SMD1212 | SMD1212/SMD1515 | SMD1515 | SMD1515/SMD2121 | SMD2121 | ||
| Density(dots/m2) | 640000 | 401111 | 360000 | 284444 | 250000 | 160000 | 111111 | 62500 |
| Module size(mm) | 240x120x8.6(L x W x D) | |||||||
| Module dots | 192x96 | 152x76 | 144x72 | 128x64 | 120x60 | 96x48 | 80x40 | 60x30 |
| Scan mode | 1/48 | 1/38 | 1/36 | 1/32 | 1/30 | 1/24 | 1/20 | 1/15 |
| Driving IC(optional) | ICN2065 | ICN2065 | ICN2065 | ICN2153 | ICN2153 | ICN2153 | ICN2038S | ICN2038S |
| Refresh rate(Hz) | 3840 | 3840 | 3840 | ≥2880 | ≥2880 | ≥1920 | ≥1920 | ≥1920 |
| Frequency (Hz) | 50&60 | |||||||
| Gray scale(bit) | 12-16(adjustable) | |||||||
| Interface | HUB75 | |||||||
| Module material | Silicone soft bottom case | |||||||
| Module weight(kg/pc) | 0.215 | 0.203 | 0.195 | 0.216 | 0.205 | 0.175 | 0.175 | 0.170 |
| Cabinet size | According to order | |||||||
| Cabinet material | iron | |||||||
| Cabinet flatness(mm) | ≤ 0.2 | ≤ 0.3 | ||||||
| IP grade | IP45 | |||||||
| Install/maintain mode | Front/back | |||||||
| brightness(nits) | ≥600 | ≥650 | ≥700 | ≥750 | ≥750 | ≥750 | ≥900 | ≥850 |
| Color temperature(K) | 3000-10000(adjustable) | |||||||
| Uniformity | ≥97% | |||||||
| View angle | V≥160°, H ≥140° | |||||||
| Contrast ratio | 5000:1 | |||||||
| Supply voltage DC(V) | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Max current DC(A) | 3.8 | 3.5 | 3.2 | 3 | 3 | 3 | 3 | 3 |
| Max power(w / pc) | 19 | 17.5 | 16 | 15 | 15 | 15 | 15 | 15 |
| Input voltage AC(V) | 110-220 | |||||||
| Max power(w/m2) | 1000 | 1000 | 800 | 800 | 800 | 800 | 800 | 800 |
| Ave.power(w/m2) | 340 | 340 | 270 | 270 | 270 | 270 | 270 | 270 |
| Lift span(hrs) | 100,000 | |||||||
| Working temperature(ºC) | -10-50 | |||||||
| Storage temperature(ºC) | -20-60 | |||||||
| Working humidity(RH) | 20-85% | |||||||
| Storage humidity(RH) | 20-80% | |||||||
