DIP346 P16 LED Display Screen for Outdoor Rental

  • P16

  • IP65

  • 1R, 1G, 1B

  • 300W / m⊃2;

  • Static Scan

  • Advertising,Stage Performance,Rental

  • DIP346

  • 640X640mm

  • PRT

  • CE, FCC. ROHS, 3C

  • 8528591090

  • Full Color

  • 16mm

  • Video Display

  • 3906DOT/Sq.M

  • LED Video Display

  • CE, RoHS, CCC, FCC

  • 320X320mm

  • Die-Casting Aluminum Alloy/Iron

  • Wooden Case or as Required

  • Shenzhen China

P16 outdoor full color led display screen is a classical product choosed for outdoor permanent install or for rental use, with aluminum or iron cabinets,high brightness and competitive price,it is a good cost performance product


1.DIP led encapsulation confirm the high brightness even under sunlight,anti-corrosion,antifogging,and good waterproof IP65,long life span

2.Big pixel pitch,Long view distance, Good vision effect from far away

3.Special cabinet design,made with slim Aluminum ally, small panel size, light weight,and easy to move, better for rental,and packed with flight case, convenient to transport

4.Brightness can be adjusted automatically according to different surrondings,can be set to open and close the screen on fixed automatically

5.Can be fixed on the wall, on the street, on top of building,or be hung for to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, antimation etc, connect with PC computer or network, also can remoto control with asynchronous system.

6.Widely used for commercial advertising, stage background, traffic led sign,rental led display, sports perimeter display screen etc.

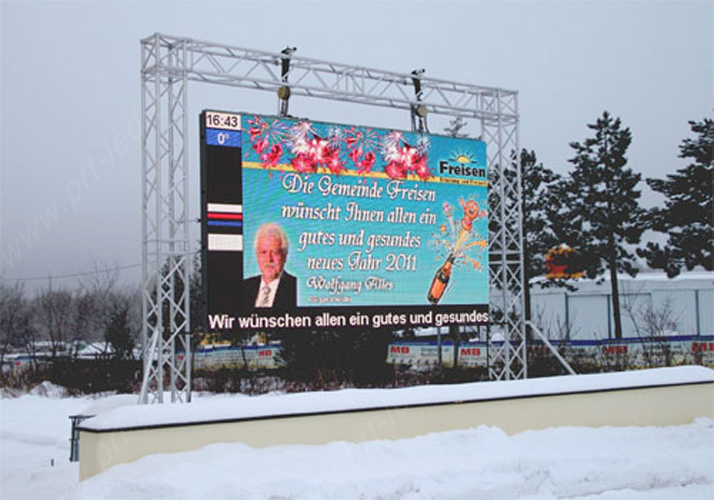

More pictures for reference:
DIP346 P16 LED Display Screen for Outdoor Rental

DIP346 P16 LED Display Screen for Outdoor Rental
DIP346 P16 LED Display Screen for Outdoor Rental
DIP346 P16 LED Display Screen for Outdoor Rental

DIP346 P16 LED Display Screen for Outdoor Rental
DIP346 P16 LED Display Screen for Outdoor Rental


P16 Outdoor full Color LED Screen Specification
Pixel pitch 16mm
Pixel Configuration 1R1G1B
LED component DIP346(Epsitar chips)
Size of module 320mm x 320mm
Resolution of module 20x20
Size of cabinet 640mmx 640mm x 70mm
Resolution of cabinet 40x40
Material of Cabinet Die-casting Aluminum
Weight of Cabinet <17.50KGS
Brightness >7000cd/sq.m
Density 3906dots/sq.m
Best viewing angle 110 /50
Best viewing distance 10-150M
Maximum power consumption <700W/sq.m
Average power consumption <300W/sq.m
Driving method Static
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >3000Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
