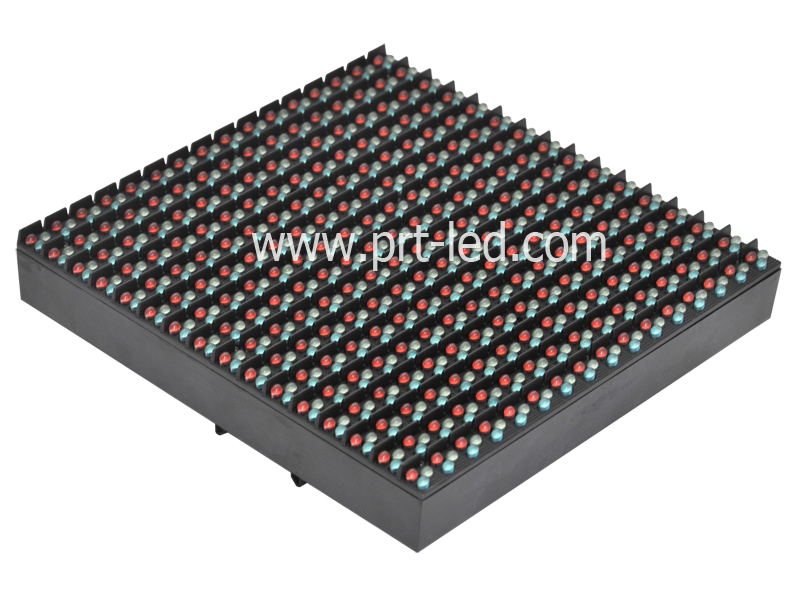

Energy-Saving Outdoor DIP346 Display P10 RGB Module with 4s (3.8V power supply)

Quantity:
  • P10(3.8V)
  • IP65
  • 1R, 1G, 1B
  • 220W / m⊃2;
  • 1/4 Scan
  • Advertising
  • DIP346
  • 16X16dots
  • PRT
  • CE, RoHs, FCC, CCC
  • 8528591090
  • Full Color
  • 10mm
  • Video Display
  • 10000 dot / m⊃2;
  • LED Video Display
  • CE, RoHS, CCC
  • 160X160mm
  • >7500nits
  • Wooden Case or Paper Carton
  • Shenzhen China
Energy-saving P10 Outdoor Full Color LED Module made with DIP346 LEDs, high brightness up to 7500nits/sq.m,lower power consumption

Product Advantages:

1. Special design PCB board confirm energy-saivng,only need 3.8V for power supply,
   the good heat dissipation and long life time>100000hours

2. Unique lighting distribution curve, ensure visual effect is perfect seeing from different angle and long view distance.

3. High density,high definition, smooth and good quality vision

4. Dot to dot maintenance, easy and quick to repair, save much time and labour cost

5. Soft mask keep the lamps from impact,good protection,keep good display vision

6. Good waterproof IP65,meet different outer weather, heavy raining, strong sunny and fogging

7. 2 years quality warranty,with CE,ROHS,FCC certificates

8. Can be assembled with cabinets or on rackes with magnet

More pictures:

Energy-Saving Outdoor DIP346 Display P10 RGB Module with 4s (3.8V power supply)Energy-Saving Outdoor DIP346 Display P10 RGB Module with 4s (3.8V power supply)
Energy-Saving Outdoor DIP346 Display P10 RGB Module with 4s (3.8V power supply)
Energy-Saving Outdoor DIP346 Display P10 RGB Module with 4s (3.8V power supply)Energy-Saving Outdoor DIP346 Display P10 RGB Module with 4s (3.8V power supply)


P10 Outdoor full Color LED Screen Specification
Pixel pitch 10mm
Pixel Configuration 1R1G1B
LED component DIP346(Epistar)
Size of module 160mm x 160mm
Resolution of module 16x16
Size of cabinet 960mmx 960mm x150mm(standard size)
Resolution of cabinet 96x96dots
Material of Cabinet Iron with back doors
Weight of Cabinet <60KGS
Brightness >7500cd/sq.m
Density 10000dots/sq.m
Best viewing angle 110 /50
Best viewing distance 10-150M
Maximum power consumption <600W/sq.m
Average power consumption <200W/sq.m
Driving method 1/4 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1500Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
