SMD3535 3 in 1 P10 RGB LED Module with High Brightness

Quantity:



Inquire Add to Basket

Model NO.:
P10-SMD3535
Emitting Color:
RGB
Power:
10W
IP Rating:
IP65
LED Encapsulation:
SMD3535
Module Resolution:
32X16dots
Trademark:
PRT
Specification:
CE, FCC. ROHS, 3C
HS Code:
8528591090
LED Light Source:
Diode
1 LED Power:
<0.3W
LED Chips:
Epistar
Waterproof:
Waterproof
Module Size:
320X160mm
Brightness:
>6000nits
Transport Package:
Wooden Case or Flight Case
Origin:
Shenzhen China

Product Description

SMD3535 waterproof outdoor P10 LED Module with 320x160mm size,high brightness,good uniformity and good waterproof

Product Features:

1) Brightness up to 6000nits,can be seen under sunshine,and long view distance from 100M away

2) Good waterproof IP65, long life span>100,000hours

3) LED lamps handle with SMD led encapsulation confirm wide view angle and good uniformity

4) Dot-to-Dot maintainance, easy and quick maintain, save working time and cost

5) Slim thickness, light weight,low power consumption,energy-saving

6) Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, connect with PC computer or network, also can remoto control with asynchronous system.

7) Widely used for commercial advertising display, promotion display, stage background screen, mobile led billboard, Traffic sign board, rental led display, sports perimeter score board and advertsing display etc.

More pictures for reference:

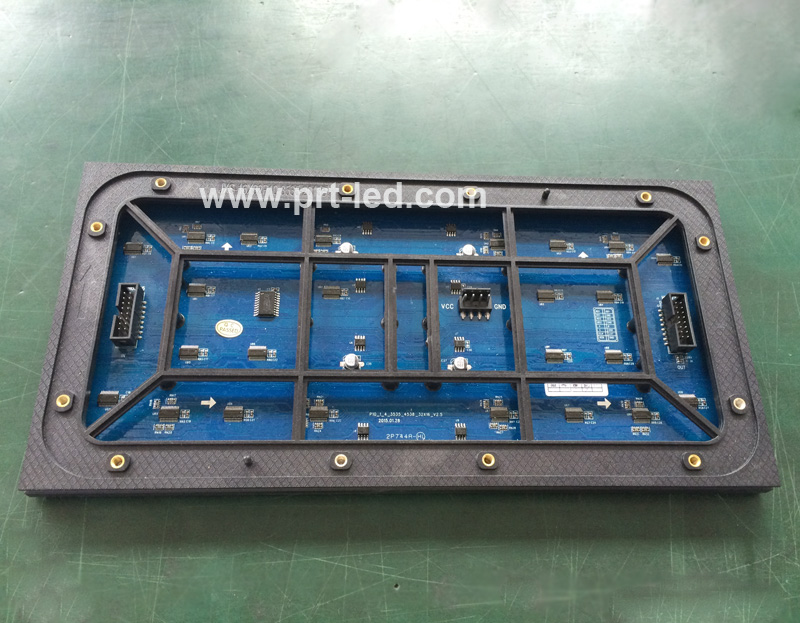

SMD3535 3 in 1 P10 RGB LED Module with High Brightness

SMD3535 3 in 1 P10 RGB LED Module with High Brightness

P10 Outdoor full Color LED Module Specification
Pixel pitch	10mm
Pixel Configuration	1R1G1B
LED component	SMD3535
Size of module	320mm x 160mm
Resolution of module	32 x16
Size of cabinet	960mmx 960mm /1280mm x 960mm
Resolution of cabinet	96x96 / 128 x 96
Material of Cabinet	Iron with back doors
Weight of Cabinet	<50KGS
Brightness	>6000cd/sq.m
Density	10000dots/sq.m
Best viewing angle	140 /140
Best viewing distance	10-100M
Maximum power consumption	<800W/sq.m
Average power consumption	<300W/sq.m
Driving method	1/4 scan
Control method	Synchronization
Gray scale	65536
Colors	256256256
Color temperature	3200-9300k
Uniformity	97%
Working voltage	AC220V±10%
Working temperature	-20ºC~+50ºC±10%
Working humidity	10% ~ 90%
MTBF	10,000 hours
Frame frequence	50/60Hz
Refresh frequence	>1800Hz
IP grade	IP65
Life Span	100,000 hours
Data transafer method	RJ45
Pratical standard	CCC TUV-CE ETL etc.
Effectivce Communication Distance(without relay)	Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM
Accepting signal with video processor	PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform	WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
