New Outdoor P4 Full Color LED Module with High Brightness 6000nits

Quantity:
  • P4 outdoor
  • IP31
  • 1R, 1G, 1B
  • 600W / m⊃2;
  • 1/16 Scan
  • Advertising, Rental
  • SMD1921
  • 64X32dots
  • Wooden Case or Paper Carton as Request
  • Shenzhen China
  • Full Color
  • 4mm
  • Video Display
  • 62500nits/Sq.M
  • LED Video Display
  • CE, RoHS, CCC
  • 256X128mm
  • PRT
  • CE, RoHs, FCC, CCC
  • 8528591090
New Produce, P4 Full Color LED Module for outdoor, with 256x128mm size
with high resolution and high brightness,for outdoor permanent install or rental use


Product features:

1. SMD led encapsultion ensure wide view angle,good uniformity

2.Slim thickness and light weight, easy to move and transport,save package rooms and shipping cost

3. Nation star sealed 1921 small leds confirm high quality, high contrast ratio, high gray scale, perfect display vision

4.High brightness up to 6000nits/sq.m, good waterproof, used for outdoor to meet different weather condition

5. Dot to dot maintenance make repaireing easily and quickly, save much material cost and labour cost

6. Coverred with mask keep the lamps from impact,good protection

7. Can be assembled with cabinets or on rackes with magnets

More pictures for good understanding:



New Outdoor P4 Full Color LED Module with High Brightness 6000nits
Stage background for outdoor rental

New Outdoor P4 Full Color LED Module with High Brightness 6000nits
Ageing before delivery



New Outdoor P4 Full Color LED Module with High Brightness 6000nits

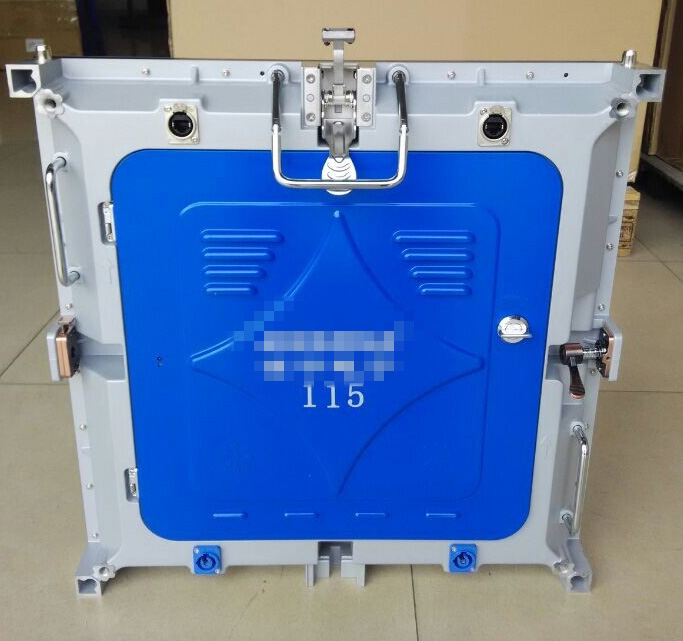

Assembled with die-casting cabinets for rental, small size and light weight,easy to move and install

New Outdoor P4 Full Color LED Module with High Brightness 6000nits




P4 SMD2121 Indoor full Color LED Screen Specification
Pixel pitch 4mm
Pixel Configuration 1R1G1B
LED component SMD1921
Size of module 256mm x 128mm
Resolution of module 64x32
Size of cabinet 512mm x 512mm x 65mm
Resolution of cabinet 128x128
Material of Cabinet Die-casting Aluminum
Weight of Cabinet 8.0KGS
Brightness >6000cd/sq.m
Density 62500dots/sq.m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 3-50M
Maximum power consumption 1200W/sq.m
Average power consumption 640W/sq.m
Driving method 1/16 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP31
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
