P10
PRTLED
8531200000

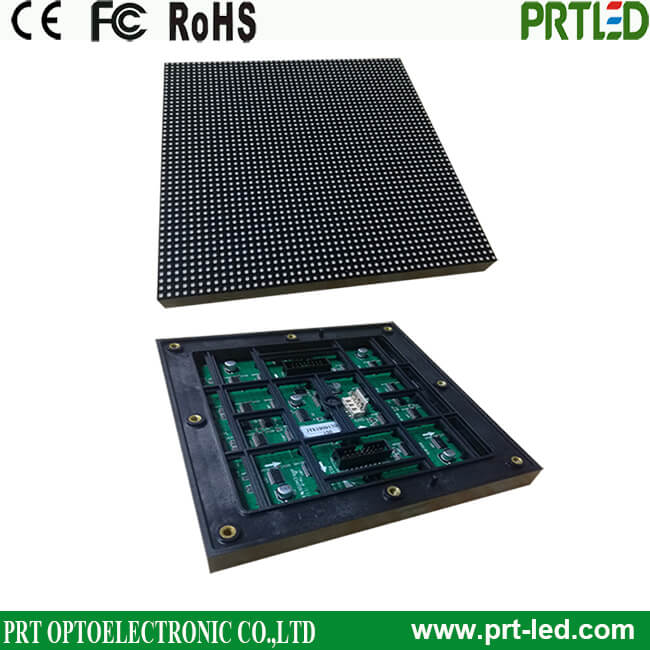

Outdoor P10 full color led display module with size of 320x320mm,high brightness, slim thickness and good uniformity
Product features:
1. Good waterproof IP65 for front and rear sides, long life span>100,000 Hours
2. SMD led encapsulation confirm wide view angle and good uniformity
3. Dot-to-Dot maintainance, easy and quick maintain, save working time and cost
4. Hight brightness, up to 6000nits, good performance even under sunshine
5. Low power consumption, low noise created, low transportation costs

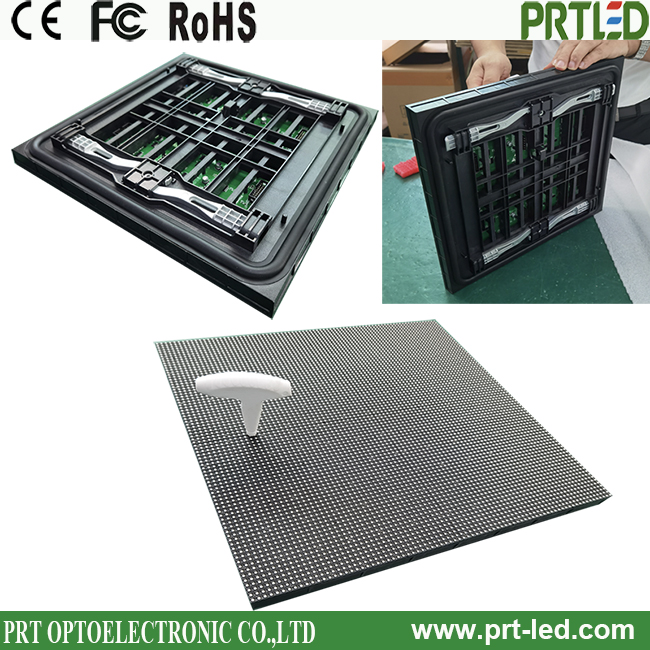

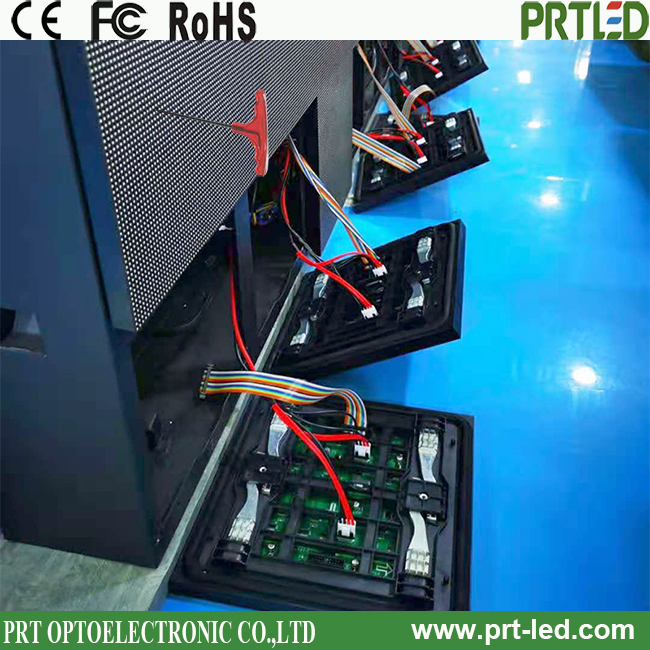

6. Front service for maintenance conveniently,and save back space,better for wall mounting
7.Can be used for stack installation or be hung on trusee to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, connect with PC computer or network
See more pictures for reference,please contact us for details:
| P10 Outdoor full Color LED Screen Specification | |
| Pixel pitch | 10mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD3535 black |
| Size of module | 320mm x 320mm |
| Resolution of module | 32 x 32 |
| Size of cabinet | 960 mm x 960 mm x 25mm |
| Resolution of cabinet | 96x96 |
| Material of Cabinet | Iron steel /Aluminum |
| Weight of Cabinet | < 35 KGS |
| Brightness | >6000cd/sq.m |
| Density | 10000 dots/sq.m |
| Best viewing angle | 140 /140 |
| Best viewing distance | 10-100M |
| Maximum power consumption | <1000W/sq.m |
| Average power consumption | <300W/sq.m |
| Driving method | 1/2 scan |
| Control method | Synchronization/Asynchronization |
| Gray scale | 65536 |
| Colors | 256 x 256 x 256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >3840Hz |
| IP grade | IP65 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
| Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
