High Brightness Outdoor LED Module with Full Color (size of 320X160mm)

Quantity:
  • P10, P8, P6.67
  • IP65
  • 1R, 1G, 1B
  • 300W / m⊃2;
  • 1/2 Scan
  • Advertising
  • SMD3535
  • 32X16dots
  • PRT
  • CE, FCC. ROHS, 3C
  • 8528591090
  • Full Color
  • 10mm
  • Video Display
  • 10000 dot / m⊃2;
  • LED Video Display
  • CE, RoHS, CCC, ETL, FCC
  • 320X160mm
  • IP65
  • Wooden Case or as Required
  • Shenzhen China

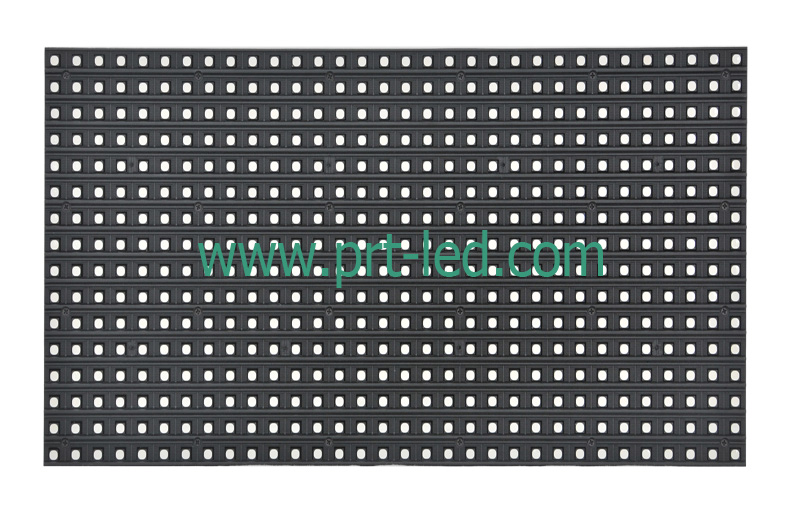

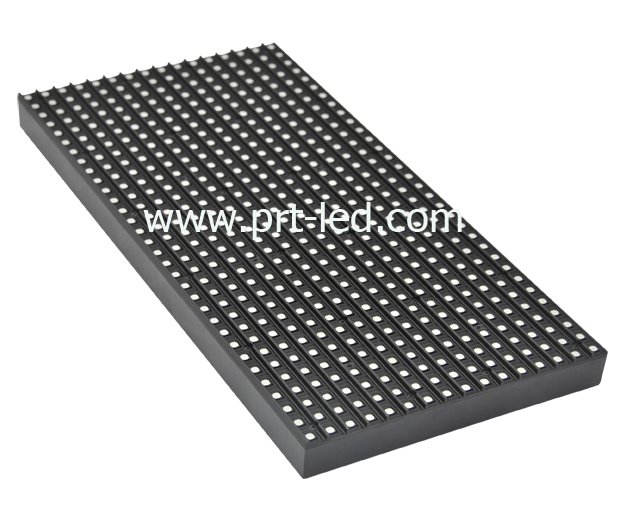

Outdoor Waterproof  Full Color LED Module with size 320x160mm,high brightness and high definition,for outdoor permanent or rental use,suit to outdoor P6.67,P8 ,p10 and P16 SMD3535

Product features:

1.  SMD3535 LEDS with glue,good waterproof IP65, long life span>100000hours

2.  SMD led encapsulation confirm wide view angle and high brightness>6000nits

3. Dot-to-Dot maintainance, easy and quick maintain, save working time and cost

4. Low power consumption, low noise created, good environment protection

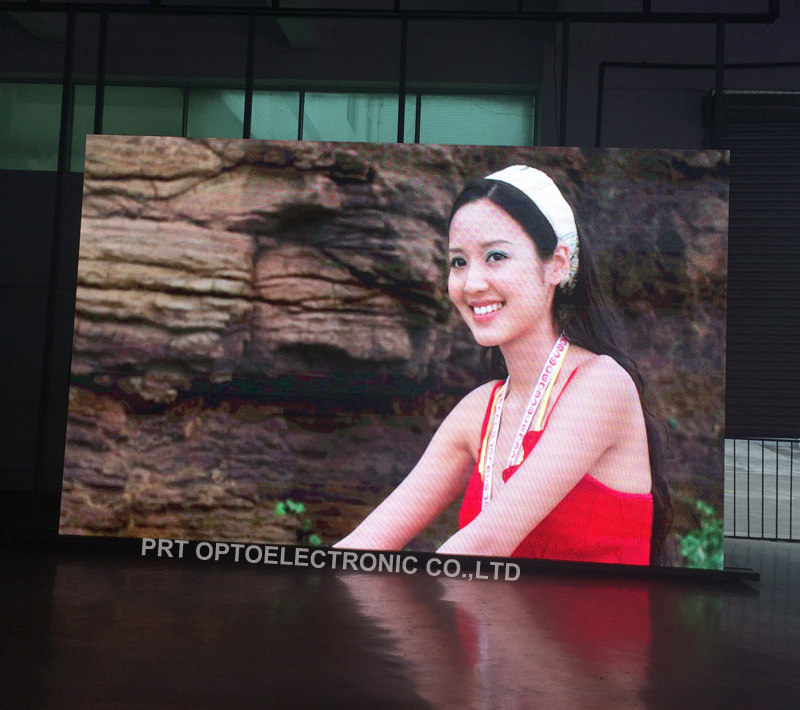

5. Can be used for fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, connect with PC computer or network, also can remoto control with asynchronous system.



High Brightness Outdoor LED Module with Full Color (size of 320X160mm)
High Brightness Outdoor LED Module with Full Color (size of 320X160mm)
High Brightness Outdoor LED Module with Full Color (size of 320X160mm)
High Brightness Outdoor LED Module with Full Color (size of 320X160mm)
High Brightness Outdoor LED Module with Full Color (size of 320X160mm)

Items Parameter P6.67Full Color   P8 Full Color P10 Full Color P5 Full Color
Module  Pixel Configuration  1R1G1B,SMD3535 1R1G1B,SMD3535 1R1G1B,SMD3535 1R1G1B,SMD2727
Pixel Pitch  6.67 8 10 5
Module Resolution(W×H)  48×24 40×20 32×16 64×32
Module Size(mm)  320×160  320x160 320x160 320x160
Weight Per Module(KG) 0.6 0.58 0.56 0.6
Max Power Consumption(W)  35 35 28 35
Cabinet(Panel)  Modue Qty Per Cabinet(W×H)  2×2 3x6 3x6 2x4
Cabinet Resolution(W×H)  96×96 120×120 96×96 128×128
Cabinet Size (H) 640×640 960x960 960x960 640x640
Weight of One Cabinet(Kg)  20 45 45 20
Pixel Density(pixel/SQM)  22,478 15,625 10,000 40000
Cabinet Flatness(mm)  ≤0.1 ≤0.1 ≤0.1 ≤0.1
Cabinet Material  Iron/Aluminum
Brightness Calibration by Per Dot  Yes
Optical  Parameters White Balance Brightness(Nits) 5,000 5500 7000 6,000
Color Temperature 3,200-9,300deg.k(adjustable)
View Angle Horizontal 120°;Vertical 120°
Brightness Uniformity 97%
Max. Contrast 4000:1
Max Power Consumption(SQM) 680W 680W 550W 720W
Electrial  Parameters Average Power Consumption(SQM) 300W 300W 240W 340W
Input Voltage(VAC) 110±20% or 240±20%
Driving Module 1/8 1/5 1/4 1/8
Processing Performance Frame Rate(HZ) 50/60
Refresh Frequency(HZ) ≥1,800 ≥1,800 ≥1,800 1,800
Best View Distance(m) 6-35 7.5-40 9-50 5-30
Using Parameters Stored Humidity(RH) 10 - 95%(no dew formation)
Working Humidity(RH) 10 - 90%(no dew formation)
Waterproof YES(IP65)
Lifetime(Hours) 100,000
Working Temperature(ºC) -20~+45
Stored Temperature(ºC) -30~+60
