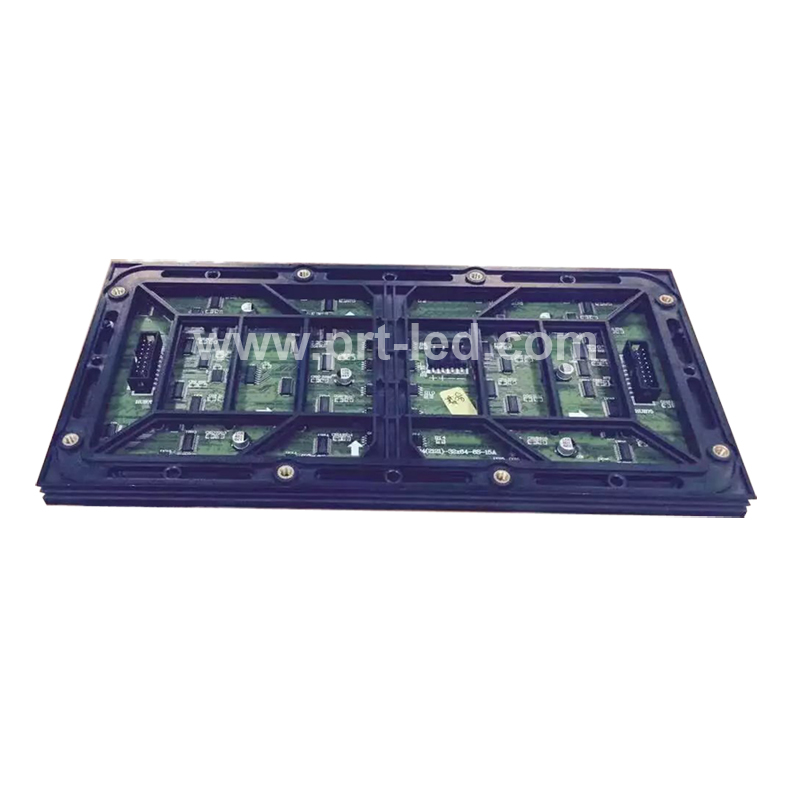

P4 Full Color LED Module for outdoor, with 256x128mm size
with high resolution and high brightness,for outdoor permanent install or rental use
Product features:
1. SMD led encapsultion ensure wide view angle,good uniformity
2.Slim thickness and light weight, easy to move and transport,save package rooms and shipping cost
3. Nation star sealed 1921 small leds confirm high quality, high contrast ratio, high gray scale, perfect display vision
4.High brightness up to 6000nits/sq.m, good waterproof, used for outdoor to meet different weather condition
5. Dot to dot maintenance make repaireing easily and quickly, save much material cost and labour cost
6. Coverred with mask keep the lamps from impact,good protection
7. Can be assembled with cabinets or on rackes with magnets
Ageing before delivery
| P4 SMD Outdoor full Color LED Screen Specification | |
| Pixel pitch | 4mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD1921 |
| Size of module | 256mm x 128mm |
| Resolution of module | 64x32 |
| Size of cabinet | 512mm x 512mm x 65mm |
| Resolution of cabinet | 128x128 |
| Material of Cabinet | Die-casting Aluminum |
| Weight of Cabinet | 8.0KGS |
| Brightness | >6000cd/sq.m |
| Density | 62500dots/sq.m |
| Best viewing angle | 140 /140 |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | 3-50M |
| Maximum power consumption | 1200W/sq.m |
| Average power consumption | 640W/sq.m |
| Driving method | 1/16 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1920Hz |
| IP grade | IP31 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
| Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
