Waterproof Outdoor Advertising Display LED Module P16 256*256 with High Brightness 8000nits

Quantity:
  • P16

  • RGB

  • 10W

  • IP65

  • DIP346

  • 16X16dots

  • PRT

  • CE, RoHs, FCC, CCC

  • 8528591090

  • Diode

  • <0.3W

  • Epistar

  • Waterproof

  • 256X256mm

  • >7500nits

  • Wooden Case or Paper Carton

  • Shenzhen China

Full color P16 wholesale outdoor led module with size 256x256mm,for outdoor advertising,with high brightness,up to 8000cd/sq.m

Product Features:

1. NEW design PCB board confirm goog heat dissipation and high brightness

2. Unique lighting distribution curve, ensure visual effect is perfect seeing from different angle

3. Big pixel pitch make long view distance and good quality vision

4. Dot to dot maintain, easy and quick maintenance, save maintenance cost

5.  Good waterproof IP65, can stand outdoor without any additional protection,to meet different bad weather,long life time over 100000 hours

6.  High quality up to standard of CE,Rohs,FCC, and with 3 years quality warranty

7. Can be assembled with cabinets or on rackes with magnet, for outdoor permanent fixed installation.

8. Widely used for advertising on the wall, by roadside,public, for traffic sign on highway with full color dynamic images and videos,update display content with computer or USB or wifi or 3G/4

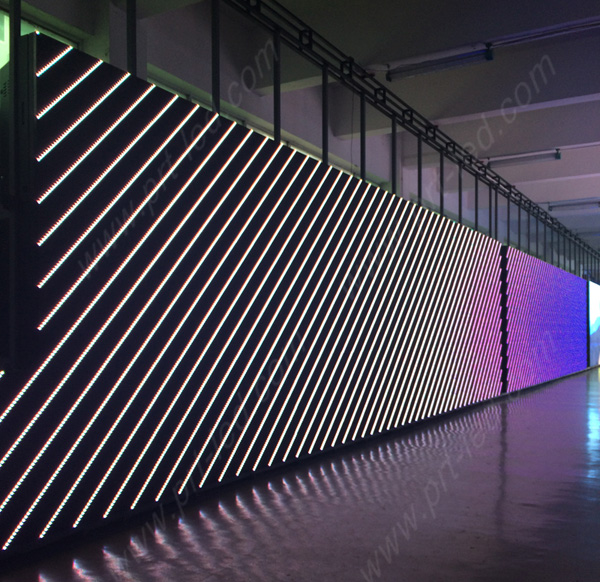

More pictures as following:
Waterproof Outdoor Advertising Display LED Module P16 256*256 with High Brightness 8000nitsWaterproof Outdoor Advertising Display LED Module P16 256*256 with High Brightness 8000nitsWaterproof Outdoor Advertising Display LED Module P16 256*256 with High Brightness 8000nits
Waterproof Outdoor Advertising Display LED Module P16 256*256 with High Brightness 8000nits

Waterproof Outdoor Advertising Display LED Module P16 256*256 with High Brightness 8000nits

Waterproof Outdoor Advertising Display LED Module P16 256*256 with High Brightness 8000nits

Please check the following parameters for reference,different detail requirements will be with different cost
P16 Outdoor full Color LED Screen Specification
Pixel pitch 16mm
Pixel Configuration 1R1G1B
LED component DIP346(Epsitar chips)
Size of module 256mm x 256mm
Resolution of module 16x16dots
Weight of module 0.68kgs
Size of cabinet 1024mmx 768mm x 150mm
Resolution of cabinet 64x48dots
Material of Cabinet Iron with back doors
Weight of Cabinet <50KGS
Brightness >7500cd/sq.m
Density 3906dots/sq.m
Best viewing angle 110° /50°
Best viewing distance 15-200M
Maximum power consumption <600Wsq.m
Average power consumption <280W/sq.m
Driving method Static scan
Control method Synchronization/Asynchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >3000Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
