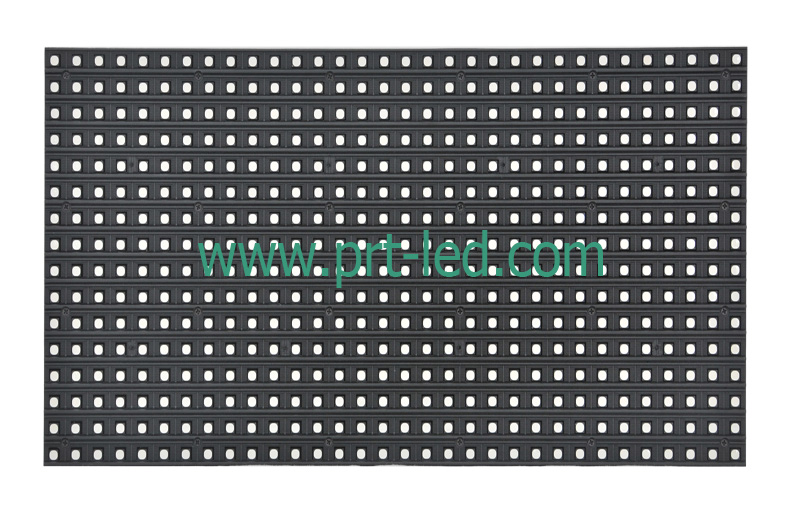

P10 SMD Outdoor 1/4 Scan LED Display Module with 1r1g1b

Quantity:
  • P10

  • IP65

  • 1R, 1G, 1B

  • 220W / m²

  • 1/4 Scan

  • Advertising,Performance,Rental

  • SMD3535

  • 32X16dots

  • PRT

  • CE, FCC. ROHS, 3C

  • 8528591090

  • Full Color

  • 10mm

  • Video Display

  • 10000 dot / m²

  • LED Video Display

  • CE, RoHS, CCC, FCC

  • 320X160mm

  • >6000nits

  • Wooden Case or Flight Case

  • Shenzhen China

 SMD3535 waterproof outdoor P10 LED Module with 320x160mm size,with high brightness,good uniformity and good waterproof

  Product Features:

 1)  Brightness up to 6000nits,can be seen under sunshine,and long view distance from 100M away

  2) Good waterproof IP65, long life span>100,000hours

  3) LED lamps handle with SMD led encapsulation confirm wide view angle and good uniformity

  4) Dot-to-Dot maintainance, easy and quick maintain, save working time and cost

 5) Slim thickness, light weight,low power consumption,energy-saving

 6) Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party,   etc, to display the content what you want, connect with PC computer or network, also can remoto control with asynchronous system.

 7) Widely used for commercial advertising display, promotion display, stage background screen, mobile led billboard, Traffic sign board, rental led display, sports perimeter score board and advertsing display etc.

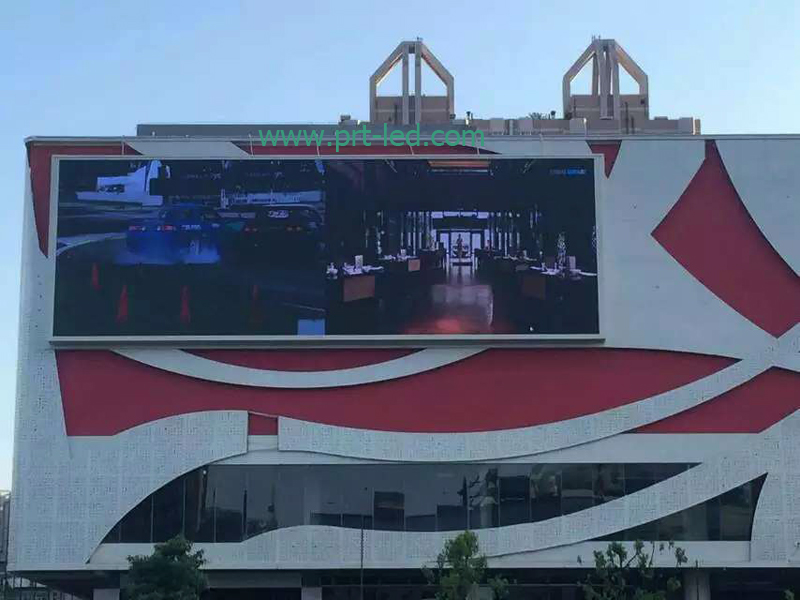

More pictures for reference:
P10 SMD Outdoor 1/4 Scan LED Display Module with 1r1g1b
P10 SMD Outdoor 1/4 Scan LED Display Module with 1r1g1b
P10 SMD Outdoor 1/4 Scan LED Display Module with 1r1g1b

P10 SMD Outdoor 1/4 Scan LED Display Module with 1r1g1b
P10 SMD Outdoor 1/4 Scan LED Display Module with 1r1g1b
P10 SMD Outdoor 1/4 Scan LED Display Module with 1r1g1b


P10 Outdoor full Color LED Module Specification
Pixel pitch 10mm
Pixel Configuration 1R1G1B
LED component SMD3535
Size of module 320mm x 160mm
Resolution of module 32 x16
Size of cabinet 960mmx 960mm /1280mm x 960mm
Resolution of cabinet 96x96 / 128 x 96
Material of Cabinet Iron with back doors
Weight of Cabinet <50KGS
Brightness >6000cd/sq.m
Density 10000dots/sq.m
Best viewing angle 140 /140
Best viewing distance 10-100M
Maximum power consumption <800W/sq.m
Average power consumption <300W/sq.m
Driving method 1/4 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1800Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
