Front Access P8 Outdoor Full Color LED Display for Advertising Board

Quantity:
  • P8

  • IP65

  • 1R, 1G, 1B

  • 350W / m²

  • 1/4 Scan

  • Advertising,Stage Performance

  • SMD3535

  • 256X128mm

  • PRT

  • CE, FCC. ROHS, 3C

  • 8528591090

  • Full Color

  • 8mm

  • Video Display

  • 15625dots/Sq.M

  • LED Video Display

  • CE, RoHS, CCC, FCC

  • IP65

  • 1024X768mm

  • Wooden Case or as Required

  • Shenzhen China

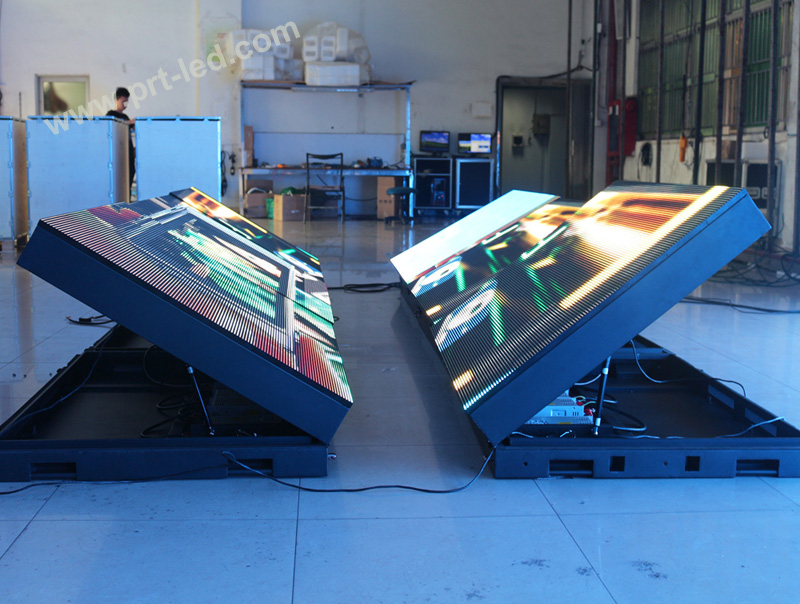

Full Color P8 LED Video Wall,open side from front,single-side or double-sides,save much space for maintenance.fixed on the wall,by roadside,top of building,public etc,with customized screen size(height less than 2meters)


Product Features:

1.SMD3535 led encapsulation confirm wide view angle and slim thickness,light weight

2.High brightness, up to 7000nits and long view distance

3.Good waterproof IP65, anti-corrosion,antifogging,meet different weather,long life time

4. High resolution,High definition,Good uniformity,perfect display vision

5. high quality, CE,FCC,ROHS,3C certificates, 3 years warranty, free training

6. To display the content what you want, by video, graphics, antimation etc, connect with PC computer or network, also can remoto control with asynchronous system(wifi, 3G/4G,USB)

6. Widely used for commercial advertising,promotion display,mobile sign board, traffic message board,,sports led scoreboard etc.

More pictures as following:
Front Access P8 Outdoor Full Color LED Display for Advertising BoardFront Access P8 Outdoor Full Color LED Display for Advertising Board
Front Access P8 Outdoor Full Color LED Display for Advertising Board




Related parameters for reference, detail requests cause different cost,please contact us for details!
P8 Outdoor full Color LED Screen Specification
Pixel pitch 8mm
Pixel Configuration 1R1G1B
LED component SMD3535
Size of module 256mm x 128mm
Resolution of module 32x16dots
Size of cabinet 2560mm x 768mm x 200mm(size can be customized)
Resolution of cabinet 320 x96dots
Material of Cabinet Steel Iron/Aluminum
Weight of Cabinet 110KGS
Brightness >6500cd/sq.m
Density 15625dots/sq.m
Best viewing angle 140 /140
Best viewing distance 8-100M
Maximum power consumption <1000W/sq.m
Average power consumption <300W/sq.m
Driving method 1/4 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1800Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
