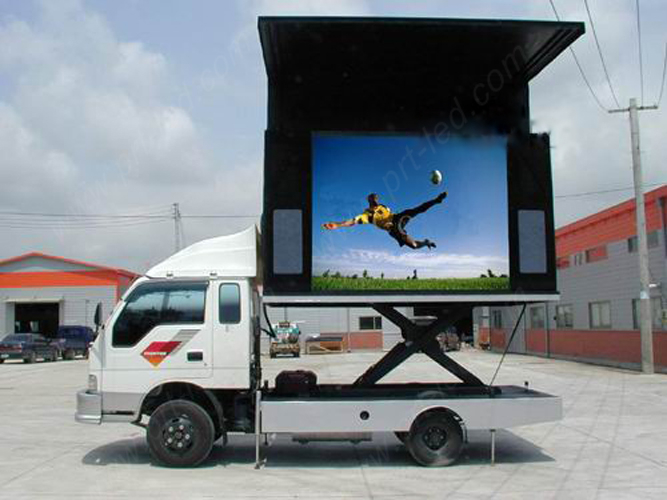

Full Color Outdoor LED Moving Sign for Track Mounting

Quantity:
  • P6.25-OR500
  • IP65
  • 1R, 1G, 1B
  • 300W / m⊃2;
  • 1/10scan
  • Advertising
  • SMD3535
  • 500X500mm
  • PRT
  • Shenzhen China
  • Full Color
  • 6.25mm
  • Video Display
  • 25600dots/Sq.M
  • LED Video Display
  • CE, RoHS, CCC, ETL
  • 250X250mm
  • Die-Casting Aluminum
  • CE, FCC. ROHS, 3C
  • 8528591090
Full Color  P6.25 led moving sign with die-casting cabinet of 500x500mm for outdoor rental, advertising display by  track mounted, good performance,with high resolution, high brightness

Product Features:

1. SMD led encapsulation confirm wide view angle and good uniformity,eyes friendly,close view distance

2. Low power consumption,energy saving, long life span>100000Hours

3. Die-casting Aluminum cabinet ensure light weight, hand portable and long lasting

4. Fast Locking and aviation plugs,easy and quick to assemble without tools in short time

5. Low noise created, low transportation costs, and low installation costs.

6.Widely used for stage, concert ,show, banquet, wedding background,rental led display






            P6.25 Full Color LED Display Main Parameters
Visual Characteristics Unit Value
Pixel Pitch mm 6.25
Pixel Density Dots/sq.m 25600
Pixel Configuration
SMD3535
Cabinet Resolution dots 80×80
Refresh Rate Hz ≥1920
View Angle(H/V) ° 150/120
Brightness nits ≥5500
Gray Scale Bit 16
IP Rating
65
Power Consumption(Max/Avg) W/sq.m 900/300
Input Voltage(AC) V 110~240
Modular Characteristics
Cabinet Size(W×H×D) mm 500×500χ80
Cabinet Material
Die-casting Aluminum
Cabinet Weight Kg 8
Module Size(W×H) mm 250×250
Environment
Operation Temperature  ºC -20~+50
Operating Humidity
10%~90%
Driving Mode
1/10 Scan
Control Distance Cat 5E <100m,Single mode fiber<10Km
