Quantity: | |
---|---|
P4.81-outdoor
IP65
1R, 1G, 1B
300W / m²
1/13 Scan
Stage Performance, Advertising,Rental
SMD2727
104X104 Dots
PRT
CE, ROHS, FCC, ETL
8528591090
Full Color
4.81mm
Video Display
43264dots/Sq.M
LED Video Display
CE, RoHS, ETL
500X500mm/500X1000mm
250X250mm
Flight Case
Shenzhen China
P4.81 Outdoor full Color LED Screen Specification | |
Pixel pitch | 4.81mm |
Pixel Configuration | 1R1G1B |
LED component | SMD2717 black |
Size of module | 250mm x 250mm |
Resolution of module | 52x52 |

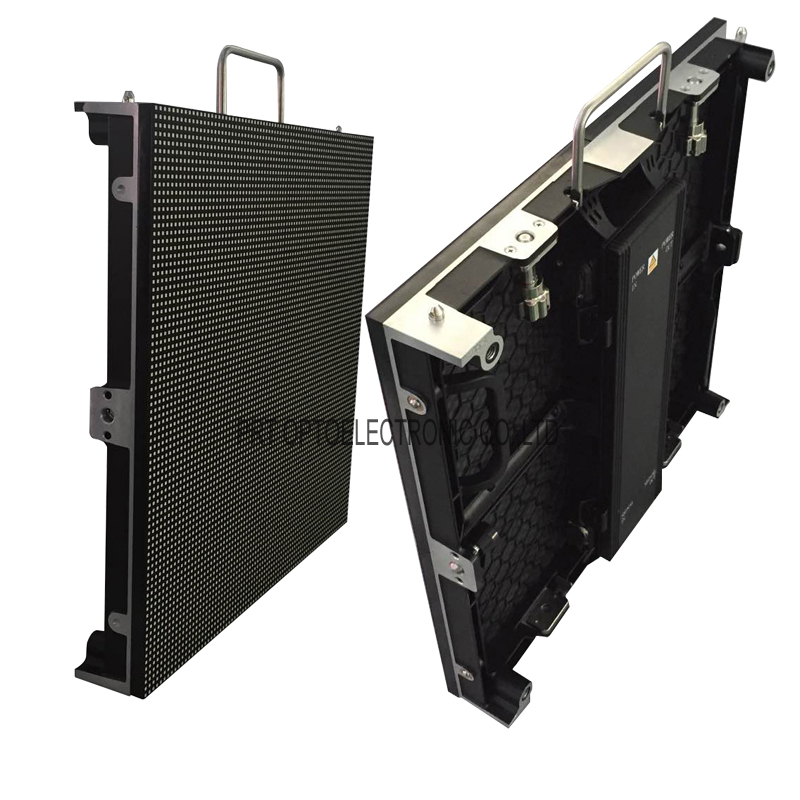

Size of cabinet | 500x500mm/500mm x 1000mm x 75mm |
Resolution of cabinet | 104x104/104x208 |
Material of Cabinet | Die-casting Aluminum |
Weight of Cabinet | 8kgs/14KGS |
Brightness | >5500cd/sq.m |
Density | 43264dots/sq.m |
Best viewing angle | 160 /140 |
Pixel Configuration | 1R1G1B |
Best viewing distance | 3-60M |
Maximum power consumption | 800W/sq.m |
Average power consumption | 300W/sq.m |
Driving method | 1/13 scan |
Control method | Synchronization |
Gray scale | 65536 |
Colors | 256*256*256 |
Color temperature | 3200-9300k |
Uniformity | 97% |
Working voltage | AC220V/110V±10% |
Working temperature | -20ºC~+50ºC±10% |
Working humidity | 10% ~ 90% |
MTBF | 10,000 hours |
Frame frequence | 50/60Hz |
Refresh frequence | >2000Hz |
IP grade | IP65 |
Life Span | 100,000 hours |
Data transafer method | RJ45 |
Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM |
Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
P4.81 Outdoor full Color LED Screen Specification | |
Pixel pitch | 4.81mm |
Pixel Configuration | 1R1G1B |
LED component | SMD2717 black |
Size of module | 250mm x 250mm |
Resolution of module | 52x52 |
Size of cabinet | 500x500mm/500mm x 1000mm x 75mm |
Resolution of cabinet | 104x104/104x208 |
Material of Cabinet | Die-casting Aluminum |
Weight of Cabinet | 8kgs/14KGS |
Brightness | >5500cd/sq.m |
Density | 43264dots/sq.m |
Best viewing angle | 160 /140 |
Pixel Configuration | 1R1G1B |
Best viewing distance | 3-60M |
Maximum power consumption | 800W/sq.m |
Average power consumption | 300W/sq.m |
Driving method | 1/13 scan |
Control method | Synchronization |
Gray scale | 65536 |
Colors | 256*256*256 |
Color temperature | 3200-9300k |
Uniformity | 97% |
Working voltage | AC220V/110V±10% |
Working temperature | -20ºC~+50ºC±10% |
Working humidity | 10% ~ 90% |
MTBF | 10,000 hours |
Frame frequence | 50/60Hz |
Refresh frequence | >2000Hz |
IP grade | IP65 |
Life Span | 100,000 hours |
Data transafer method | RJ45 |
Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM |
Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
