High Brightness P4.81 LED Sign Board for Outdoor

  • P4.81-outdoor 1000

  • IP65

  • 1R, 1G, 1B

  • 300W / m⊃2;

  • 1/13 Scan

  • Stage Performance, Advertising,Rental

  • SMD2727

  • 104X104 Dots

  • PRT


  • 8528591090

  • Full Color

  • 4.81mm

  • Video Display

  • 43264dots/Sq.M

  • LED Video Display

  • CE, RoHS, ETL

  • 500X1000mm

  • 250X250mm

  • Flight Case

  • Shenzhen China

High brightness P4.81 Full Color led sign board with good waterproof for outdoor rental or permanent install, with die-casting aluminum cabinet, size can be 500x500mm and 500x1000mm, high brightness, high definition

Product Features:

1. Made with SMD2727 led lamps, high resolution and wide view angle H140/V140

2.Seamless spliced,with smooth and vivid visual effect,perfect performance

3.Die-casting aluminum cabinets ensure lightweight and strong durable

4.Module size of 250x250mm,  can be assembled with 500x500mm and 500x1000mm

5.IP65 for front,and IP54 for back , good waterproof, can be used for outdoor when it is raining

6.High quality, producing according to the international standard of CE,FCC, Rohs,ETL

The cabinet design suit for outdoor P3.91, P4.81,P5.95,P6.25

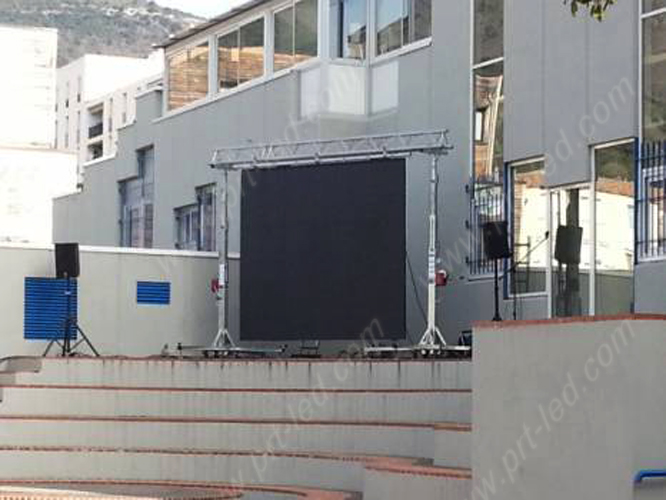

More cabinet pictures for reference:
High Brightness P4.81 LED Sign Board for Outdoor

High Brightness P4.81 LED Sign Board for Outdoor

High Brightness P4.81 LED Sign Board for Outdoor
High Brightness P4.81 LED Sign Board for Outdoor
High Brightness P4.81 LED Sign Board for Outdoor

High Brightness P4.81 LED Sign Board for Outdoor

Related parameters for your reference,please contact us for details:
P4.81 Outdoor full Color LED Screen Specification
Pixel pitch 4.81mm
Pixel Configuration 1R1G1B
LED component SMD2717 black
Size of module 250mm x 250mm
Resolution of module 52x52
Size of cabinet 500x500mm/500mm x 1000mm x 75mm
Resolution of cabinet 104x104/104x208
Material of Cabinet Die-casting Aluminum
Weight of Cabinet 8kgs/14KGS
Brightness >5500cd/sq.m
Density 43264dots/sq.m
Best viewing angle 160 /140
Pixel Configuration 1R1G1B
Best viewing distance 3-60M
Maximum power consumption 800W/sq.m
Average power consumption 300W/sq.m
Driving method 1/13 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
