High Brightness P5 Full Color Video Vertical LED Sign Board (640*960mm)

Quantity:



Inquire Add to Basket

Model NO.:
P5
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Average Power Consumption:
220W / m⊃2;
Scanning Mode:
1/8 Scan
Application:
Advertising
LED Type:
SMD2727
Product Size:
640 *1116mm
Trademark:
PRT
Specification:
CE, FCC. ROHS, 3C
HS Code:
8528591090
Tube Chip Color:
Full Color
Pixel Pitch:
5mm
Display Function:
Video Display
Pixel Density:
40000dots/Sq.M
Display Type:
LED Video Display
Certification:
CE, RoHS, CCC, ETL
Module Size:
160X160mm
Display Size:
640*960mm
Transport Package:
Wooden Case or as Required
Origin:
Shenzhen China

Product Description

Outdoor P5 LED Display board mounted on lighting poles from side or back, for advertising by roadside, a new kind of products instead of stational light box, made with led modules and goog waterproof, can be shown with videos and images, controlled by internet,3G/4G or Wifi

Product Advantages:

1. Intelligent control: with LAN, WIFI, 3G intelligent management module inside, can control the screen as your convenient, change the display content as you want

2. Saving time and labor: once the screen is installed successfully, the advertising content can change at any time as request, don't like the traditional static billboards need to be dissambled frequently, save the working time and labor cost, and control the advertising contents easily.

3.High waterproof IP level: with front IP65 and back IP54, good waterproof, can be used outdoor with any weather

4. Easy maintenance: side open and back maintenance for option, and dot to dot maintenance, easy and quickly

5.SMD led encapsulation confirm the good uniformity and high definition

6. Can be done with single side or double sides,product size can be customized

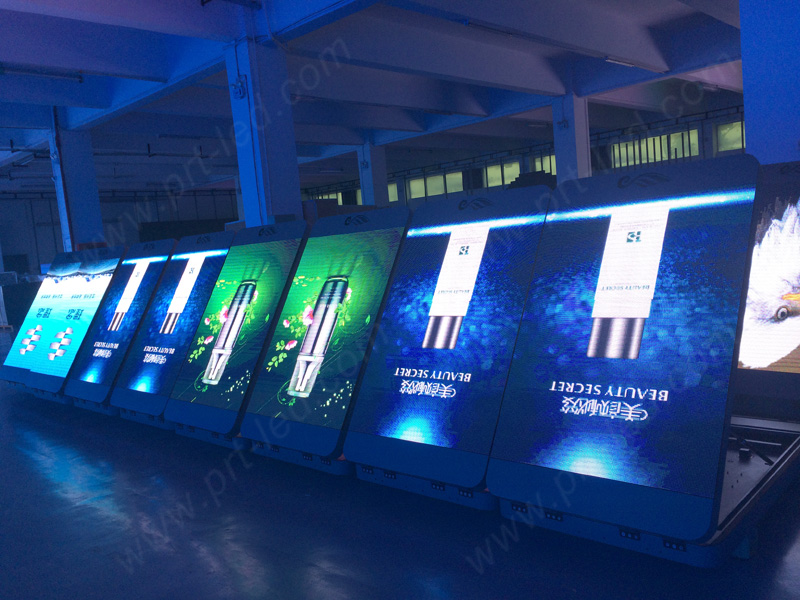

High Brightness P5 Full Color Video Vertical LED Sign Board (640*960mm)

High Brightness P5 Full Color Video Vertical LED Sign Board (640*960mm)

Outdoor P5 full color led display for pole
Characteristics	Value	unit
Pixel pitch	5	mm
LED type	SMD2727
Pixel density	40000	Dots/sq.m
Module size	160x160	mm
Module resolution	32x32	dots
Cabinet size	640x1116	mm
Display size	640x960	mm
Cabinet resolution	128x192	dots
Cabinet weight	45	Kgs
Waterproof IP	65	degree
Brightness	≥5500	CD/sq.m
View angle	120°	degree
Gray scale	13	Bit
Display scale	16.7	Million
Power consumption(Max.)	800	W/sq.m
Power consumption(Avg.)	280	W/sq.m
Refresh Frequency	≥1500	Hz
Operation Power	AC100~240	V
Operationg Temperature	-20~+50	ºC
Operating Humidity	10~90%	RH
Operating Life	100,000	Hours
