High Brightness P6.67 Full Color Outdoor LED Video Display

  • P6.67-OR640
  • IP65
  • 1R, 1G, 1B
  • 300W / m⊃2;
  • 1/6 Scan
  • Advertising,Stage Performance,Rental
  • SMD3535
  • 640X640mm
  • PRT
  • Shenzhen China
  • Full Color
  • 6.66mm
  • Video Display
  • 22545dots/Sq.M
  • LED Video Display
  • CE, RoHS, CCC, RoHS
  • 320X160mm
  • Die-Casting Aluminum
  • CE, FCC. ROHS, 3C
  • 8528591090

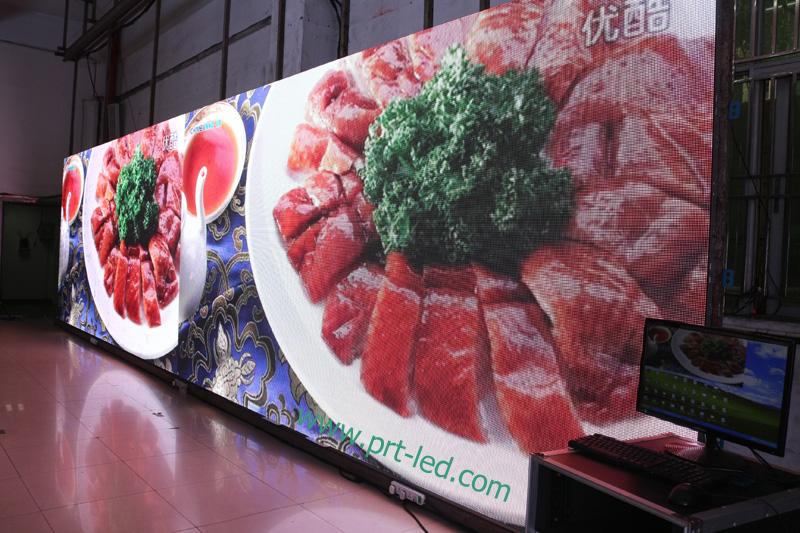

P6.67 Outdoor LED Video Display with 640X640mm Die-casting Aluminum Cabinet for outdoor rental or permanent install,super slim but strong and durable , long life span,good waterproof and high brightness  up to 6000nits

Product Features:

1. SMD led encapsulation confirm wide view distance and high brightness,

2. Good waterproof IP65,better for outdoor rental even raining

3. CE,FCC,ROHS certificate,2 years warranty
4. Wide view angle,high refresh rate, high brightness,up5000nits

5. With Rental design Aluminum Cabinet,simple configuration but beautiful outlooking
light weight,easy and quick to assemble and maintanance

6. low power consumption, low noise created, low transportation costs, and low installation costs.

7.Widely used for outdoor concert,banquet,conference,show rental as background

                     Outdoor Full Color LED Display Main Parameters
Visual Characteristics Unit Value
Pixel Pitch mm 6.67
Pixel Density Dots/sq.m 22545
Pixel Configuration
Cabinet Resolution dots 96×96
Refresh Rate Hz ≥1920
View Angle(H/V) ° 150/120
Brightness nits ≥5000
Gray Scale Bit 16
IP Rating
Power Consumption(Max/Avg) W/sq.m 700/300
Input Voltage(AC) V 110~240
Modular Characteristics
Cabinet Size(W×H×D) mm 640×640
Cabinet Material
Die-cast Aluminum
Cabinet Weight Kg 13
Module Size(W×H) mm 320×160
Operation Temperature  ºC -20~+50
Operating Humidity
Driving Mode
1/8 Scan
Control Distance Cat 5E <100m,Single mode fiber<10Km
