High Brightness P6 Outdoor LED Display with Waterproof IP65

  • P6-outdoor
  • IP65
  • 1R, 1G, 1B
  • 300W / m⊃2;
  • 1/8 Scan
  • Advertising, Stage Performance, Rental
  • SMD3535
  • 576X576mm
  • PRT
  • Shenzhen China
  • Full Color
  • 6mm
  • Video Display
  • 27777dots/Sq.M
  • LED Video Display
  • CE, RoHS, CCC
  • 288X288mm
  • IP65
  • CE, FCC. ROHS, 3C
  • 8528591090
Full color P6 Outdoor LED Display for outdoor permanent install or rental
with high brightness and good waterproof, high resolution and good performance

Product features:

1.Waterproof IP65,good for outdoor rental,small size is available

2. SMD led encapsulation confirm wide view angle and slim board

3.High pixel density, Long view distance, High definition,High brightness,Good uniformity

4.With Rental design Aluminum Cabinet,easy and quick to assemble without tools in short time

5.Die-casting cabinets confirm the strong configuration and lasting, super slim and light weight,

6.low power consumption, No fans,no noise created, Low transportation costs, and low installation costs.

7.Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, connect with PC computer or network, also can remoto control with asynchronous system.

8.Widely used for commercial advertising,stage background screen,mobile led sign. traffic message board,sports stadium perimeter display etc.

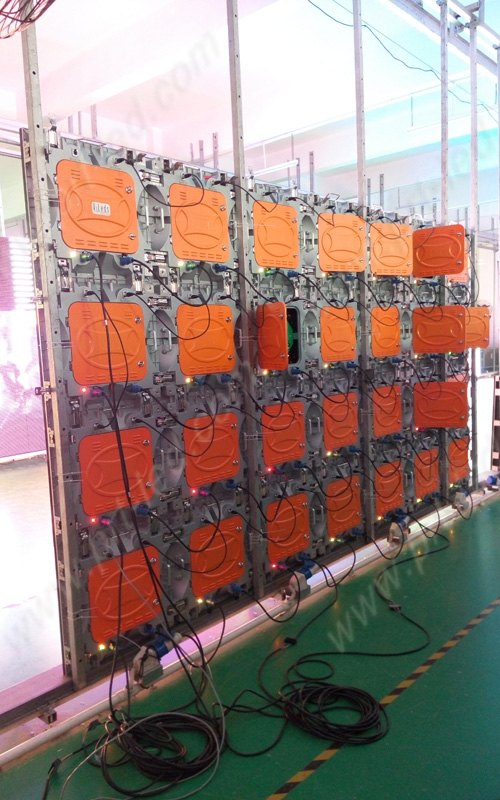

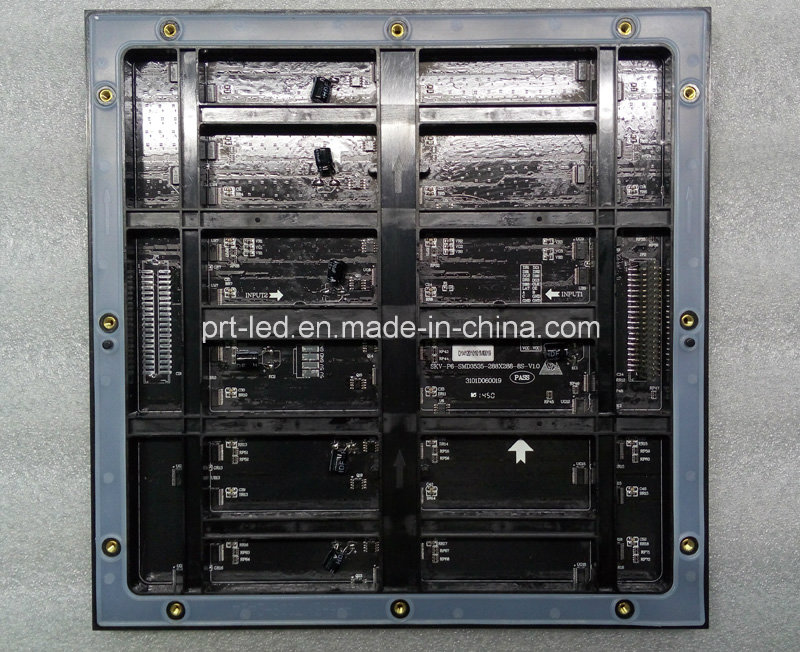

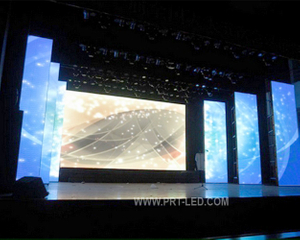

More pictures for reference:

High Brightness P6 Outdoor LED Display with Waterproof IP65

High Brightness P6 Outdoor LED Display with Waterproof IP65
High Brightness P6 Outdoor LED Display with Waterproof IP65

         P6 Outdoor Full Color LED Display Main Parameters
Visual Characteristics Unit Value
Pixel Pitch mm 6.0
Pixel Density Dots/sq.m 27777
Pixel Configuration
Cabinet Resolution dots 96×96
Refresh Rate Hz ≥1200
View Angle(H/V) ° 150/120
Brightness nits ≥5500
Gray Scale Bit 16
IP Rating
Power Consumption(Max/Avg) W/sq.m 650/300
Input Voltage(AC) V 110~240
Modular Characteristics
Cabinet Size(W×H×D) mm 576×576
Cabinet Material
Die-cast Aluminum
Cabinet Weight Kg 12
Module Size(W×H) mm 288×288
Operation Temperature ºC -20~+50
Operating Humidity
Driving Mode
1/8 Scan
Control Distance Cat 5E <100m,Single mode fiber<10Km
