P8-OR640
IP65
1R, 1G, 1B
350W / m⊃2;
1/5scan
Advertising,Stage Performance,Rental
SMD3535
40X20dots
PRT
CE, FCC. ROHS, 3C
8528591090
Full Color
8mm
Video Display
15625dots/Sq.M
LED Video Display
CE, RoHS, CCC, FCC
320X160mm
Die-Casting Aluminum
Wooden Case or as Required
Shenzhen China

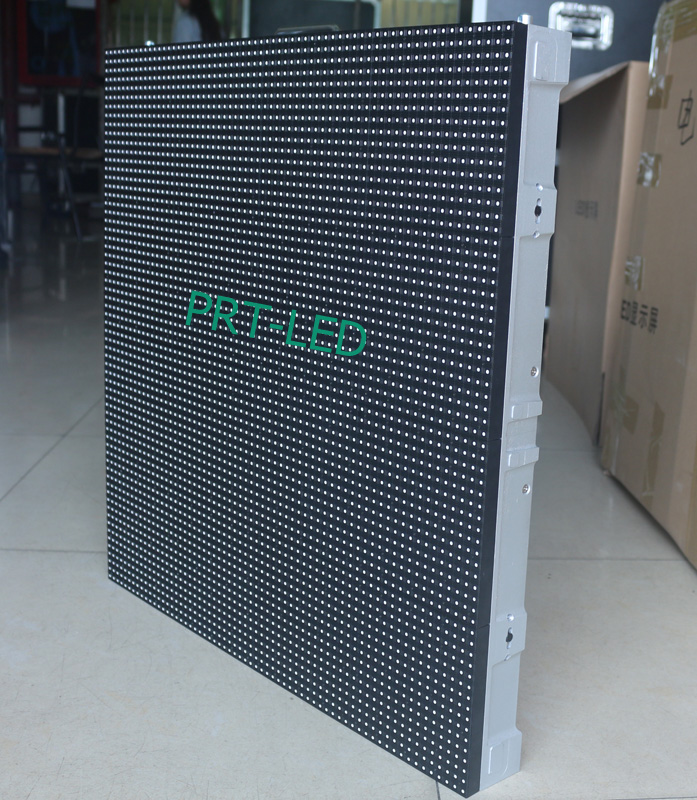

| P8 Outdoor full Color LED Screen Specification | |
| Pixel pitch | 8mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD3535 |
| Size of module | 320mm x 160mm |
| Resolution of module | 32x16 |
| Size of cabinet | 640mm x 640mm x 65mm |
| Resolution of cabinet | 80x80 |
| Material of Cabinet | Die-casting Aluminum |
| Weight of Cabinet | 13KGS |
| Brightness | >6000cd/sq.m |
| Density | 15625dots/sq.m |
| Best viewing angle | 140 /140 |
| Best viewing distance | 8-100M |
| Maximum power consumption | <800W/sq.m |
| Average power consumption | <300W/sq.m |
| Driving method | 1/5 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1920Hz |
| IP grade | IP65 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
| Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
| P8 Outdoor full Color LED Screen Specification | |
| Pixel pitch | 8mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD3535 |
| Size of module | 320mm x 160mm |
| Resolution of module | 32x16 |
| Size of cabinet | 640mm x 640mm x 65mm |
| Resolution of cabinet | 80x80 |
| Material of Cabinet | Die-casting Aluminum |
| Weight of Cabinet | 13KGS |
| Brightness | >6000cd/sq.m |
| Density | 15625dots/sq.m |
| Best viewing angle | 140 /140 |
| Best viewing distance | 8-100M |
| Maximum power consumption | <800W/sq.m |
| Average power consumption | <300W/sq.m |
| Driving method | 1/5 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1920Hz |
| IP grade | IP65 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
| Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
