High Resolution P4 Rental LED Display/Video Screen for Outdoor

Quantity:



Inquire Add to Basket

Model NO.:
P4-outdoor
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Average Power Consumption:
600W / m²
Scanning Mode:
1/8 Scan
Application:
Advertising, Stage Performance, Rental
Cabinet Size:
512X512mm
Module Size:
256X128mm
Trademark:
PRT
Specification:
CE, FCC. ROHS, 3C
HS Code:
8528591090
Tube Chip Color:
Full Color
Pixel Pitch:
4mm
Display Function:
Video Display
Pixel Density:
62500dots/Sq.M
Display Type:
LED Video Display
Certification:
CE, RoHS, CCC, FCC
Cabinet Material:
Die-Casting Aluminum
Module Resolution:
64X32dots
Transport Package:
Flight Case or Wooden Case
Origin:
Shenzhen

Product Description

P4 full color led display screen/stage led screen for outdoor rental with high resolution,closed view distance, high brightness and good waterproof

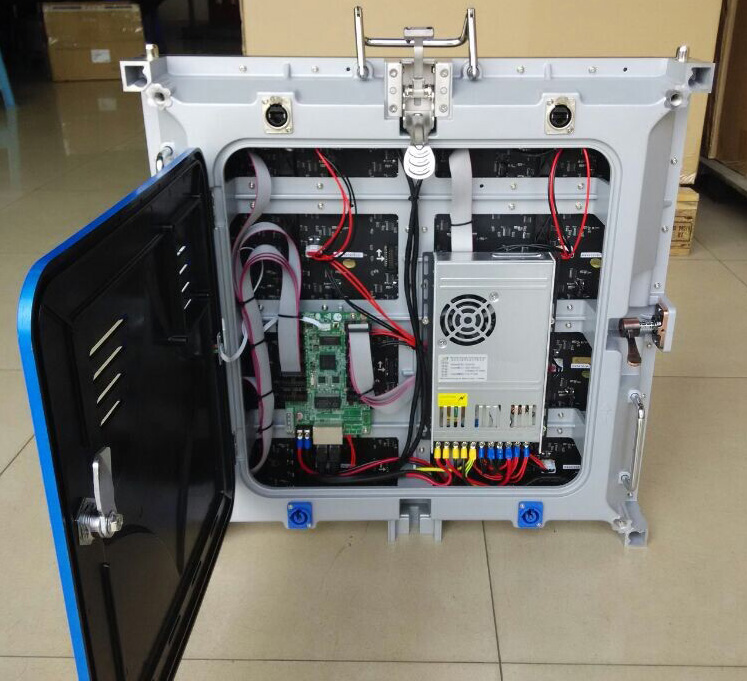

1. Made with Die-casting aluminum material,light weight and strong configuration

2.with Slim and small cabinet size of 512× 512× 60mm,It is portable by handed and move to any where,convenient to transport and collect

3. Rental design, easy to install and dismantle without any tools, save much time

4. Can be suspend on truss or fixed installation, Seamless spliced, good uniformity

5. Wide view angle, over 140 degree for horizontal and vertical

6.No fans design,lower power consumption, good heat dissipation

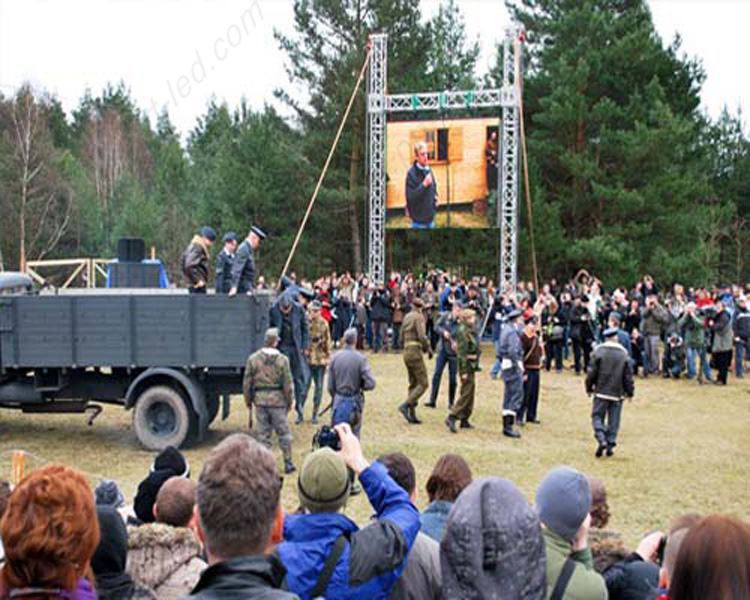

7.Widely used in public advertising, event, live show, banquet, stage background,etc.

High Resolution P4 Rental LED Display/Video Screen for Outdoor

High Resolution P4 Rental LED Display/Video Screen for Outdoor

P4 SMD1921 Indoor full Color LED Screen Specification
Pixel pitch			4mm
Pixel Configuration			1R1G1B
LED component			SMD1921
Size of module			256mm x 128mm
Resolution of module			64x32
Size of cabinet			512mm x 512mm x 65mm
Resolution of cabinet			128x128
Material of Cabinet			Die-casting Aluminum
Weight of Cabinet			10.5KGS
Brightness			>4500cd/sq.m
Density			62500dots/sq.m
Best viewing angle			140 /140
Pixel Configuration			1R1G1B
Best viewing distance			3-50M
Maximum power consumption			1000W/sq.m
Average power consumption			600W/sq.m
Driving method			1/8 scan
Control method			Synchronization
Gray scale			65536
Colors			256256256
Color temperature			3200-9300k
Uniformity			97%
Working voltage			AC220V/110V±10%
Working temperature			-20ºC~+50ºC±10%
Working humidity			10% ~ 90%
MTBF			10,000 hours
Frame frequence			50/60Hz
Refresh frequence			>3000Hz
IP grade			IP65
Life Span			100,000 hours
Data transafer method			RJ45
Pratical standard			CCC TUV-CE ETL etc.
Effectivce Communication Distance(without relay)			Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM
Accepting signal with video processor			PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform			WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
