High Rosolution Outdoor P5.95 Advertising LED Board for Rental

Quantity:



Inquire Add to Basket

Model NO.:
P5.95
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Average Power Consumption:
300W / m⊃2;
Scanning Mode:
1/7 Scan
Application:
Stage Performance, Advertising,Rental
Type of LEDs:
SMD3535
Panel Resolution:
84X84 Dots
Trademark:
PRT
Specification:
CE, ROHS, FCC, ETL
HS Code:
8528591090
Tube Chip Color:
Full Color
Pixel Pitch:
5.95mm
Display Function:
Video Display
Pixel Density:
28224dots/Sq.M
Display Type:
LED Video Display
Certification:
CE, RoHS, ETL
Panel Size:
500X500mm
Module Size:
250X250mm
Transport Package:
Flight Case or Wooden Case
Origin:
Shenzhen China

Product Description

P5.95 Full Color led board for outdoor rental with die-casting cabinet size of 500x500mm or 500x1000mm,passed CE,Rohs,FCC certificates, high brightness up to 6000nits, and good uniformity,seamless spliced

Product Features:

1. Made with SMD3535 led lamps, high resolution and wide view angle H140/V140

2.Seamless spliced,with smooth and vivid visual effect,perfect performance

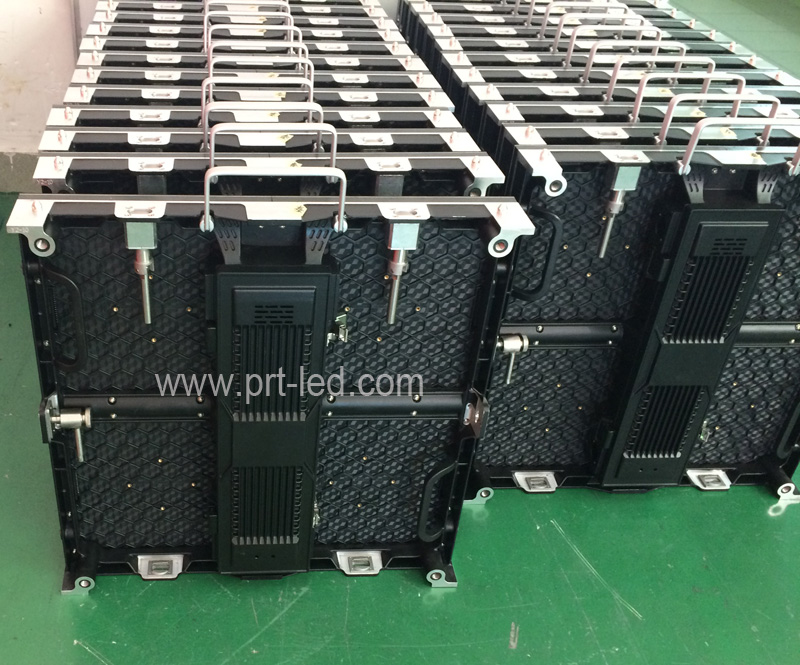

3.Die-casting aluminum cabinets ensure lightweight and strong durable

4.Module size of 250x250mm, can be assembled with 500x500mm and 500x1000mm

5.IP65 for front,and IP54 for back , good waterproof, can be used for outdoor against bad weather

6.High quality, producing according to the international standard of CE,FCC, Rohs,ETL

The cabinet design suit for outdoor P3.91, P4.81,P5.95,P6.25,P8.928
High Rosolution Outdoor P5.95 Advertising LED Board for Rental

High Rosolution Outdoor P5.95 Advertising LED Board for Rental

P5.95 Outdoor full Color LED Screen Specification
Pixel pitch	5.95mm
Pixel Configuration	1R1G1B
LED component	SMD3535
Size of module	250mm x 250mm
Resolution of module	42x42
Size of cabinet	500x500mmx75mm /500 x 1000 x 75mm
Resolution of cabinet	84x84/84x168dots
Material of Cabinet	Die-casting Aluminum/Aluminum profile
Weight of Cabinet	8kgs/ 13KGS
Brightness	>5500cd/sq.m
Density	28224dots/sq.m
Best viewing angle	140 /140
Pixel Configuration	1R1G1B
Best viewing distance	6-100M
Maximum power consumption	1000W/sq.m
Average power consumption	550W/sq.m
Driving method	1/7 scan
Control method	Synchronization
Gray scale	65536
Colors	256256256
Color temperature	3200-9300k
Uniformity	97%
Working voltage	AC220V/110V±10%
Working temperature	-20ºC~+50ºC±10%
Working humidity	10% ~ 90%
MTBF	10,000 hours
Frame frequence	50/60Hz
Refresh frequence	>1920Hz
IP grade	IP65
Life Span	100,000 hours
Data transafer method	RJ45
Pratical standard	CCC TUV-CE ETL etc.
Effectivce Communication Distance(without relay)	Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM
Accepting signal with video processor	PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform	WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
