Hight Brightness Outdoor P6 LED Digital Display (RGB)

  • outdoor 6mm

  • IP65

  • 1R, 1G, 1B

  • 350W / m⊃2;

  • 1/8 Scan

  • Advertising, Stage Performance, Rental

  • SMD3535

  • 32X32dots

  • PRT

  • CE, FCC. ROHS, 3C

  • 8528591090

  • Full Color

  • 6mm

  • Video Display

  • 27777dots/Sq.M

  • LED Video Display

  • CE, RoHS, CCC

  • 192X192mm

  • >6000nits

  • Wooden Case or as Required

  • Shenzhen China

SMD3535 Outdoor P6 Full Color LED Digital Display with iron panels for permanet install or rental use

1.SMD led encapsulation confirm wide view angle and high brightness,

2. High quality black body leds ensure high contrast, high definition, good performance

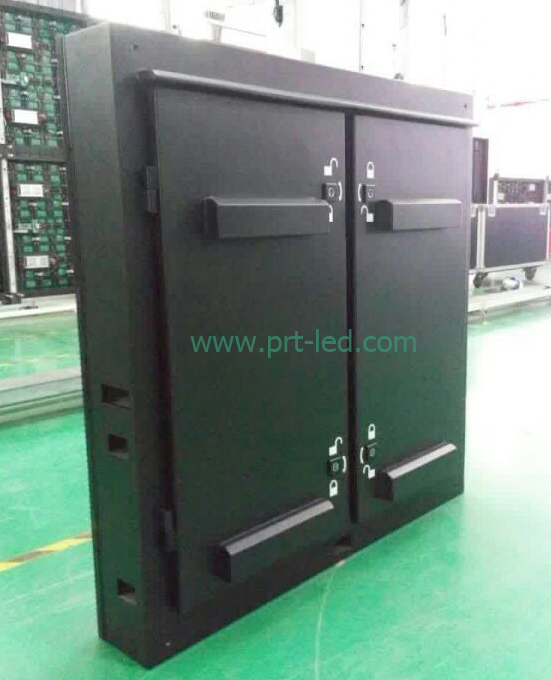

3.Steel iron cabinet with strong configuration, keep long life span and durable, and reasonable cost

4. Good waterproof craft finised, confirm IP65, suit to any weather outdoor

5. High pixel density, Long view distance, High definition, Good uniformity

6.Cabinets with fast locks and aviation plugs,easy and quick to assemble without tools in short time

7. Low power consumption, low noise created, low transportation costs, and low installation costs.

8. Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, connect with PC computer or network, also can remoto control with asynchronous system.

7. Widely used for commercial advertising,stage background screen, mobile sign board,Traffic message board, rental display, sports stadium perimeter display etc.

Hight Brightness Outdoor P6 LED Digital Display (RGB)
Hight Brightness Outdoor P6 LED Digital Display (RGB)

Hight Brightness Outdoor P6 LED Digital Display (RGB)
Hight Brightness Outdoor P6 LED Digital Display (RGB)
Hight Brightness Outdoor P6 LED Digital Display (RGB)

P6 SMD3535 Outdoor full Color LED Screen Specification
Pixel pitch 6mm
Pixel Configuration 1R1G1B
LED component SMD3535
Size of module 192mm x 192mm
Resolution of module 32x32
Size of cabinet 960mm x 960mm x 65mm
Resolution of cabinet 160x160
Material of Cabinet Aluminum/Iron
Weight of Cabinet 450KGS
Brightness >6000cd/sq.m
Density 27777dots/sq.m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 5-60M
Maximum power consumption 1000W/sq.m
Average power consumption 500W/sq.m
Driving method 1/8 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
