Indoor Background LED Wall P6.25 Display Panel with Full Color

Quantity:
  • P6.25
  • Video Display
  • 1R,1G,1B
  • 1/10 Scan
  • LED Video Display
  • IP31
  • SMD3528
  • 500X500mm
  • Indoor Rental
  • Wooden Case or as Required
  • Shenzhen China
  • Full Color
  • 6.25mm
  • 25600dots/Sq.M
  • Win XP,Win 2000
  • Stage Performance, Advertising, Shopping Guide
  • CE, RoHS, CCC, ETL
  • 250X250mm
  • Die-Casting Aluminum
  • PRT
  • CE, FCC. ROHS, 3C
  • 8528591090
P6.25 Indoor Full Color LED Sign Board for indoor rental or fixed install, with high brightness,good performance, competitive cost, but high quality,2year warranty,CE,FCC,Rohs standard

Product Features:

1. SMD led encapsulation confirm wide view angle and good uniformity

2. Low power consumption,energy saving, long life span>100000Hours

3. Aluminum cabinet ensure lightweight,easy to install and dismantle

4. Rental design with fast locks and aviation plugs,easy and quick to assemble without tools in short time

5. Low noise created, low power consumption,good heat dissipation


6.Widely used for stage, concert ,show, banquet, wedding background,rental led display

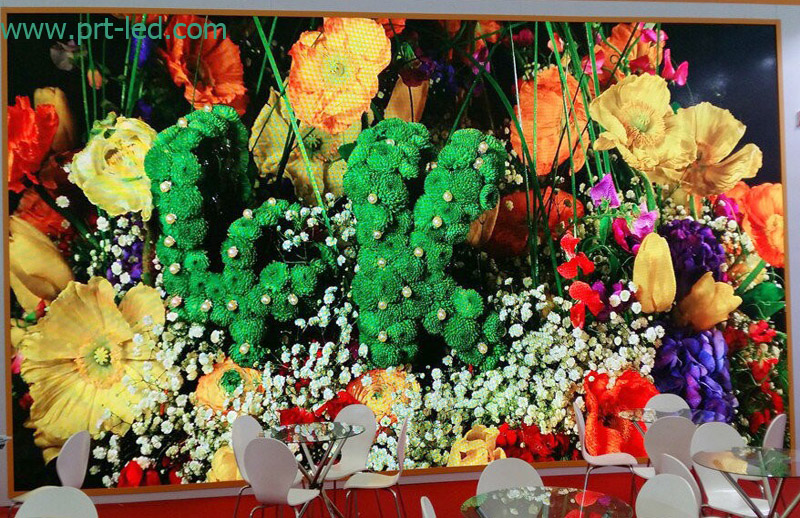

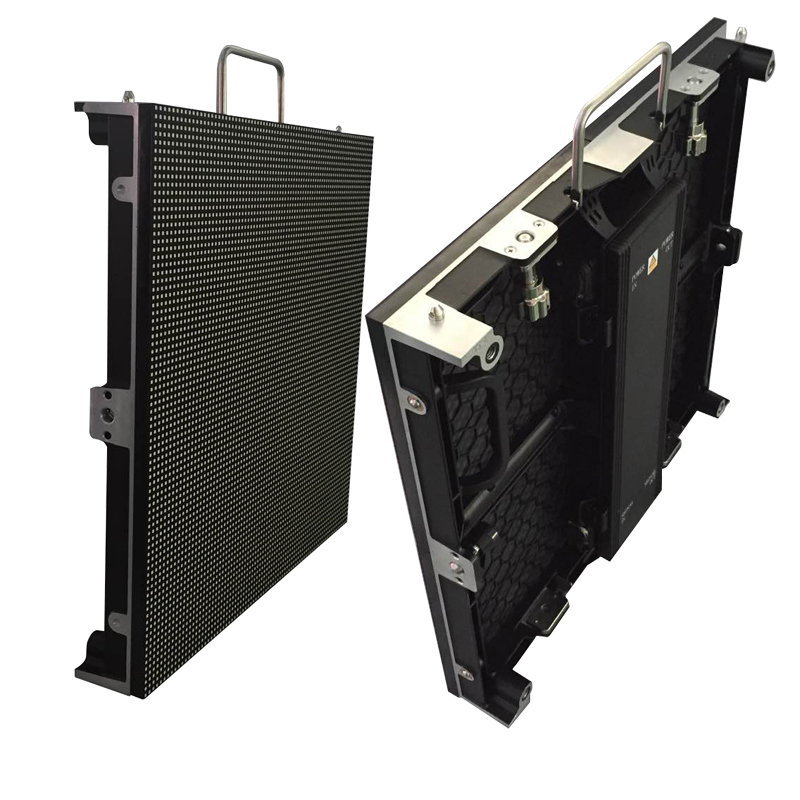

More pictures for reference:

Indoor Background LED Wall P6.25 Display Panel with Full Color
Indoor Background LED Wall P6.25 Display Panel with Full Color
Indoor Background LED Wall P6.25 Display Panel with Full Color
Indoor Background LED Wall P6.25 Display Panel with Full Color



P6.25  full Color LED Screen/Curtain Specification
Pixel pitch 6.25mm
Pixel Configuration 1R1G1B
LED component SMD3528
Size of module 250mm x 250mm
Resolution of module 40x40
Size of cabinet 500mm x 500mm x 70mm
Resolution of cabinet 80x80
Material of Cabinet Aluminum
Weight of Cabinet 13KGS
Brightness >1500cd/sq.m
Density 25600dots/sq.m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 6-100M
Maximum power consumption 1000W/sq.m
Average power consumption 550W/sq.m
Driving method 1/10 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
