Indoor LED Display with Slim Aluminum Panel P4.8(1/10 scan 576X576mm)

P4.8mm full color led display for indoor rental use,with slim aluminum panel and size of 576*576mm,light weight and portable
Quantity:
  • P4.8

  • PRT

  • 8528591090

  • Pixel 4.8mm

  • Video Display

  • 1R,1G,1B

  • 1/10 Scan

  • LED Video Display

  • IP31

  • 576X576mm

  • 288X288mm

  • PRT

  • CE, FCC. ROHS, 3C

  • 8528591090

  • Full Color

  • 4.8mm

  • 43402dots/Sq.M

  • Win XP,Win 2000,98,Win7/8

  • Stage Performance, Advertising, Shopping Guide

  • CE, RoHS, CCC, FCC

  • Aluminum Alloy

  • 120X120dots

  • Flight Case or Wooden Case

  • Shenzhen

P4.8 Full Color Background LED Screen with slim and light weight cabinet
for indoor rental or permanent fixed install,with high contrast ratio and high resolution


Product Description:

1. Made with aluminum alloy with very light weight,only 7kgs

2. Slim and small cabinet size of 576× 576× 60mm,portable and move to any where

3. Rental design, with fast locks and aviation plugs,easy to install and dismantle without any tools

4. Can be suspend or fixed installation, Seamless splicing,good uniformity

5. Good display performance and cost performance

6. Wide view angle,good heat dissipation,low power consumption

7. No funs, no noise

8. Packed with flightcase or wooden case as required

9. Widely used in public advertising, theatre, live show, live meeting, banquet, stage background etc.

10. This rental cabinet design is available to indoor P3,P4.8,P5.33,P6


Please check more photoes as following:

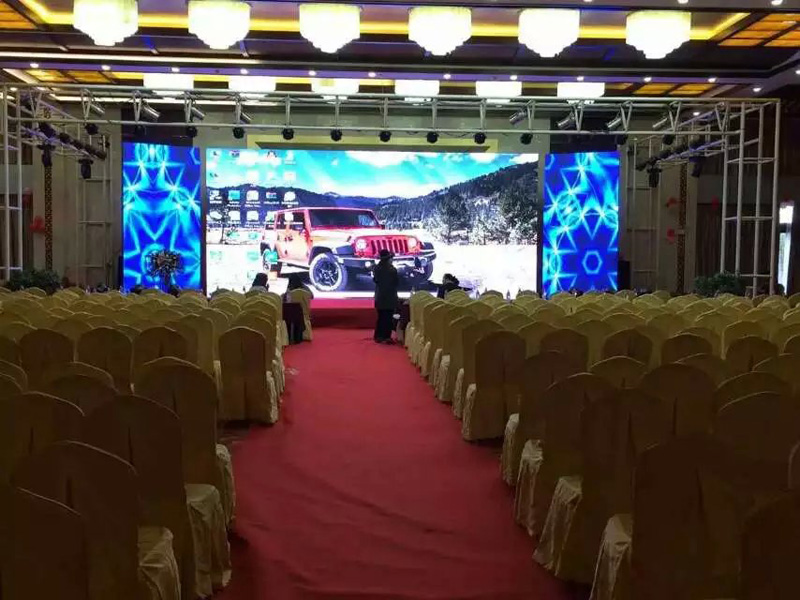

Specialized Factory Indoor LED Display with Slim Aluminum Panel (1/10 scan 576X576mm)

Specialized Factory Indoor LED Display with Slim Aluminum Panel (1/10 scan 576X576mm)

Specialized Factory Indoor LED Display with Slim Aluminum Panel (1/10 scan 576X576mm)

Specialized Factory Indoor LED Display with Slim Aluminum Panel (1/10 scan 576X576mm)
Specialized Factory Indoor LED Display with Slim Aluminum Panel (1/10 scan 576X576mm)


Specialized Factory Indoor LED Display with Slim Aluminum Panel (1/10 scan 576X576mm)




P4.8 SMD3528 Indoor full Color LED Screen Specification
Pixel pitch 4.8mm
Pixel Configuration 1R1G1B
LED component SMD3528
Size of module 288mm x 288mm
Resolution of module 60x60
Size of cabinet 576mm x 576mm x 60mm
Resolution of cabinet 120x120
Material of Cabinet Aluminum profile
Weight of Cabinet 8KGS
Brightness >1500cd/sq.m
Density 43042dots/sq.m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 3-50M
Maximum power consumption 1200W/sq.m
Average power consumption 640W/sq.m
Driving method 1/10 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP31
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
