5mm
Video Display
1R,1G,1B
1/16 Scan
LED Video Display
IP31
480X480mm
240X240mm
PRT
CE, FCC. ROHS, 3C
8528591090
Full Color
5mm
40,000 dots / m⊃2;
Win XP,Win 2000,Win7/8/10
Stage Performance, Advertising, Shopping Guide
CE, RoHS, CCC, FCC
Die-Cast Aluminum
48X48dots
Flight Case or Wooden Case
Shenzhen

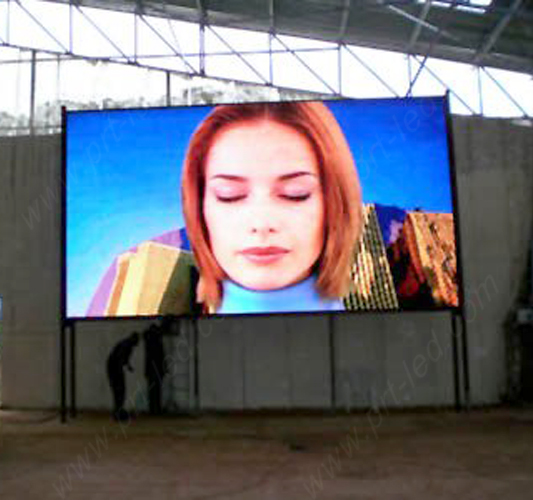

Slim Pixel pitch 5mm rental led display screem with die-casting aluminum panel size of 480x480mm for indoor rental use or permanent fixed install, with high resolution, high contrast ratio and good display performance
1. Die-cast Aluminum material,keep strong configuration and good heat dissipation
2. Small panel size of 480×480mm and with thickness of 60mm only
3. Packed with flight case,easy to move and transportation,better for rental use
4. With fast locks,easy to install and dismantle,save much time and labour cost
5. Seamless splicing,wide view angle, not color change from different ange, good performance
6. This cabinet size also suit to Indoor led display P3.75 ,P4,P4.8 and P5
Please see more pictures for your reference
| Indoor Rental full Color LED Screen Specification | |||||||
| Pixel pitch | 3mm | 3.75mm | 4mm | 4.8mm | 5mm | ||
| Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | ||
| LED component | SMD2121 black | SMD2121 black | SMD2121 black | SMD3528 | SMD3528 | ||
| Size of module | 240mm x 240mm | ||||||
| Resolution of module(Dots) | 80 x 80 | 64 x 64 | 60 x 60 | 50 x 50 | 48 x 48 | ||
| Size of cabinet | 480mm x 480mm x 60mm | ||||||
| Resolution of cabinet(Dots) | 160 x 160 | 128 x 128 | 120 x 120 | 100 x 100 | 96x 96 | ||
| Material of Cabinet | Die-casting Aluminum | ||||||
| Weight of Cabinet | 10.5KGS | 10.5KGS | 10.5KGS | 10KGS | 10KGS | ||
| Brightness | >1500cd/m2 | >1500cd/m2 | >1500cd/m2 | >1500cd/m2 | >1500cd/m2 | ||
| Density | 111111dots/m2 | 71111dots/m2 | 62500dots/m2 | 43402dots/m2 | 40000dots/m2 | ||
| Best viewing angle | 140 /140 | 140 /140 | 140 /140 | 140 /140 | 140 /140 | ||
| Best viewing distance | 3-50M | 3-50M | 3-50M | 4-60M | 4-60M | ||
| Maximum power consumption | 1200W/sq.m | 1200W/sq.m | 1200W/sq.m | 1000W/sq.m | 1000W/sq.m | ||
| Average power consumption | 640W/sq.m | 640W/sq.m | 640W/sq.m | 500W/sq.m | 500W/sq.m | ||
| Driving method | 1/16 scan | 1/16 scan | 1/15 scan | 1/10 scan | 1/16 scan | ||
| Control method | Synchronization | ||||||
| Gray scale | 65536 | ||||||
| Colors | 256*256*256 | ||||||
| Color temperature | 3200-9300k | ||||||
| Uniformity | 97% | ||||||
| Working voltage | AC220V/110V±10% | ||||||
| Working temperature | -20ºC~+50ºC±10% | ||||||
| Working humidity | 10% ~ 90% | ||||||
| MTBF | 10,000 hours | ||||||
| Frame frequence | 50/60Hz | ||||||
| Refresh frequence | >1920Hz | ||||||
| IP grade | IP31 | ||||||
| Life Span | 100,000 hours | ||||||
| Data transafer method | RJ45 | ||||||
| Pratical standard | CCC TUV-CE ETL etc. | ||||||
| Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;Single-mode optic fiber: 10KM | ||||||
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. | ||||||
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development | ||||||
